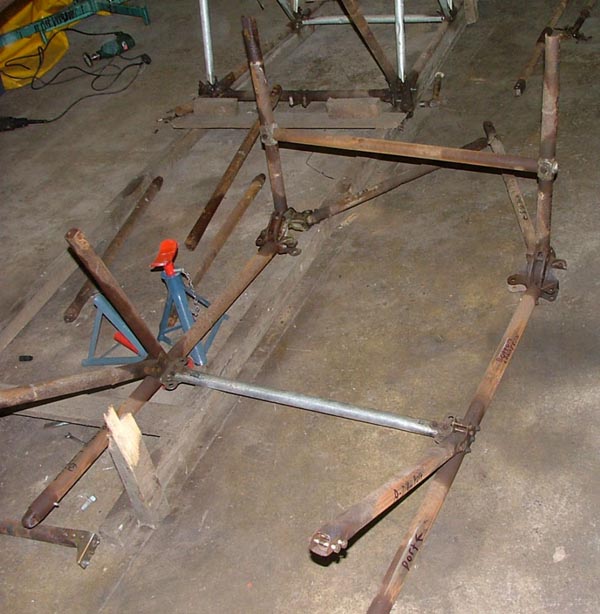

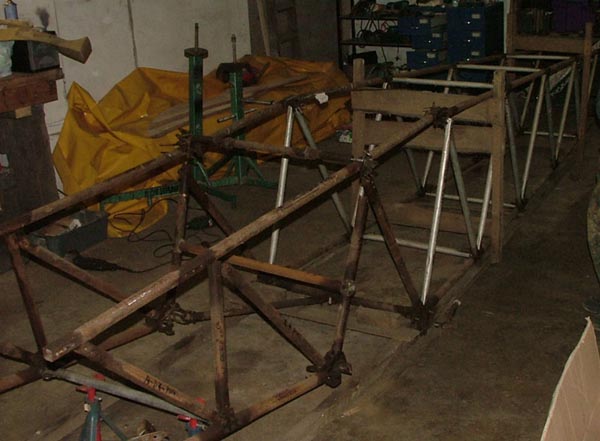

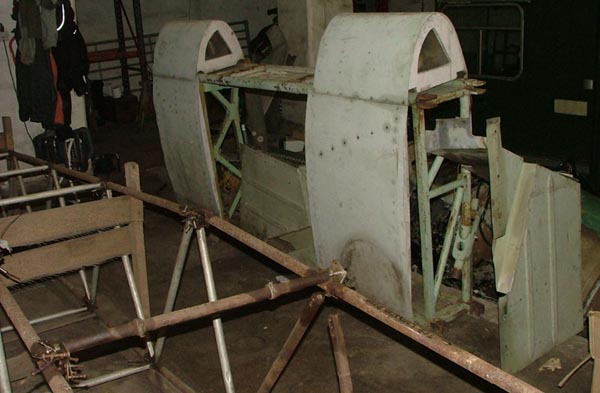

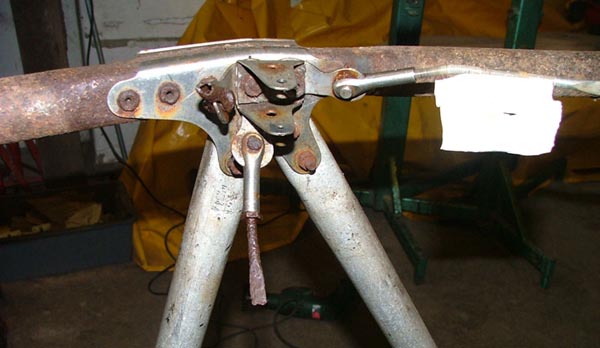

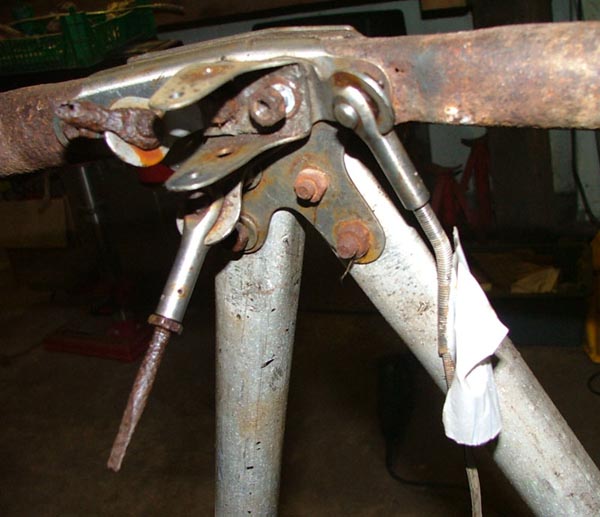

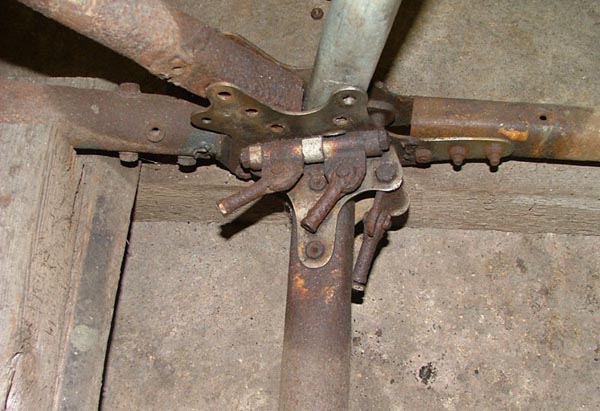

Picture's of all the Hurricane restoration project some
parts are original and some are new manufacture

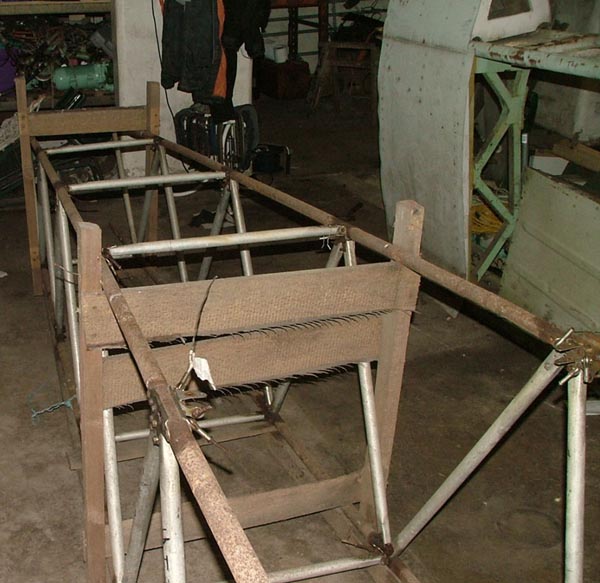

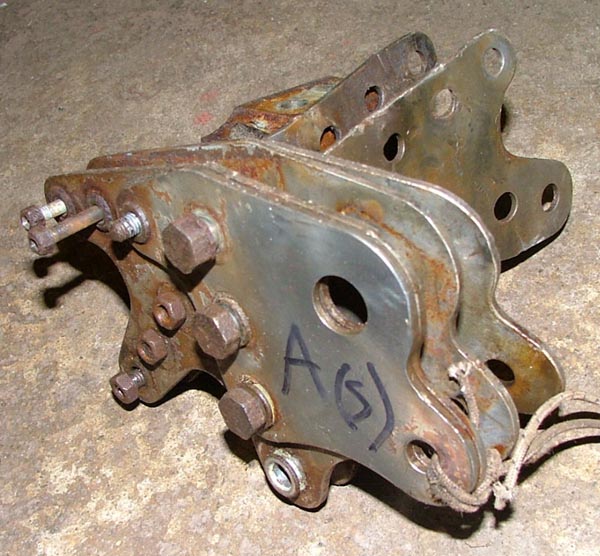

The frame has been carefully taken apart labelled and
bagged.
To complete the frame the
following brackets are required

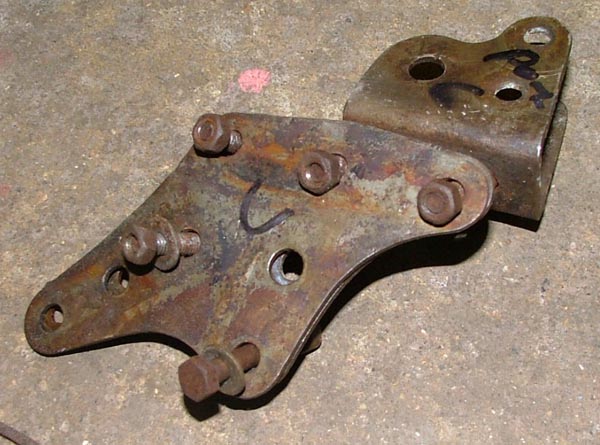

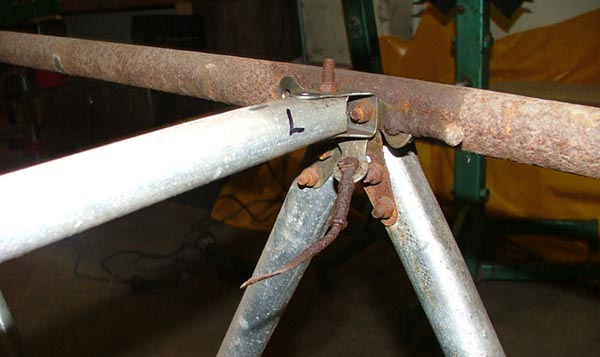

Bracket C port side missing bracket
to take diagonal strut CF and missing plate which takes the fastener for the
tensioning cable. Starboard side missing bracket to take tension cable.

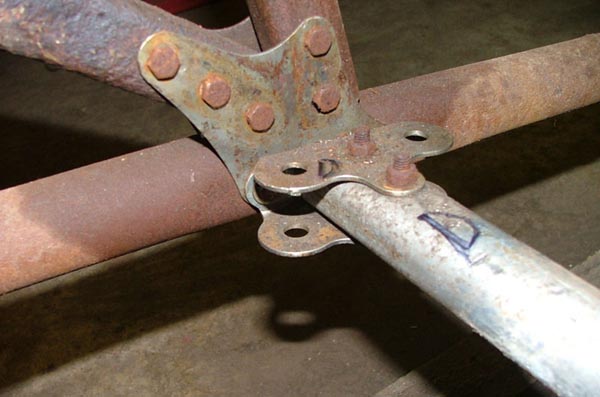

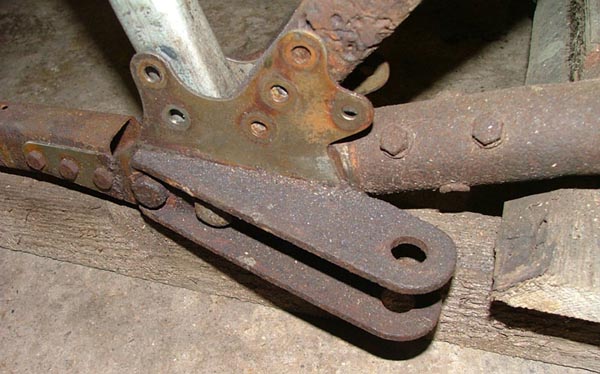

Bracket D port missing bracket to
attach fasteners for tension cable, same for starboard side.
Bracket E Port side
part nos
A57471 2 of
A57470 1 of
A57468 1 of this part number came of
the starboard side we are assuming it’s the same number for the port side.
Bracket F1 missing and required, we
need the two attached rods also.
Bracket FC Port and starboard all
attachments for fasteners of tension cables missing.

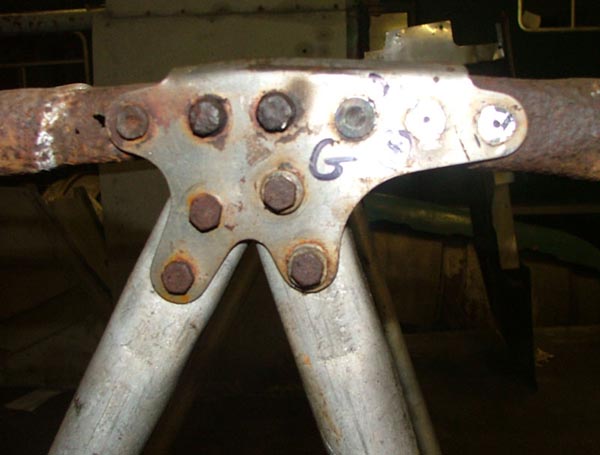

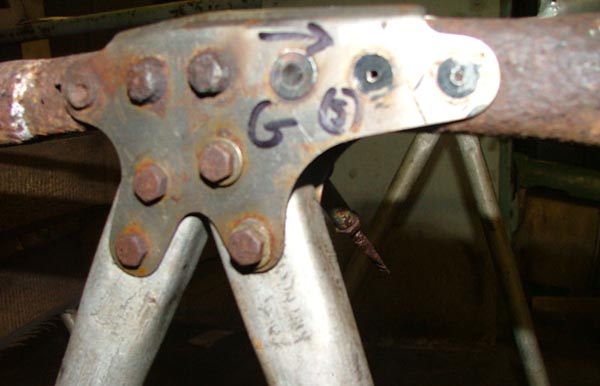

Bracket G Port side A58531 missing
Bracket H Port side all needs
replacing except for casting to take strut that connects to bottom boom to
centre section rear spar. Also missing is casting to take fastener for tension
cable that’s mounted on bottom corner of A70883 (rear facing). Starboard side
A70867-1 need 2 nos.
We have a bracket H1 but it doesn’t
look like the drawing it has a part number of A70962 is it correct if not we are
missing bracket H1. Also there is a connecting bracket on the one we have which
is US and we need another. Cannot see part nos, it’s to shot.
Bracket J Port side.
A58552 need 1 of.
A58561 need 1 of.
Bracket J Starboard side
A58552 need 1 of
Bracket K Port side all needs
replacing apart from A58557-S1
Bracket K starboard side we need 1
bracket which is A58552
Bracket L Port side
Need
A58554. 1 of
A58556. 1 of
A58562-1. 1 of
Bracket L starboard side
A58554. 1 of
A58556. 1 of
Bracket M we have two pieces which
is the correct one to take the tension fasteners for the tension cables? A57852
or A58565
Bracket M A57573 needed for port
side
Bracket N. Port side. We have two
brackets part nos A58554 and A58555 we are not sure that they belong on bracket
N can you confirm?
Need
A70795 broken.
Bracket N Starboard side
Need
A58552 1 of
We have part number A70796-1 which is
OK but does it belong on bracket N. The rest is missing.
Bracket O
We need complete brackets for both
sides.
Bracket P
We need complete bracket for both
sides
Bracket Q
Is complete both sides all OK accept
bottom casting on port side.
Bracket R A71069 missing from
starboard side also no means of attaching forward facing diagonal tension cables
to main brackets. Also no attachments to take back of rear wheel strut support
either side.
Bracket S1 A7465? One is missing,
clamps to front of bottom of bracket, we have one need another.
Bracket used to join the V joint
which holds the top of the rear strut is missing and also the tubes.
Updated
Bracket H. No A70962 is correct. If the 'connecting
bracket' is the small steel one underneath with attachment points for two
rods, then it is 93634 (I assume there is a letter 'A' in front of this, but
in my example it is hidden by a bolt head.)
Bracket J. A58561 is the bracing wire joint from Joint
L. The one for J port is A58558.
A58552, see bracket N stbd.
Bracket M. A57852 is from G port
(Bracing wire plates for M are: port
58562, stbd 58563)
Bracket N (port) A70795 is from the stbd side
Bracket N (stbd) A58552 is from J (see your request at
Bracket J). N stbd is A58556.
A70796 I don't have this item,
but from the numbering sequence it belongs in joint O stbd.
Last entry 'Bracket used to join the V joint
which......', not sure which bracket you are describing here
