Click on
picture to enlarge
£25
|

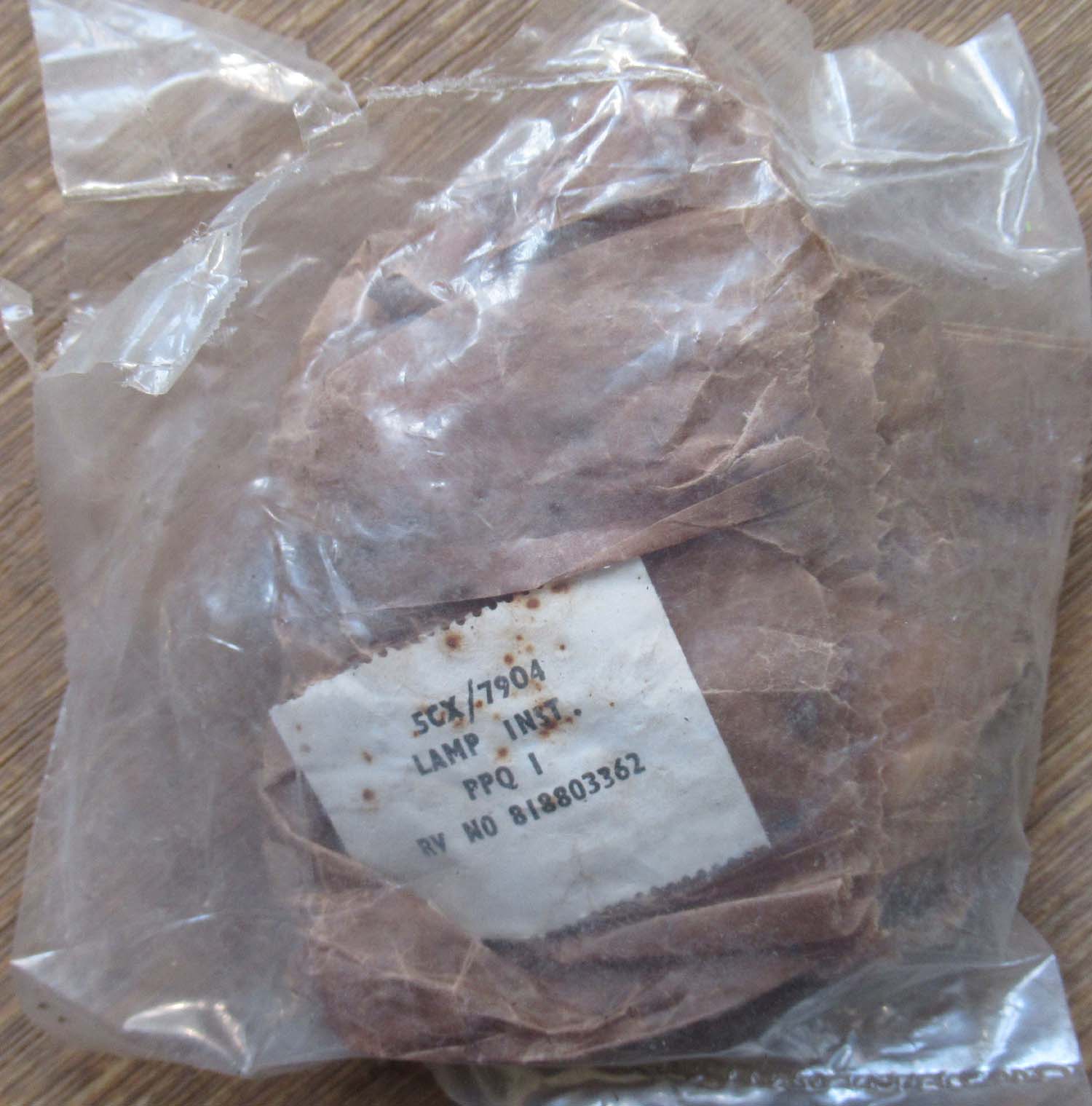

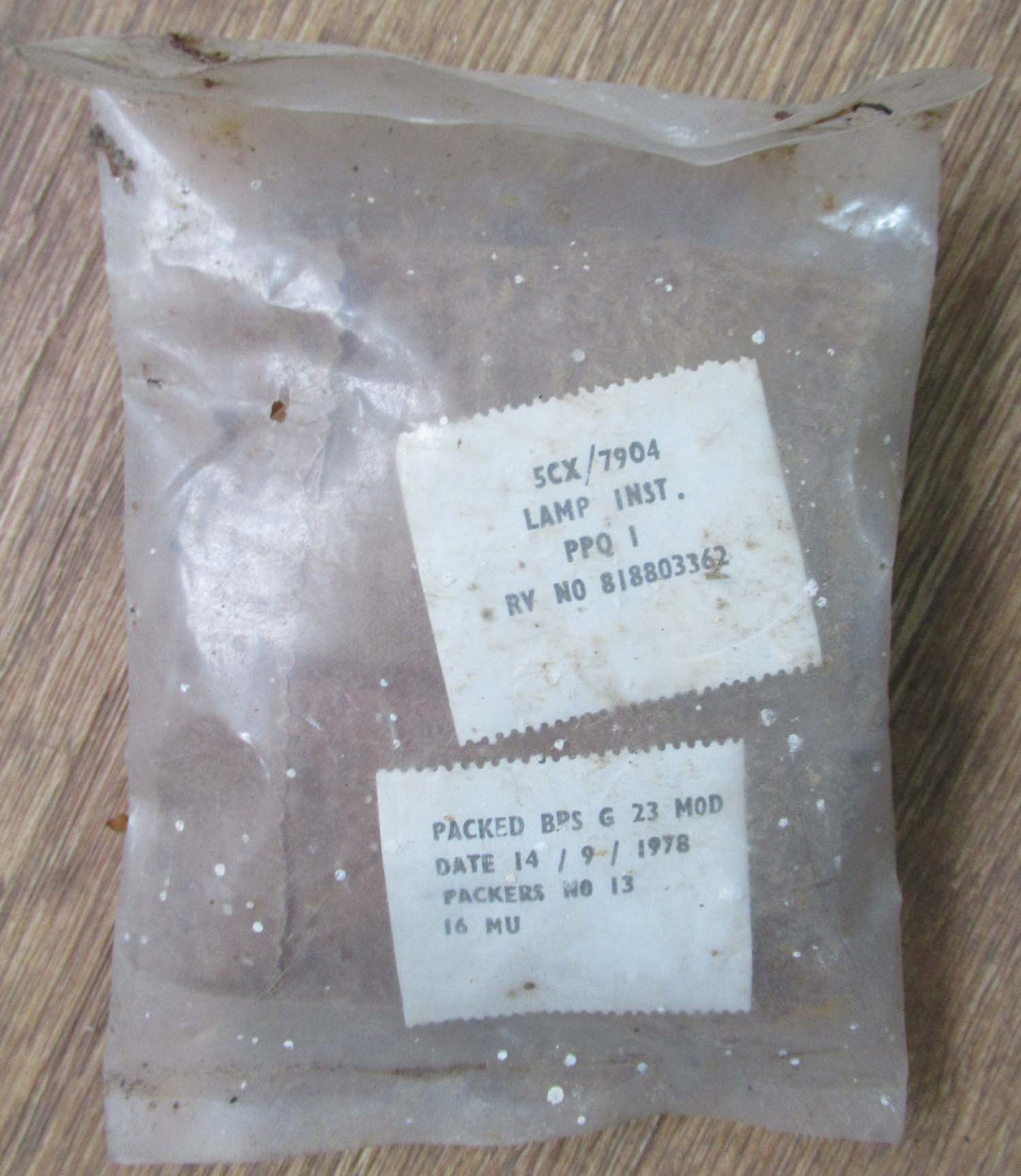

Lamp Instrument 5CX/7904 (No 75 pg1 Light)
In original
condition in packet.
5CX/7904
RV No
818803362
Click on pictures to enlarge
|
|
Click on pictures to enlarge
 |

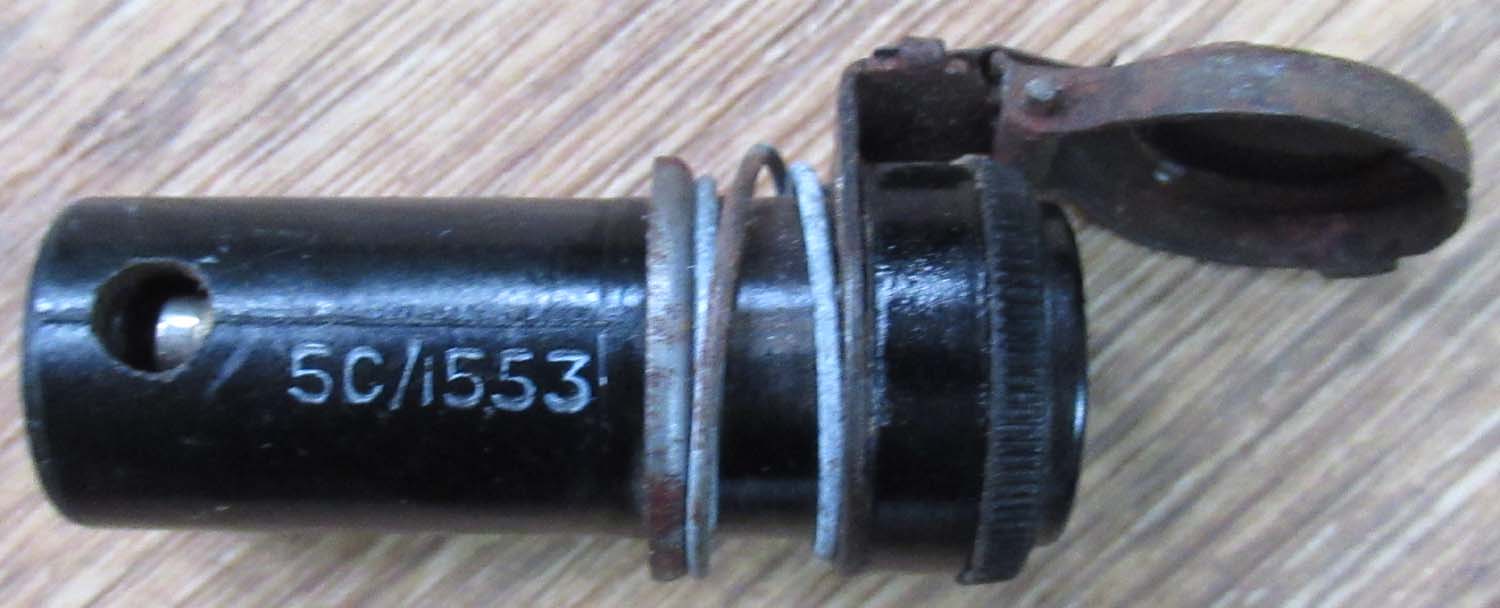

Red Warning
Light Spitfire 5CX/1553 (No 74 pg1 Light)
This is a red warning light used in the main panel of Spitfires for fuel pressure,
supercharger boost warning.
These lights were used
extensively throughout RAF wartime aircraft in including
heavy bombers including the Lancaster.
Ref No: 5CX/1553
Click on pictures to enlarge
£25 each
|
|
Click on pictures to enlarge
£30
|

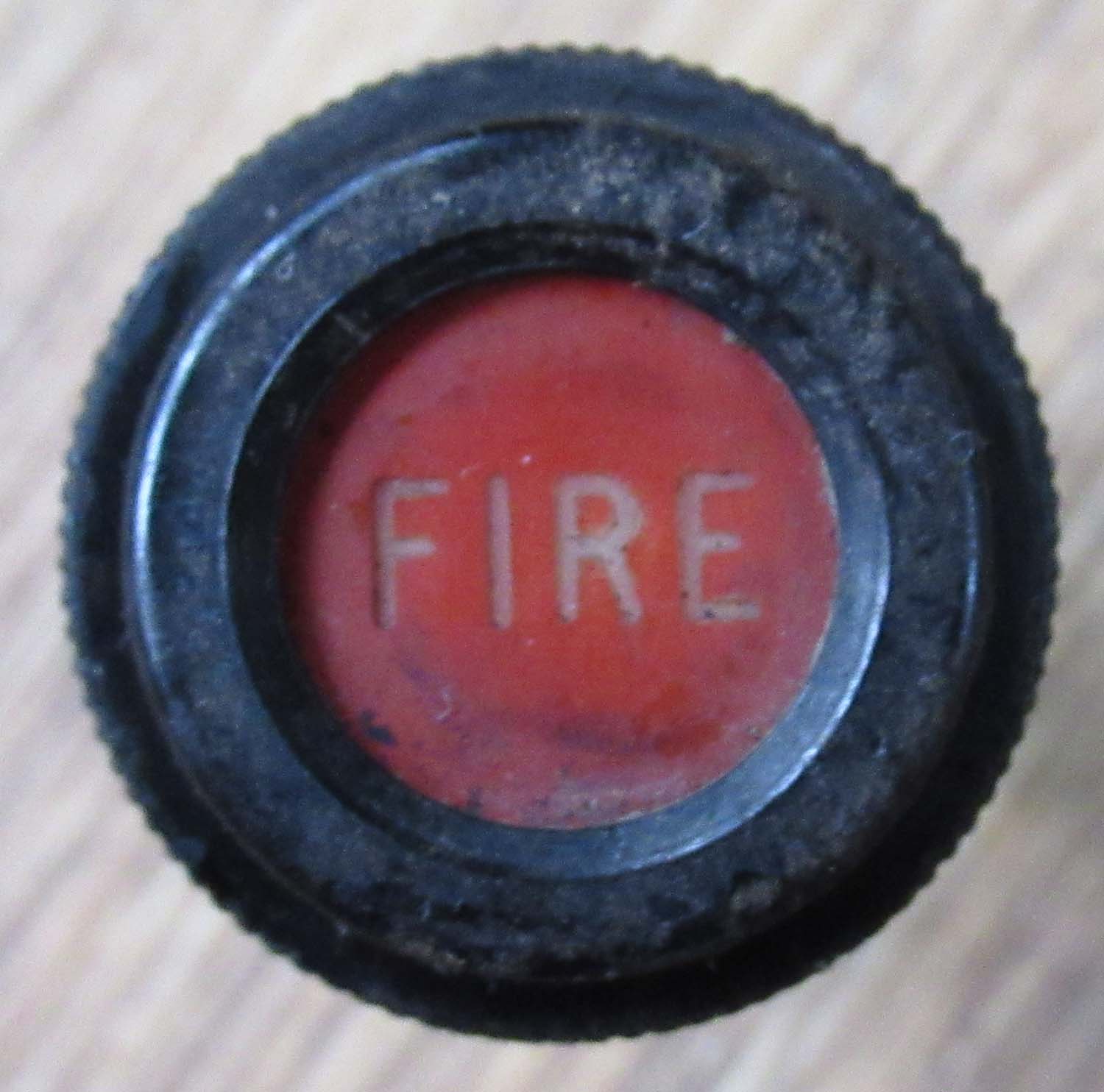

FIRE Red Warning
Light Spitfire 5CX/1069 (No 74 pg1 Light)
This is a red warning light used in the main panel of Spitfires for fuel pressure,
supercharger boost warning.
These lights were used
extensively throughout RAF wartime aircraft in including
heavy bombers including the Lancaster.
Ref No: 5CX/1069
Click on pictures to enlarge
|
|
Click on pictures to enlarge
|

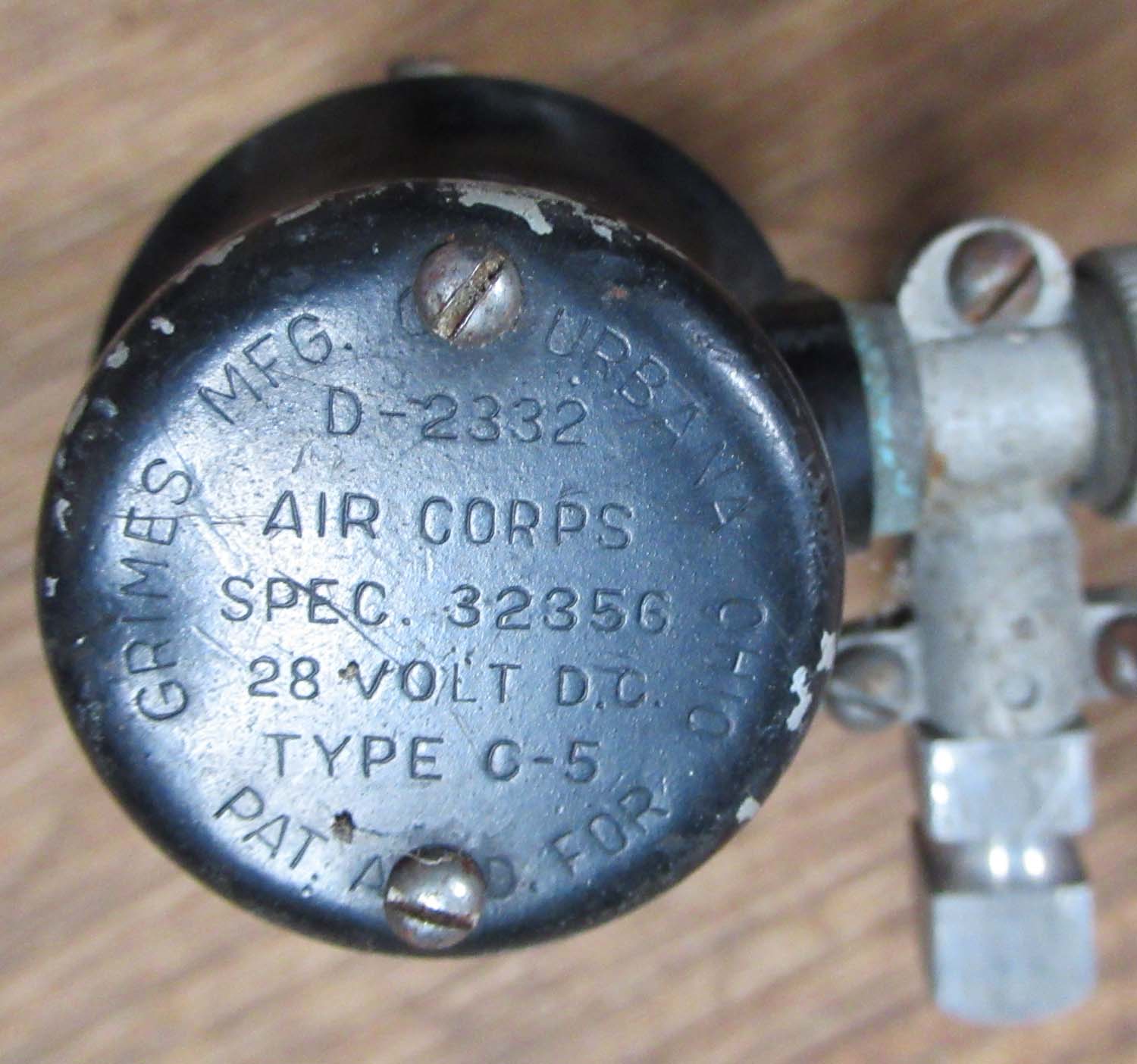

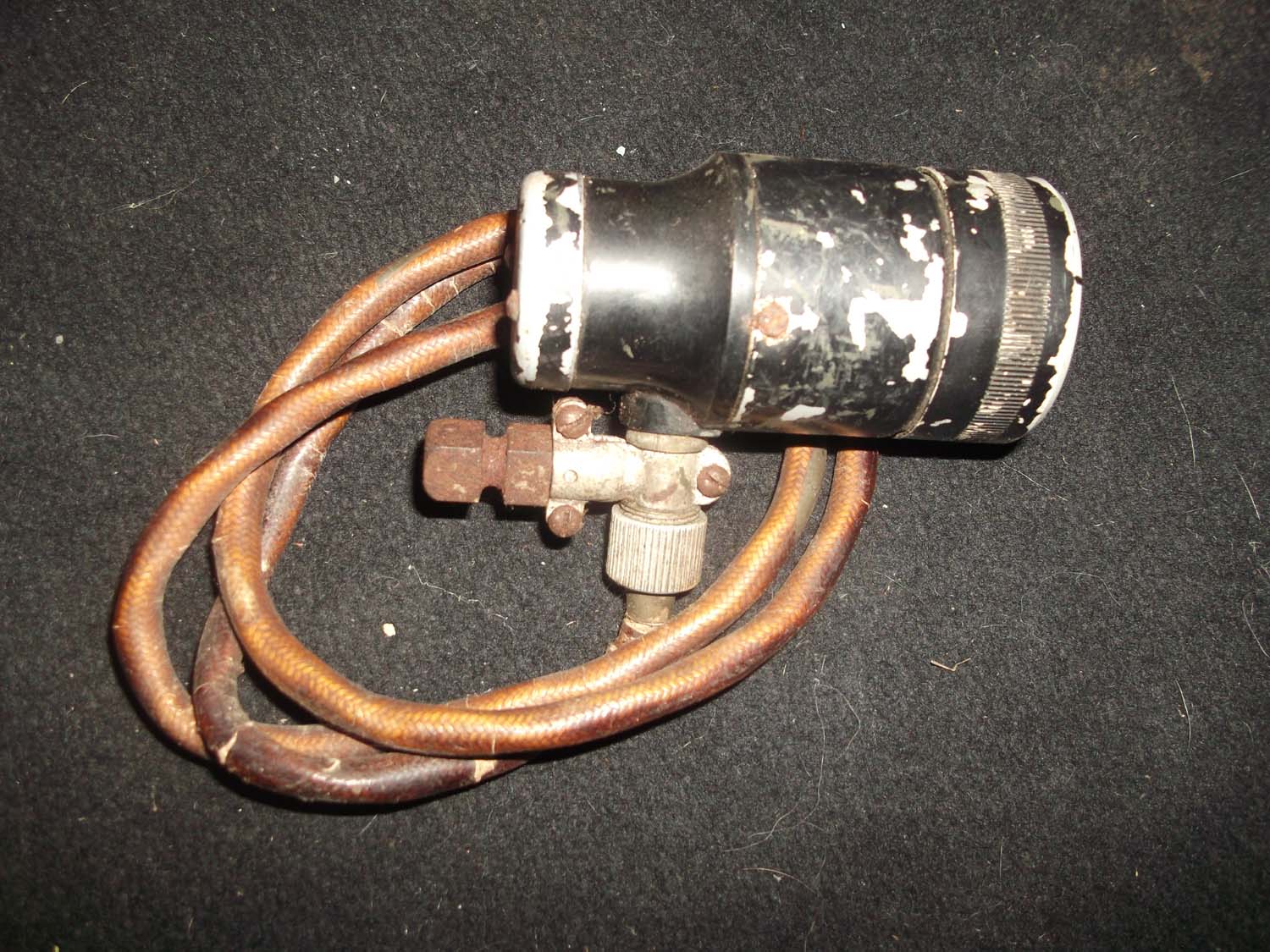

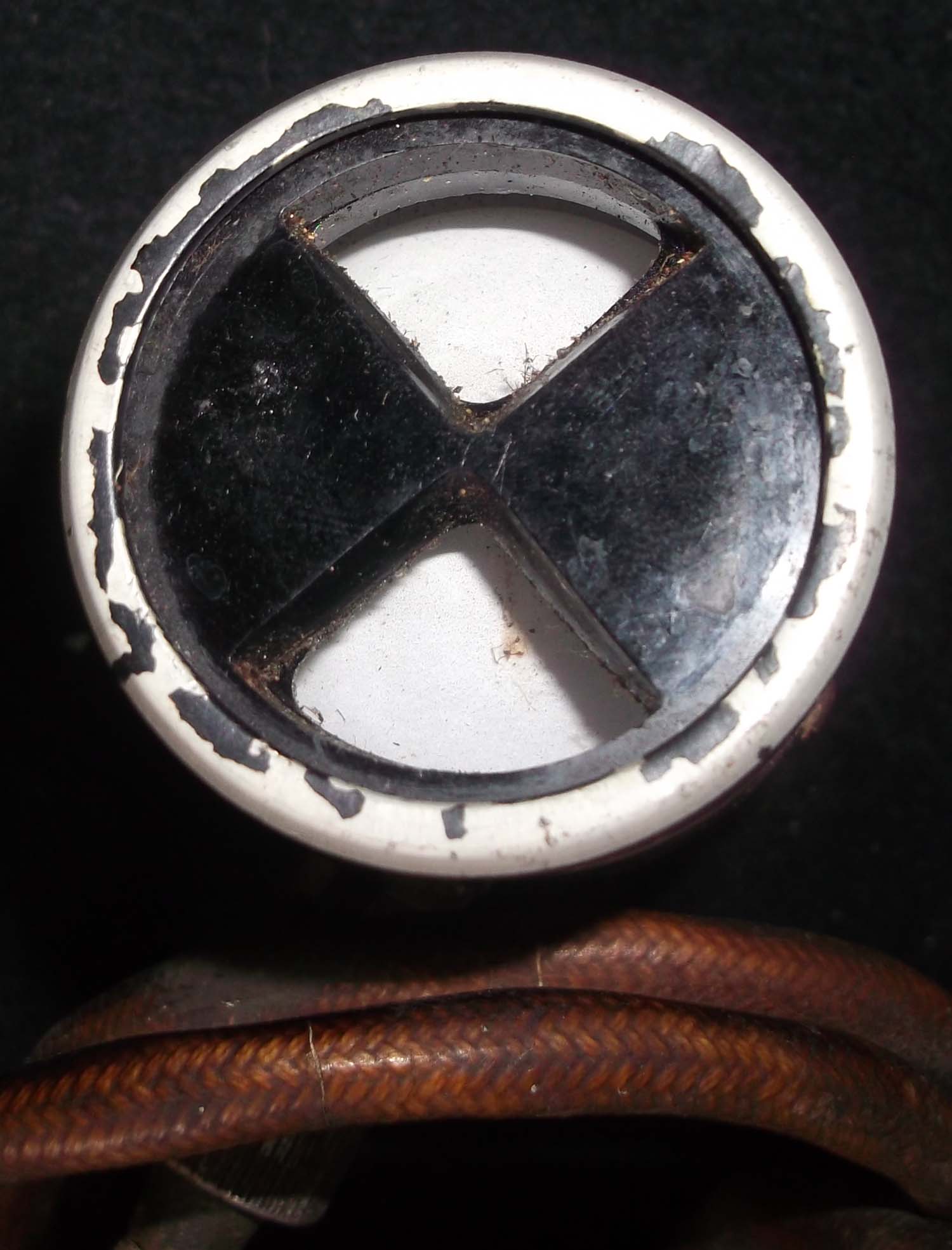

USAAF Grimes
Cockpit light Type C - 5 Light (No 73 pg1 Light)
This is a cockpit
light made by Grimes of Ohio. Used in US built aircraft in
WWII.
28 volt.
Ref No:
D - 2332
28
Volts
Type
C-5 Click on pictures to enlarge
£75
|
|
Click on pictures to enlarge
|

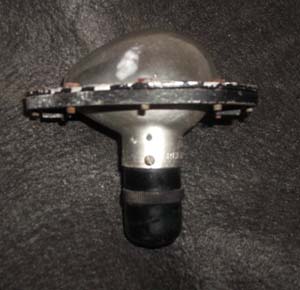

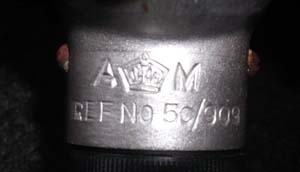

Wartime Morse Light (No 72 pg1 Light)
This was
fitted behind the cockpit on the top fuselage of the
Spitfire, probably lots of other applications.
Nice air ministry crown denotes that this part was manufactured
before the end of 1943.
These were used to flash Morse to
other Fighters in the squadron operating from the Morse key
in the cockpit thus allowing communication whilst retaining
radio silence.
Comes in original
box with label.
Ref No:
5C/909 Click on pictures to enlarge
£65
|
|
Click on pictures to enlarge
£65
|

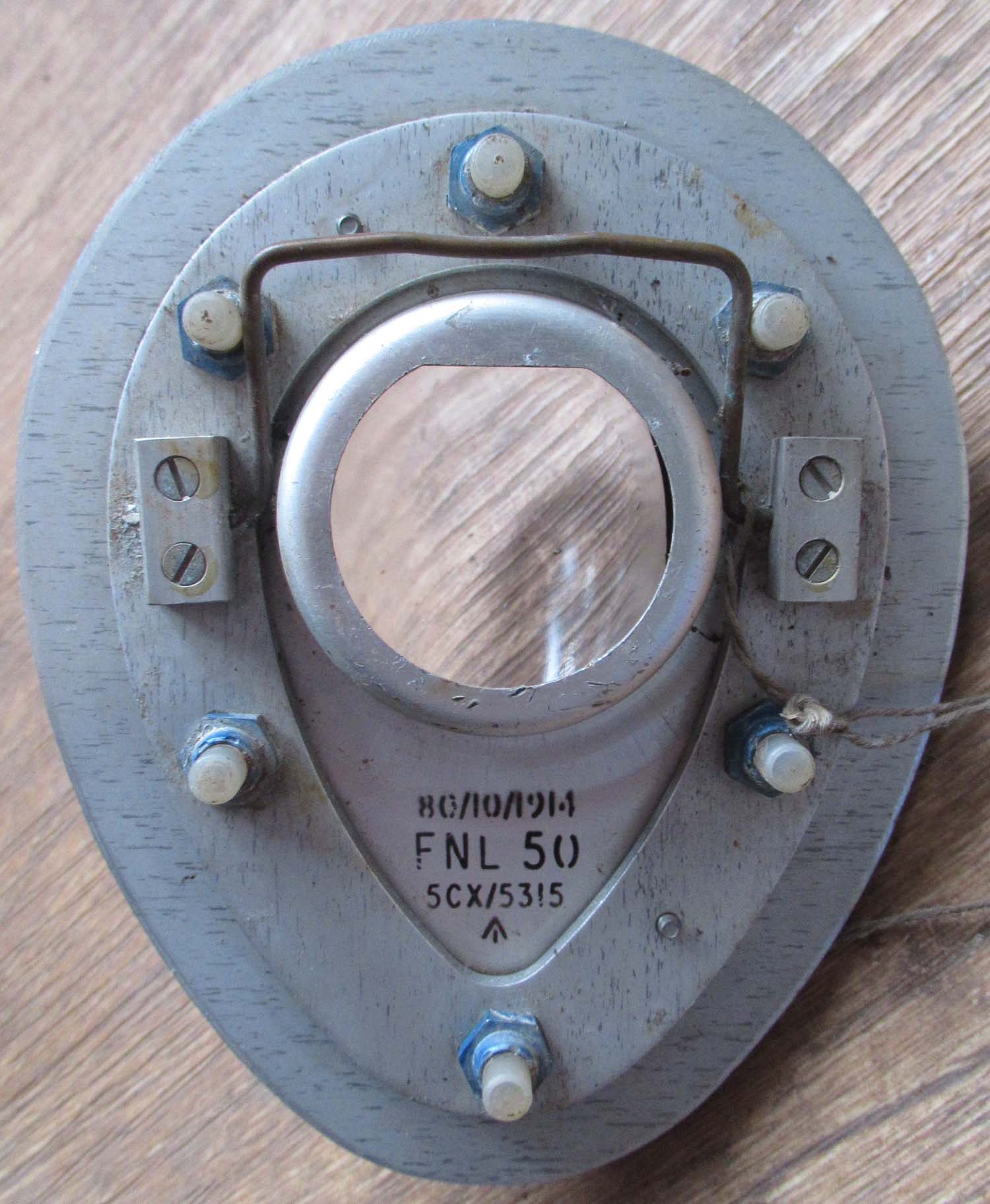

Light 5CX/5315 (No 71 pg1 Light)
Ref No: 5CX/5315 Click on pictures to enlarge
|
|
Click on
pictures to enlarge
|

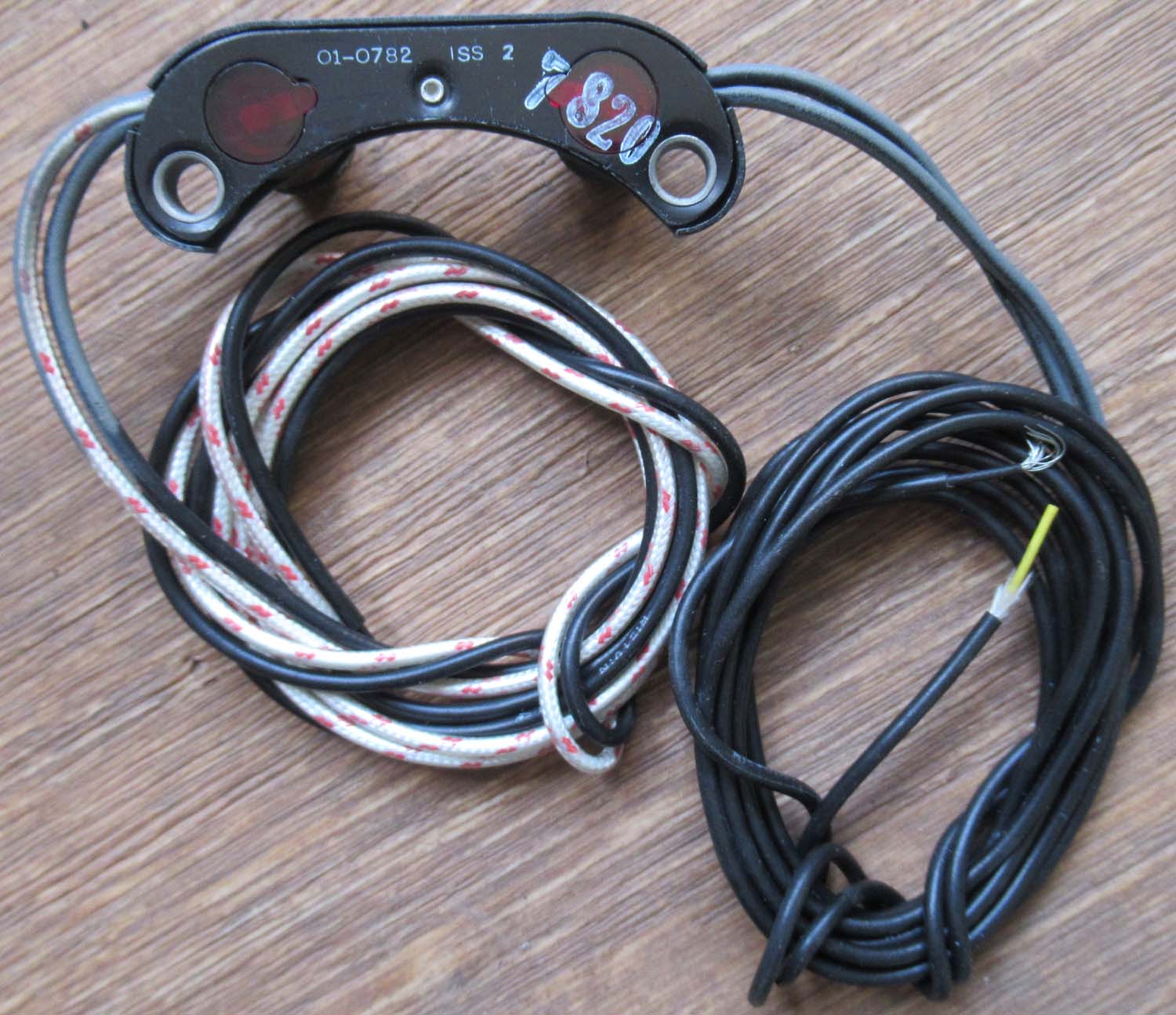

RAF Phantom UV
cockpit lamp (No 70 pg1 Light)
Not the
sort of thing I would usually list but the Phantom has a
special place in my heart as a young child I saw them flying
overhead operating out of FAA Yeovilton.
An
aircraft used extensively in action including the Vietnam
war.
New/ old
stock
5XC/5135
Click on
pictures to enlarge
£25 each three
available
|
|
Click on
pictures to enlarge
 |

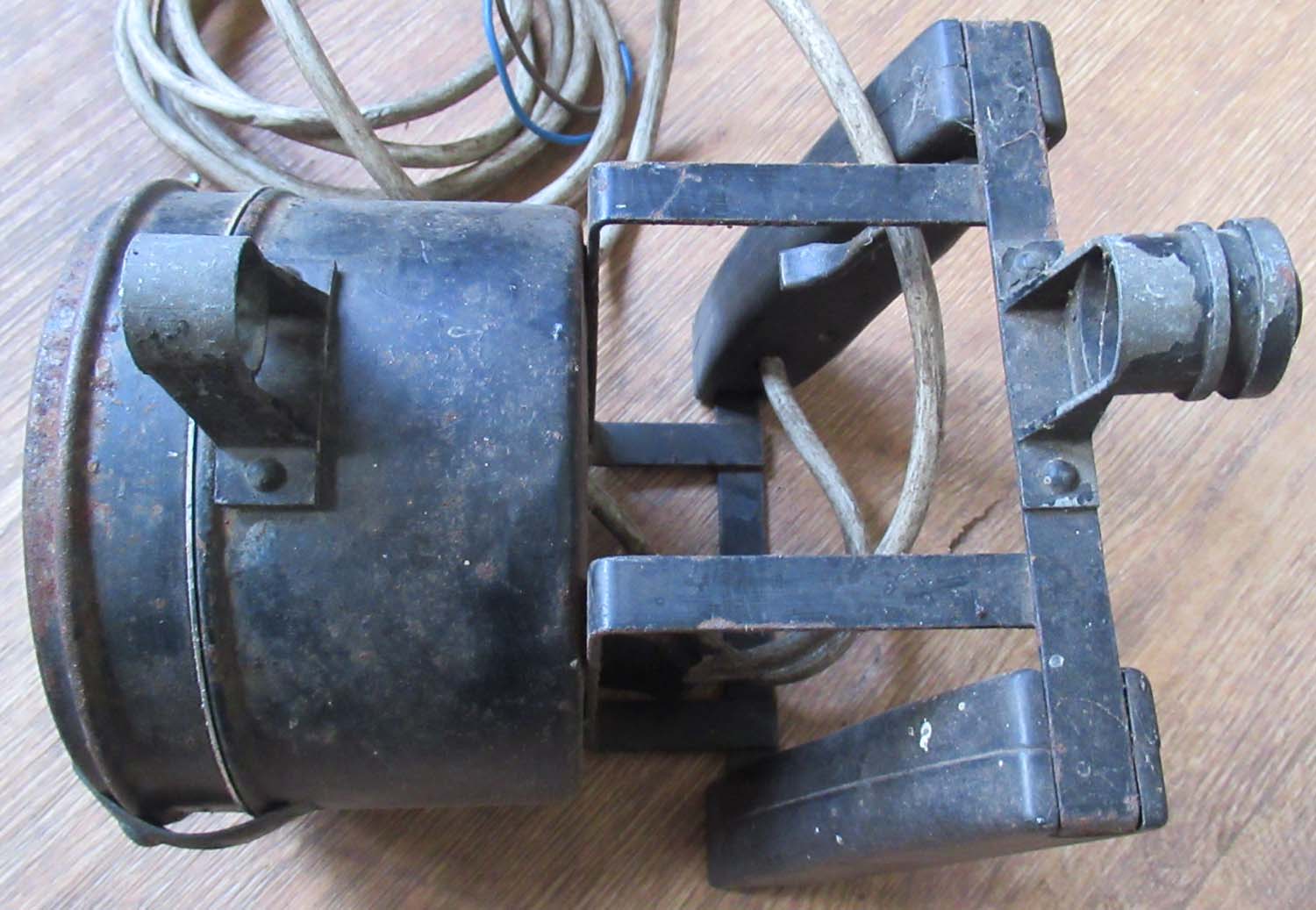

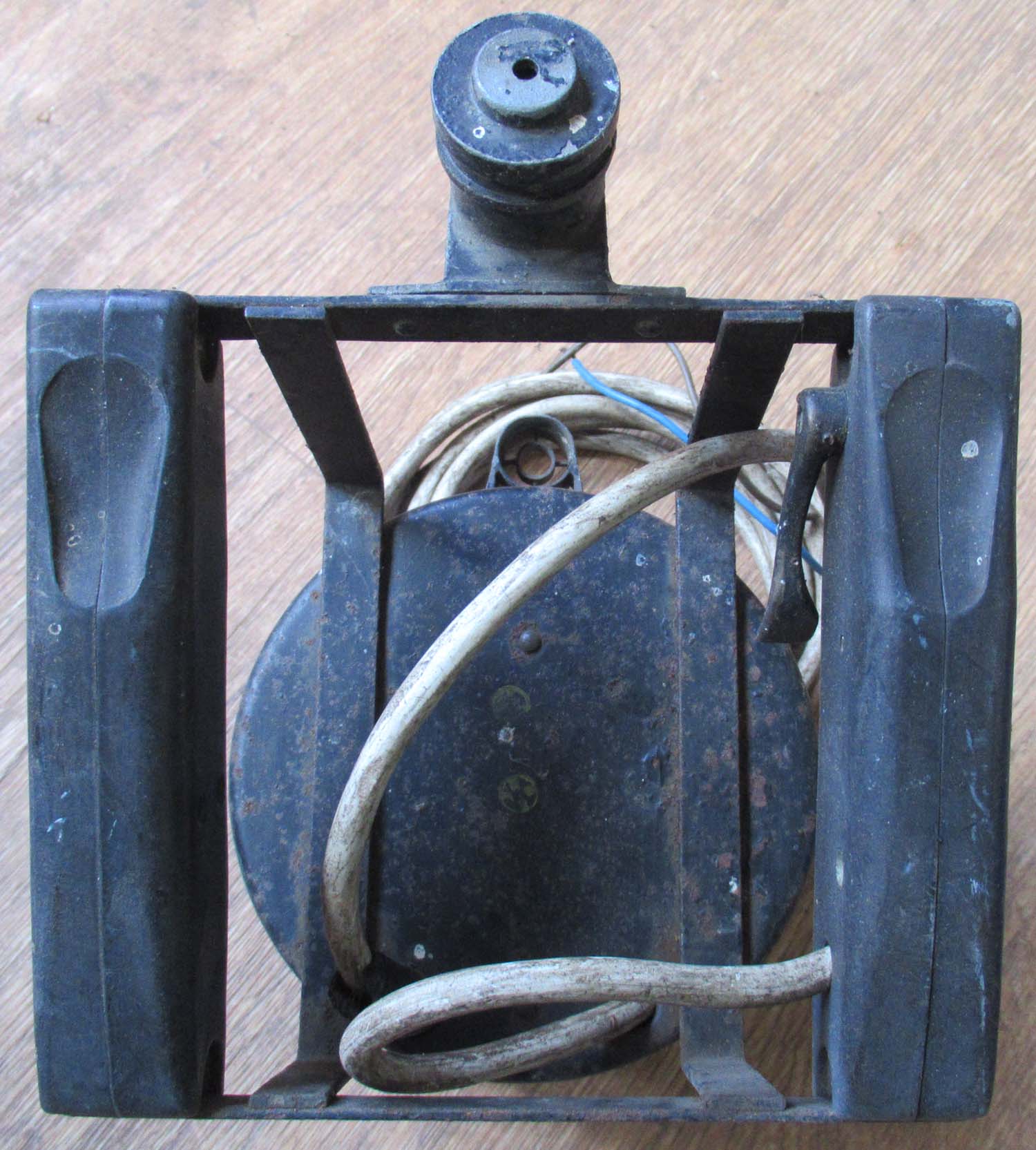

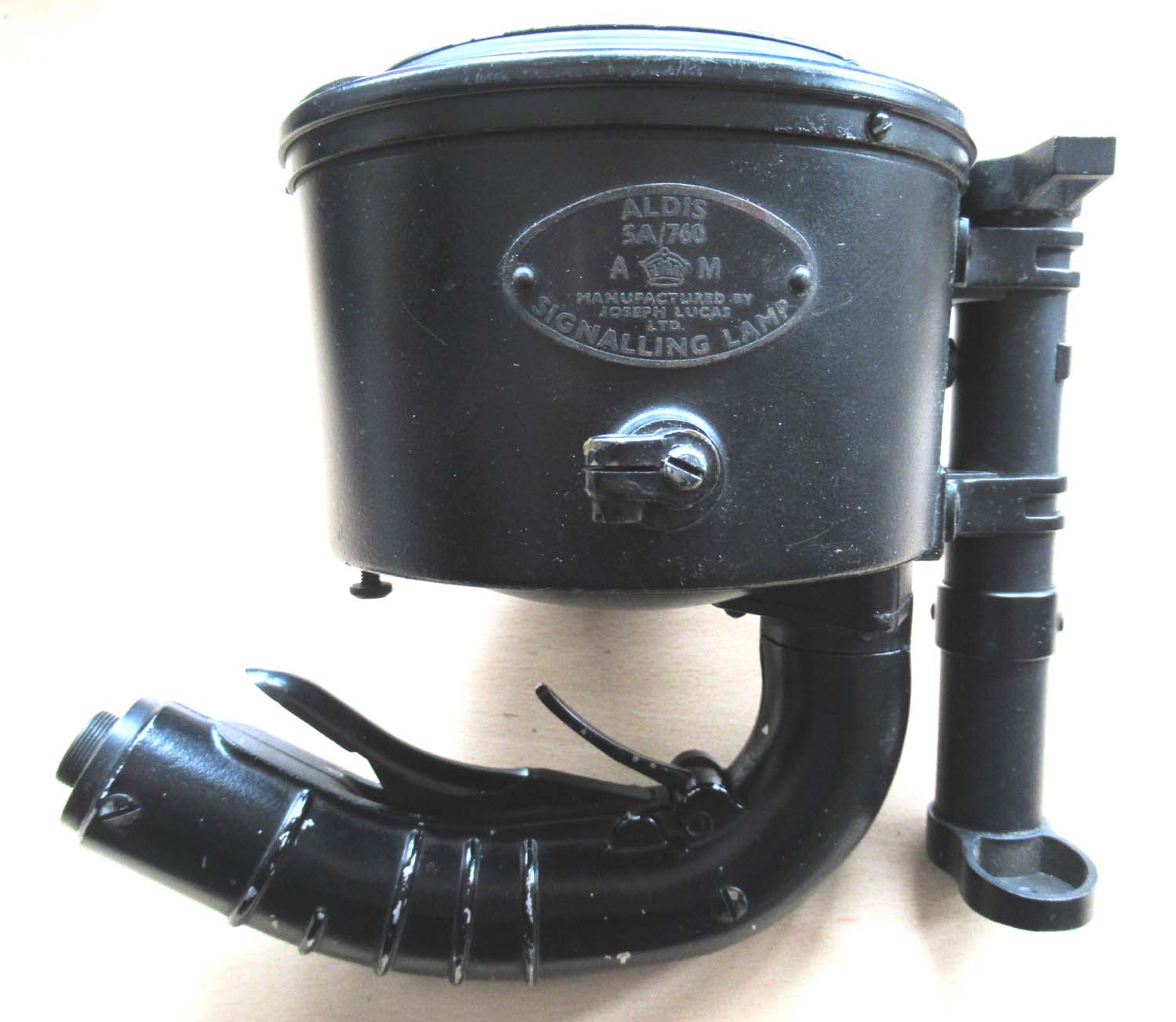

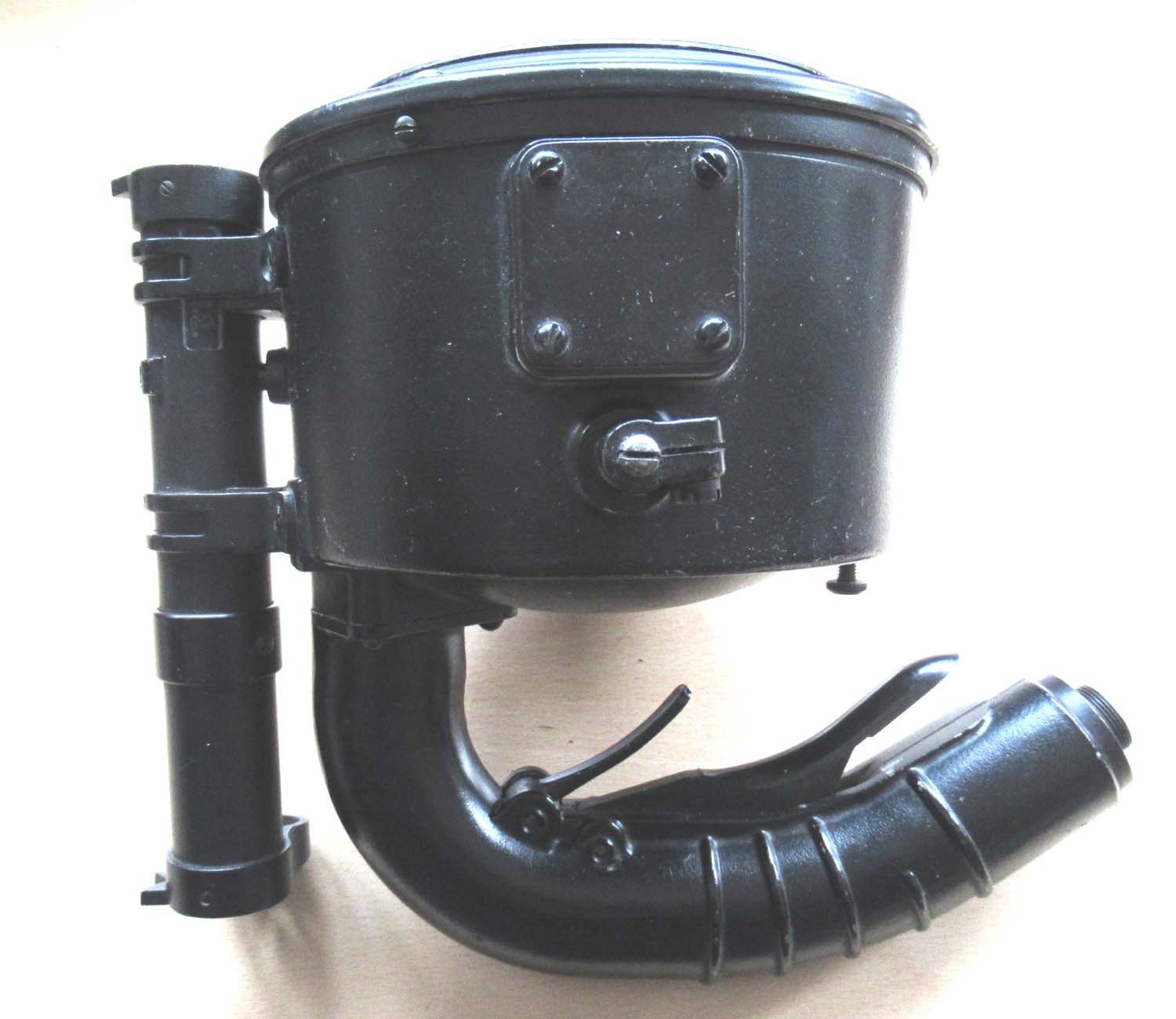

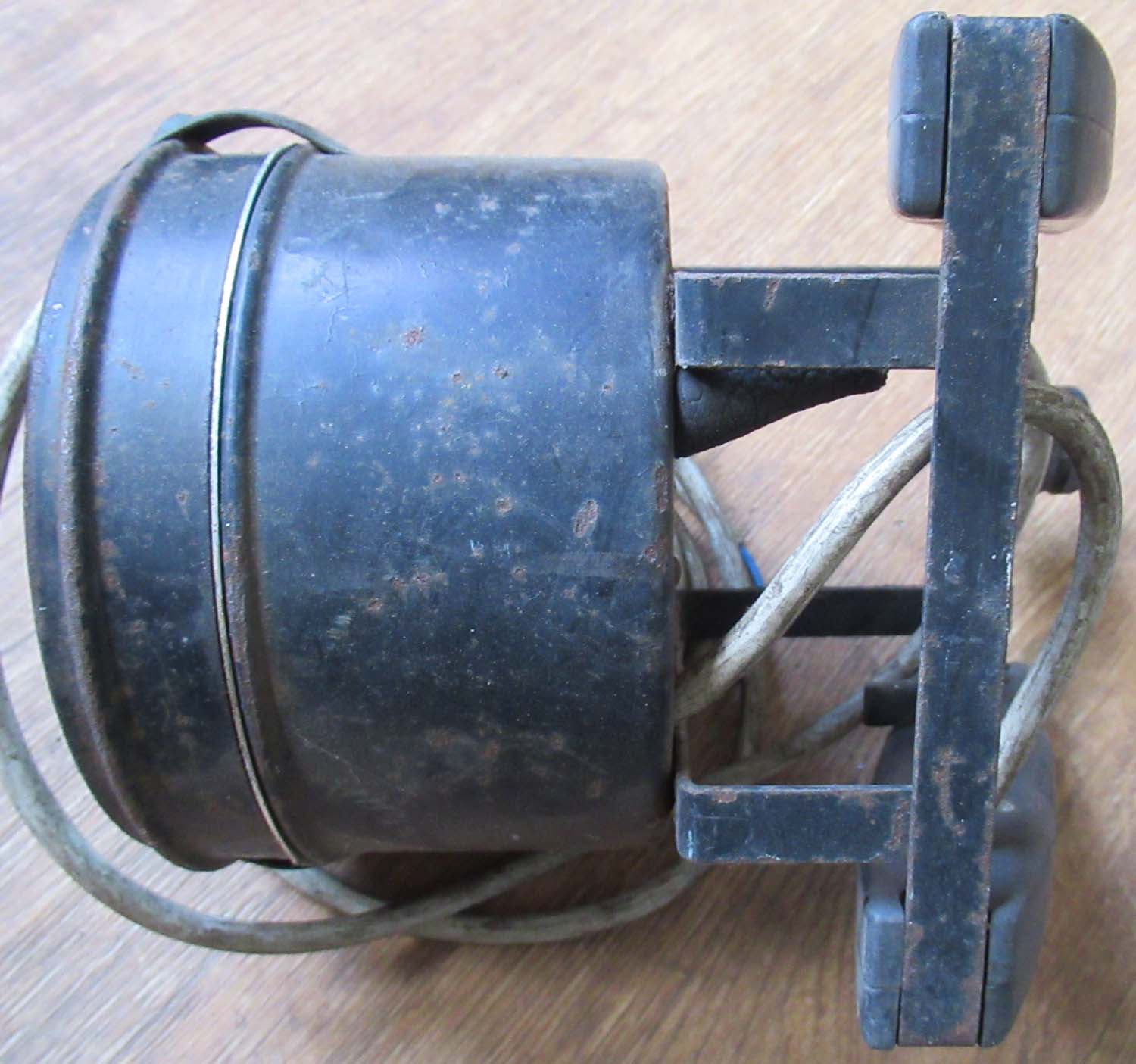

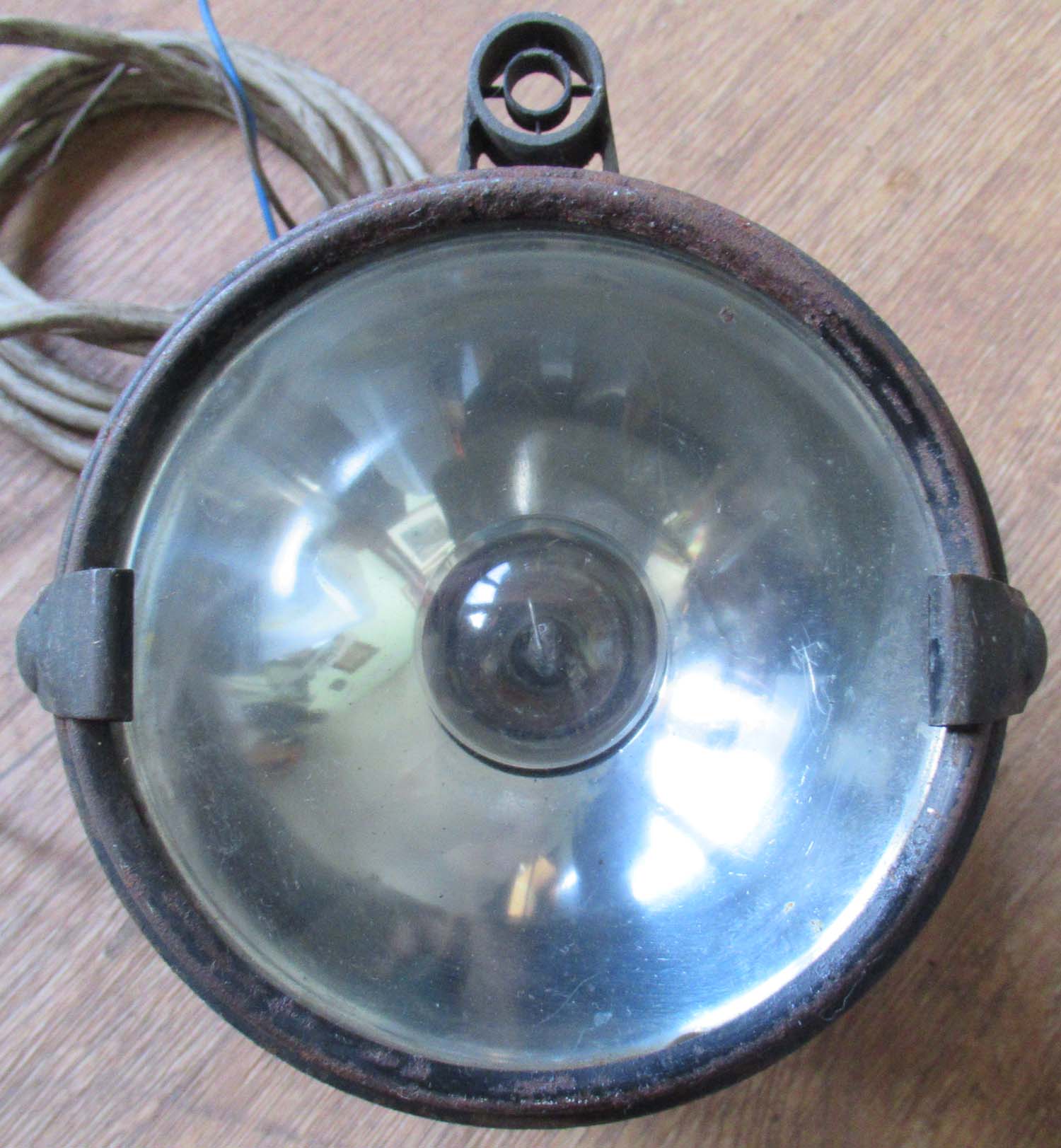

RAF signal lamp (No 69 pg1 Light)
Here we have a nice example
of an RAF signal lamp used by Bombers in formation to
maintain radio silence on bombing missions, they could
signal to each other using Morse code. I have tested in on
12 volts and it works perfectly as it should.
Of coarse this was
designed to use 24 volts as Bombers used this voltage rather
than the 12 volts used in fighters.
The sighting ring at the top
allows the crew member to target the aircraft he is trying
to signal.
Fighters used a similar
system but not having the room or free hands this was done
using a fixed light on the top of the fuselage, you can see
this type of light listed further down on this page.
Click on
pictures to enlarge
£125
|
|
Click on
pictures to enlarge
 |

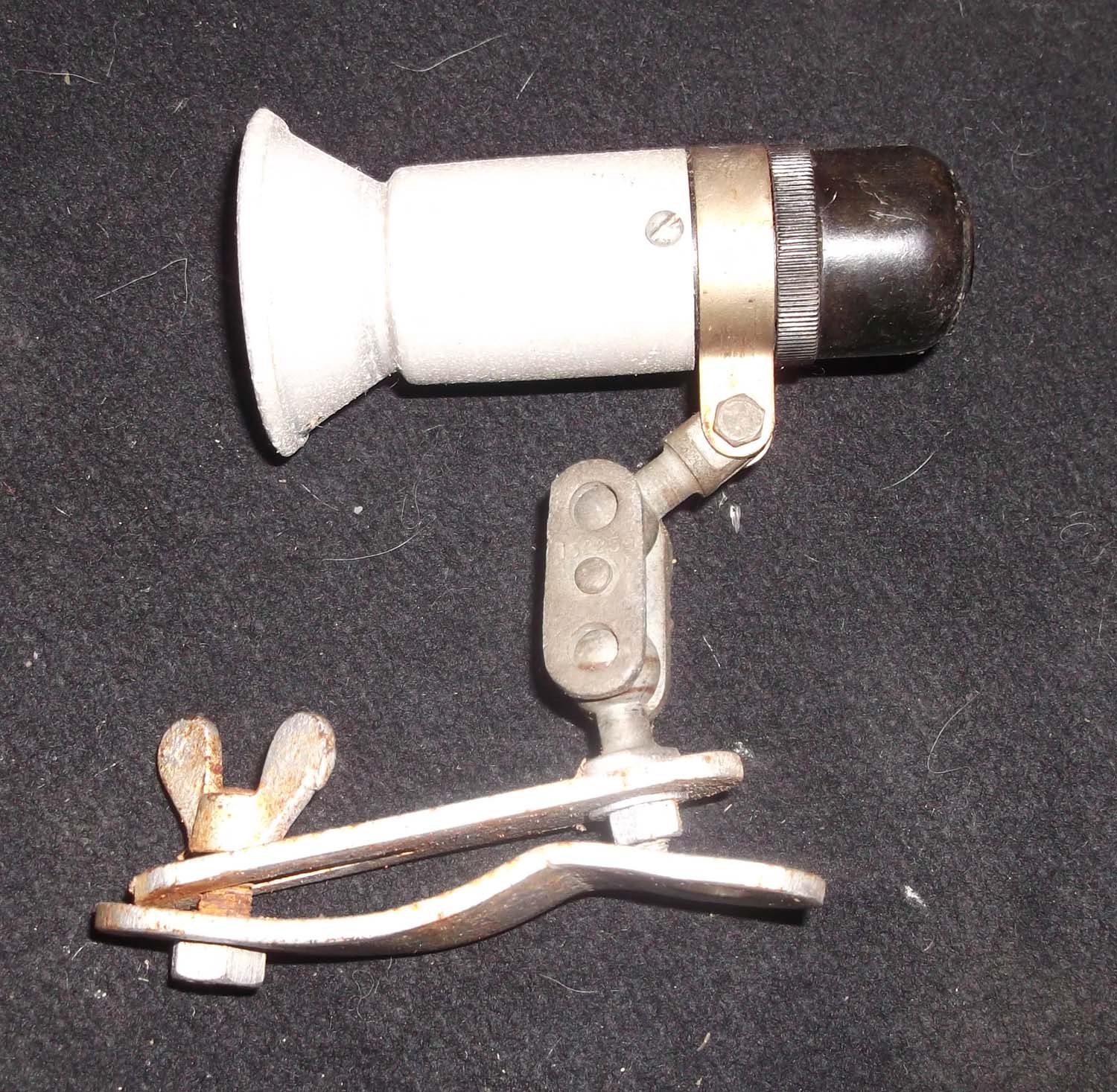

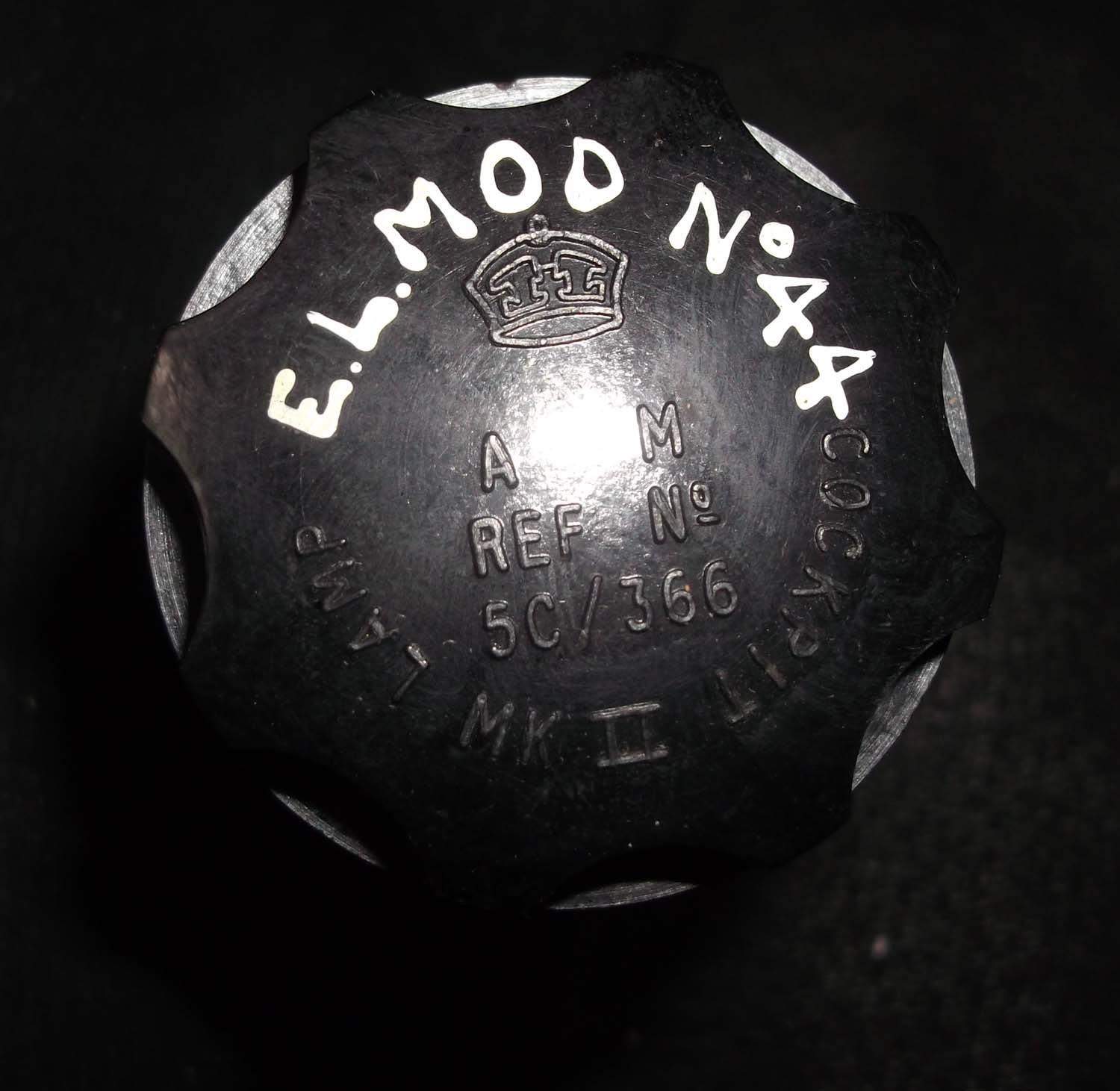

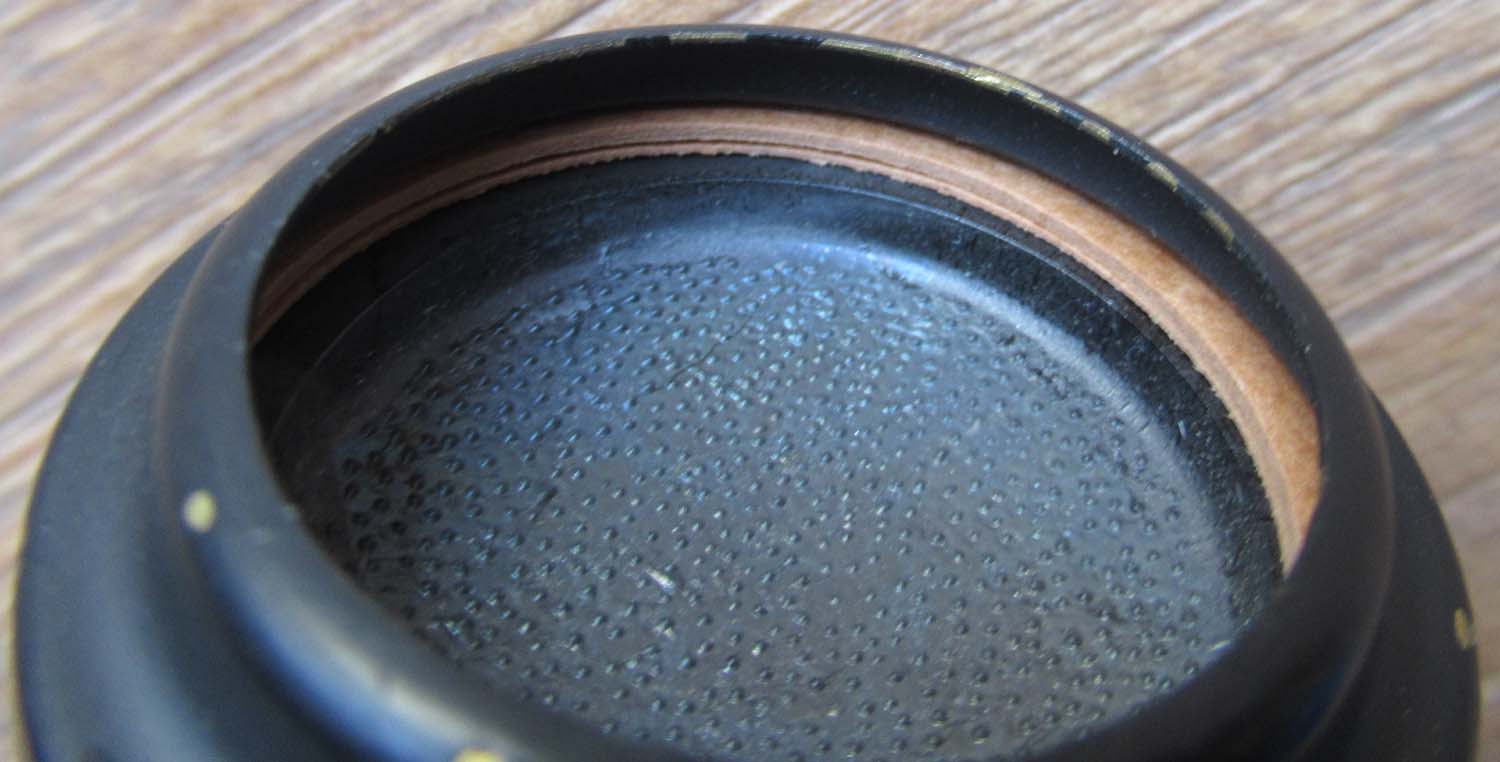

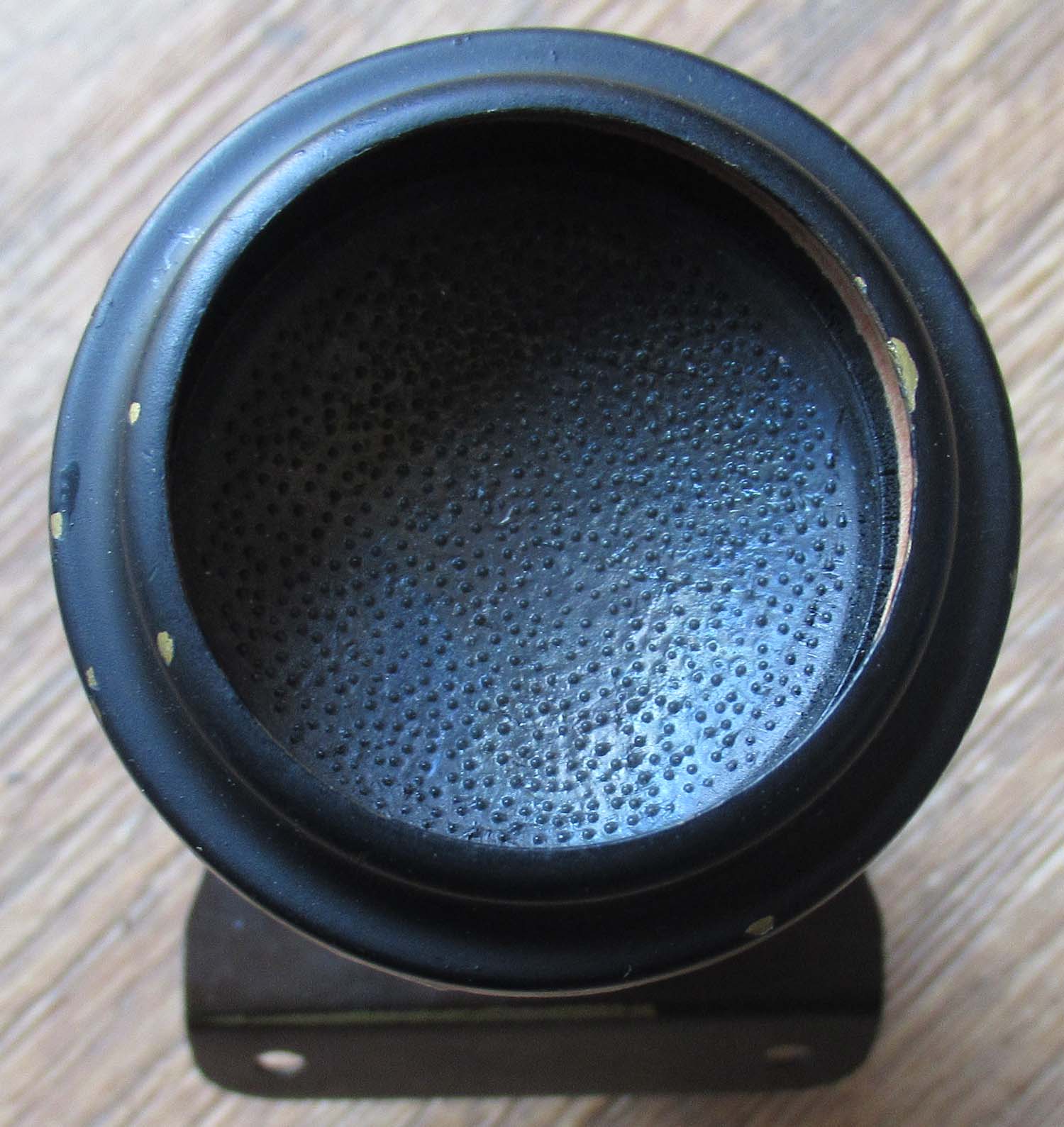

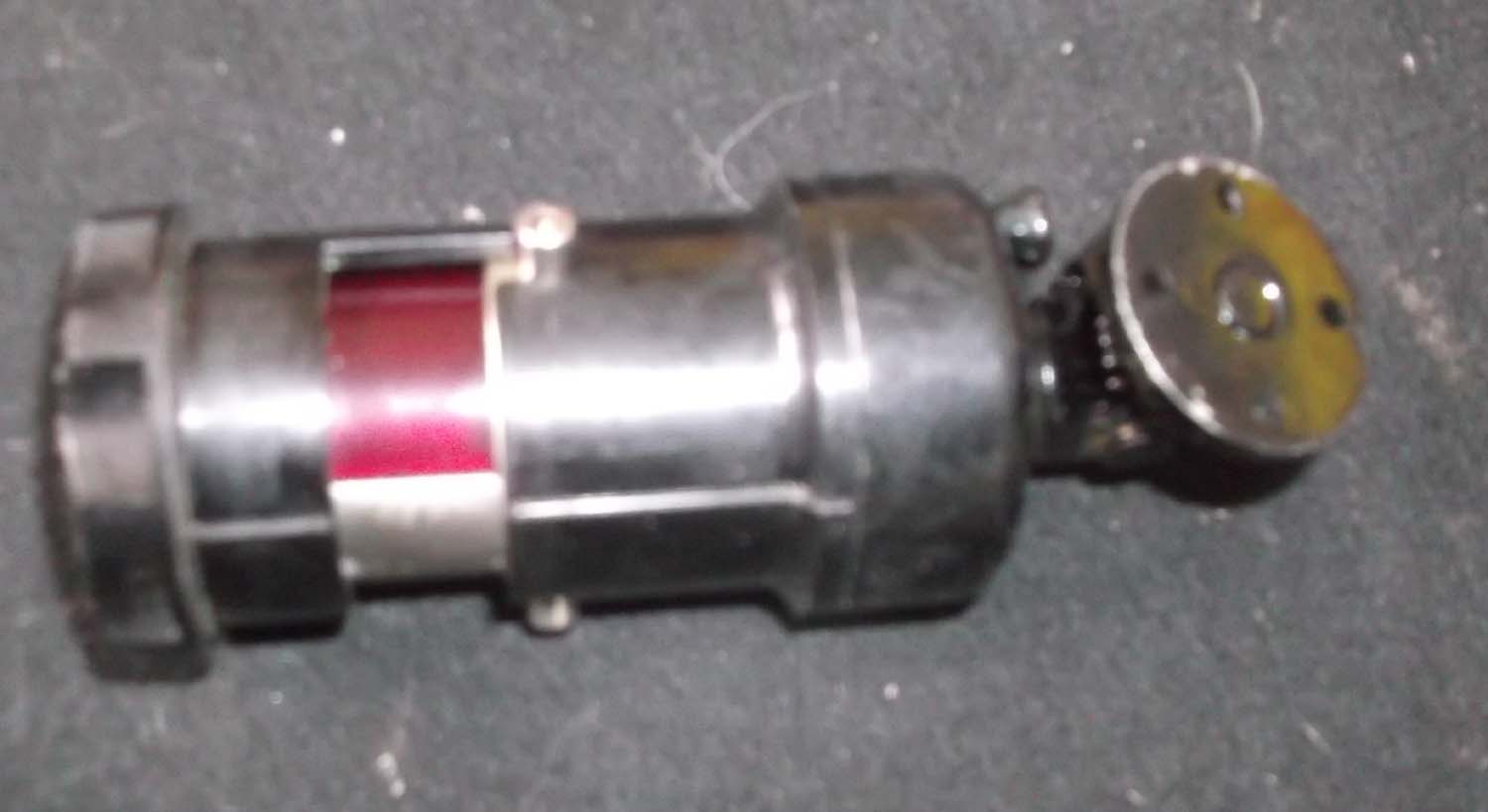

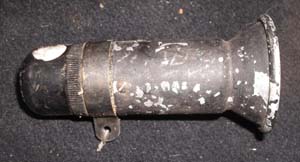

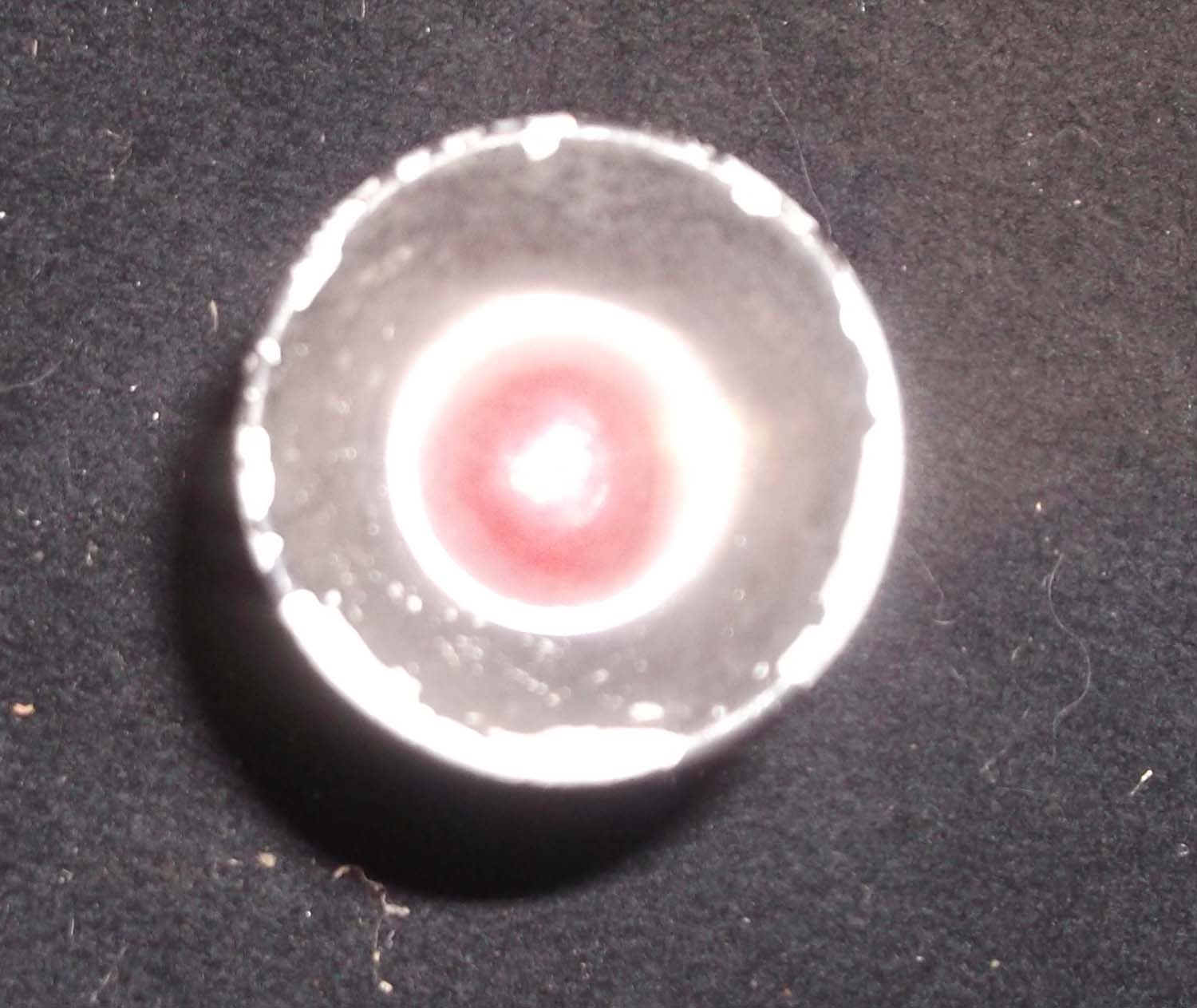

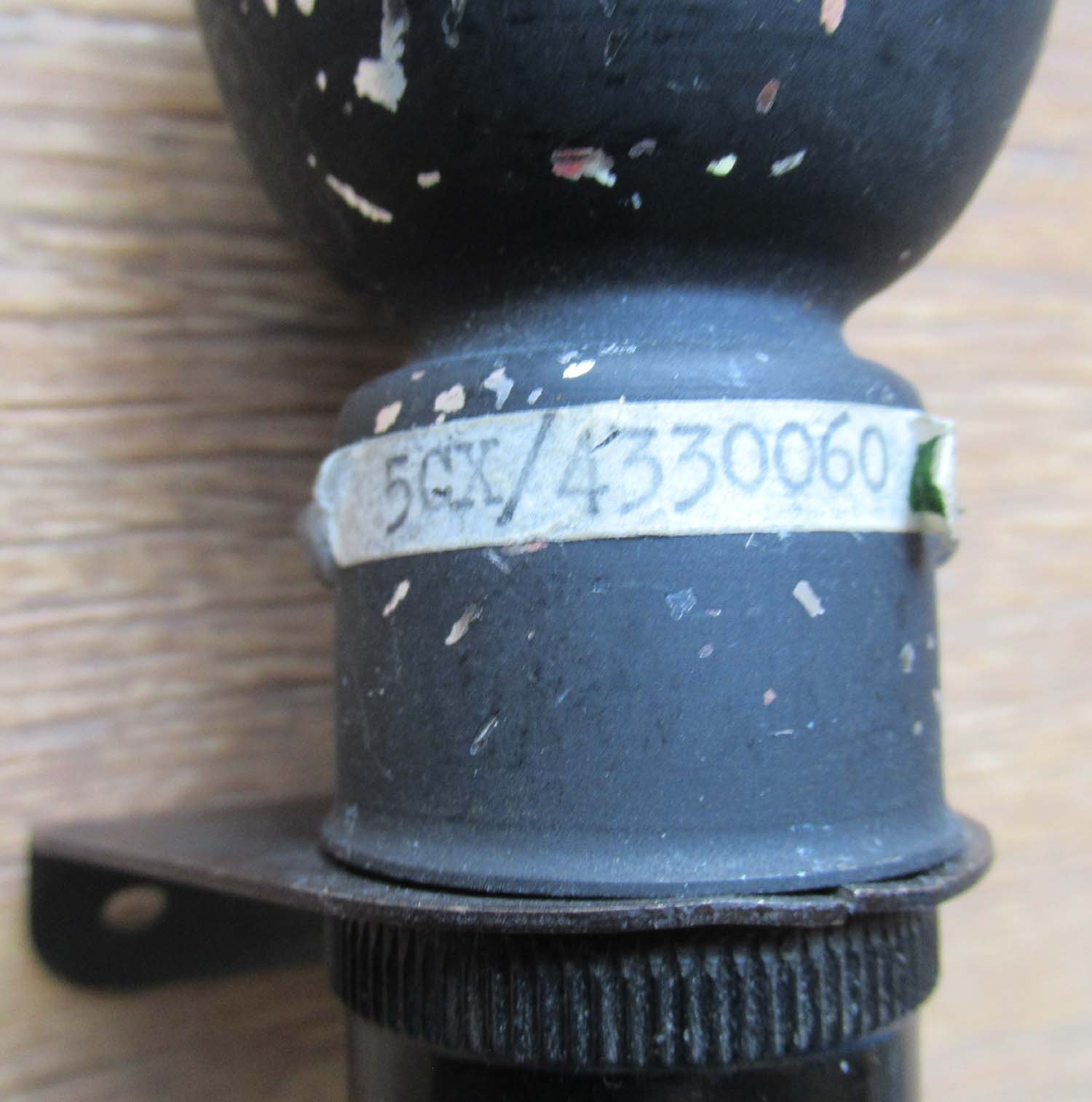

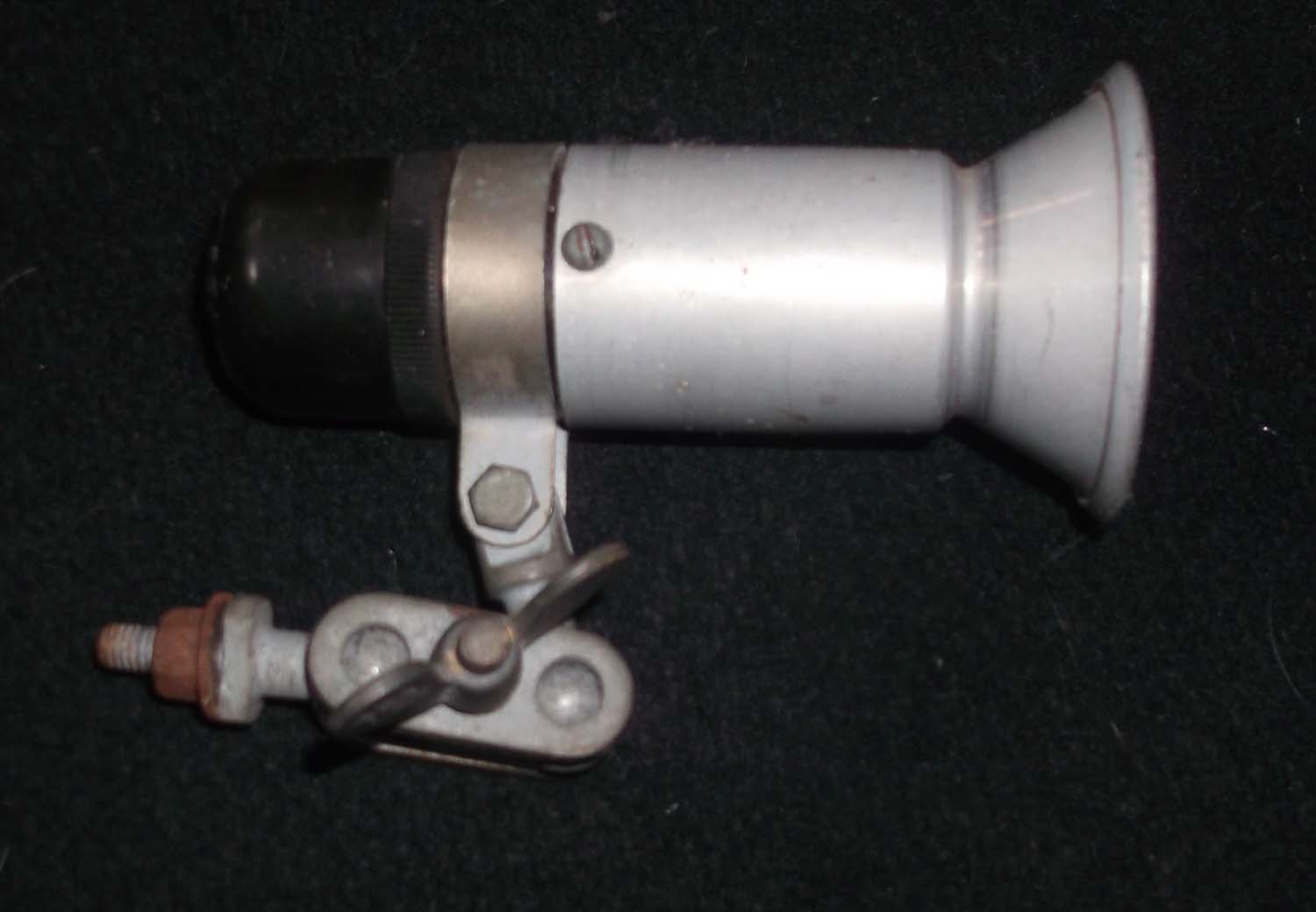

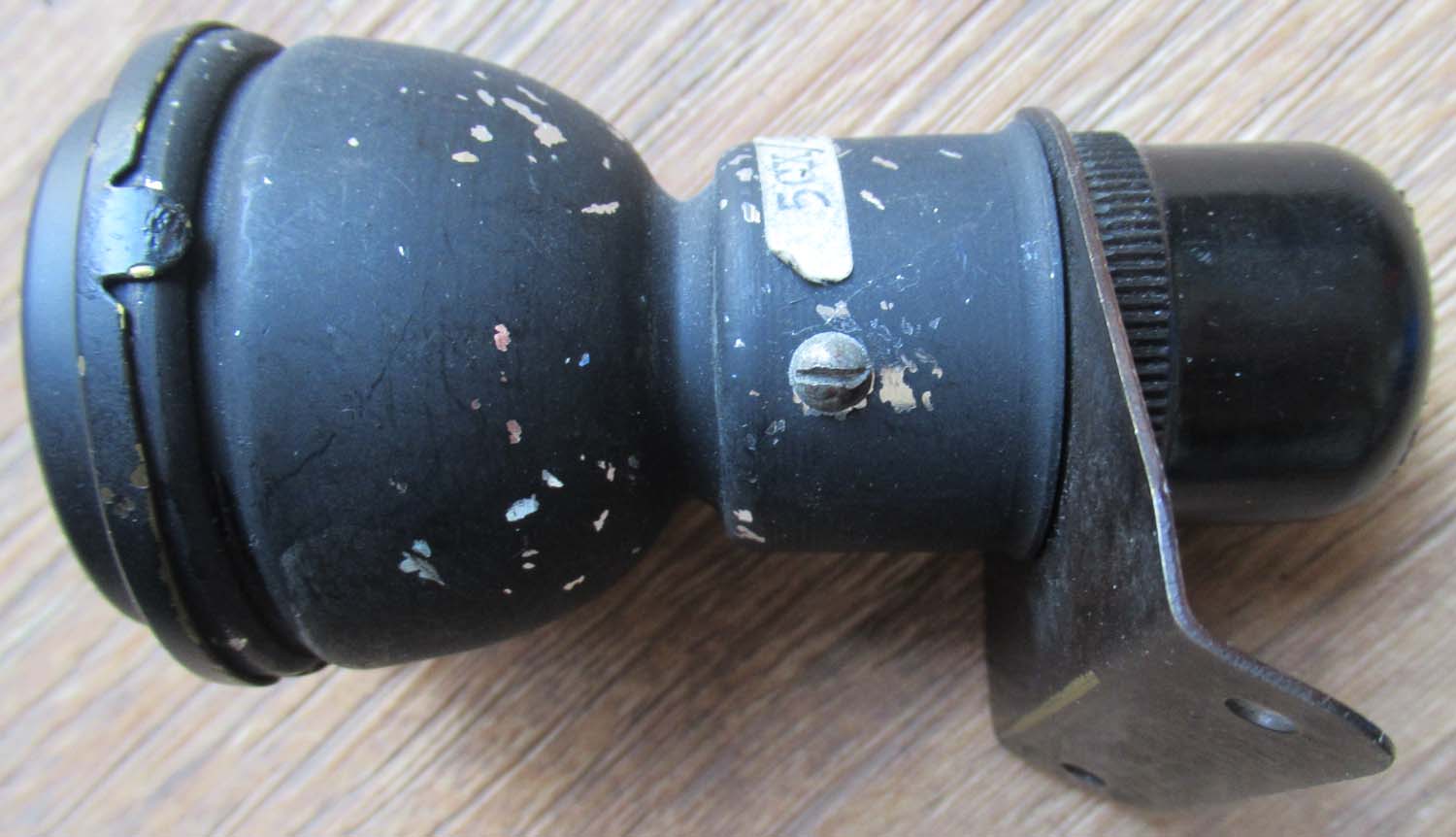

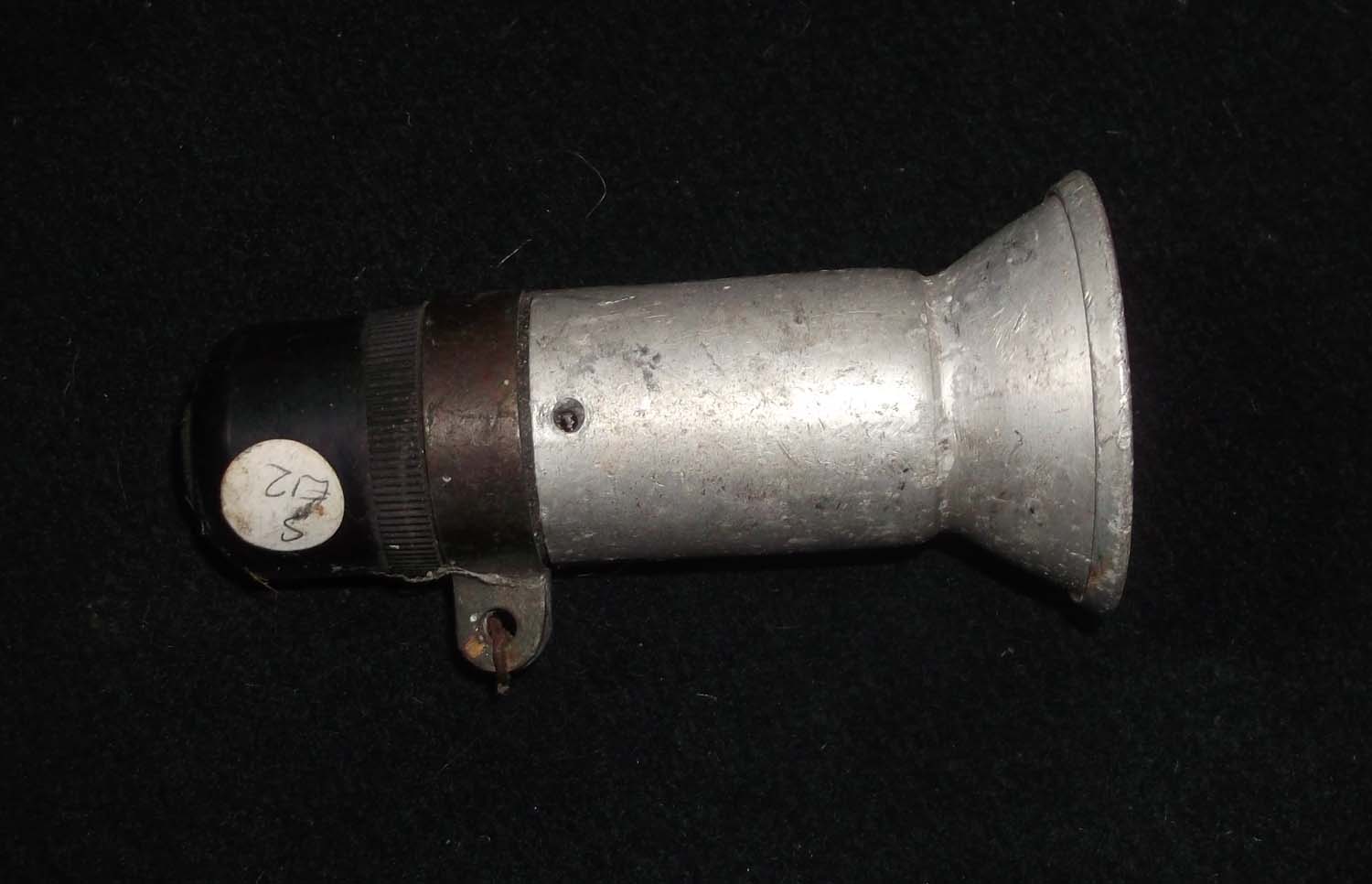

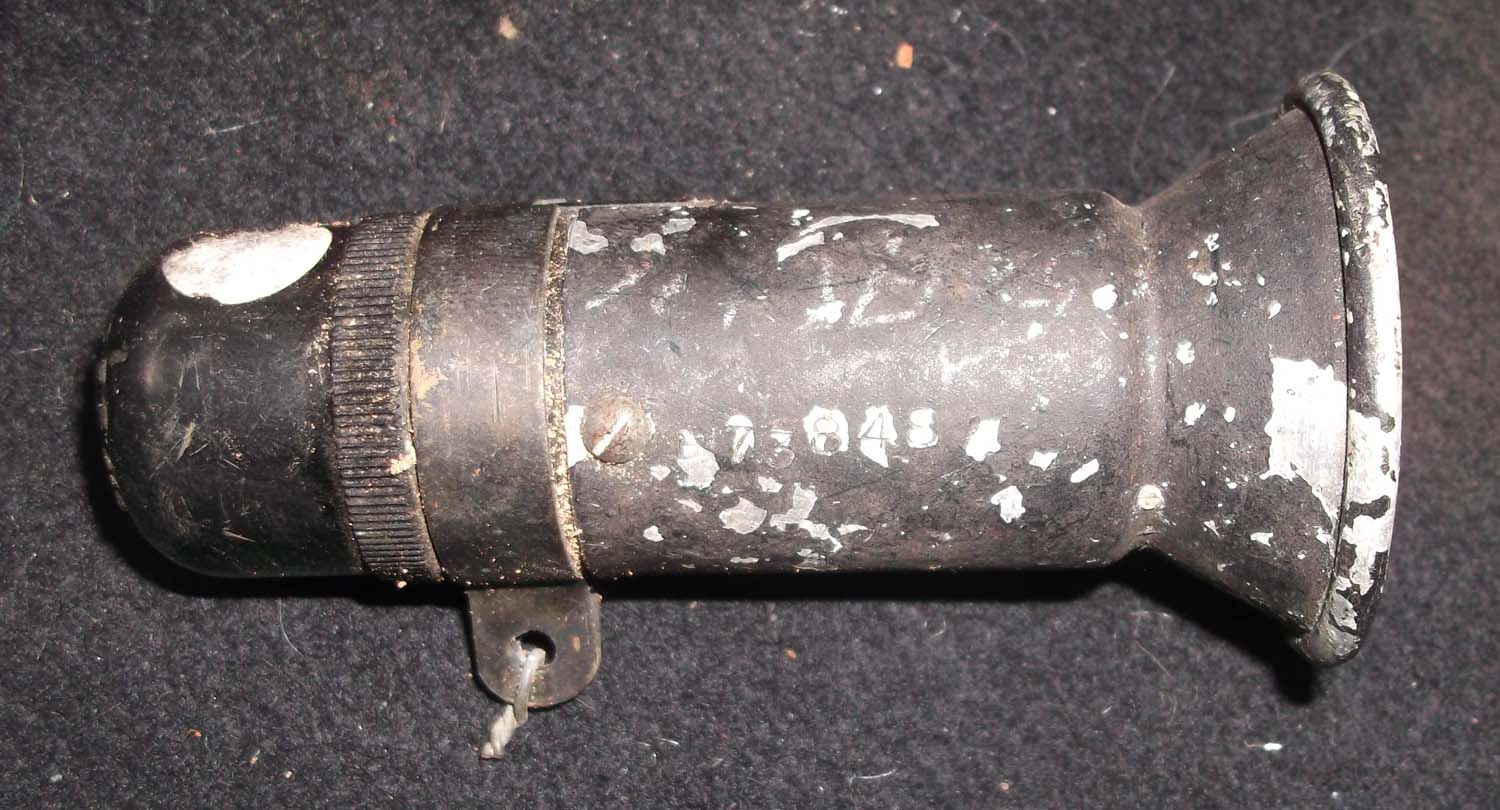

Cockpit Light
(No 66 pg1 Light)
Cockpit light.
Used in a variety of RAF Wartime aircraft to illuminate the
instrument panel.
Ref No:
5CX/2679
Ref No:
5CX/4330060
Click on
pictures to enlarge
£75
|
|
Click on
pictures to enlarge
 |

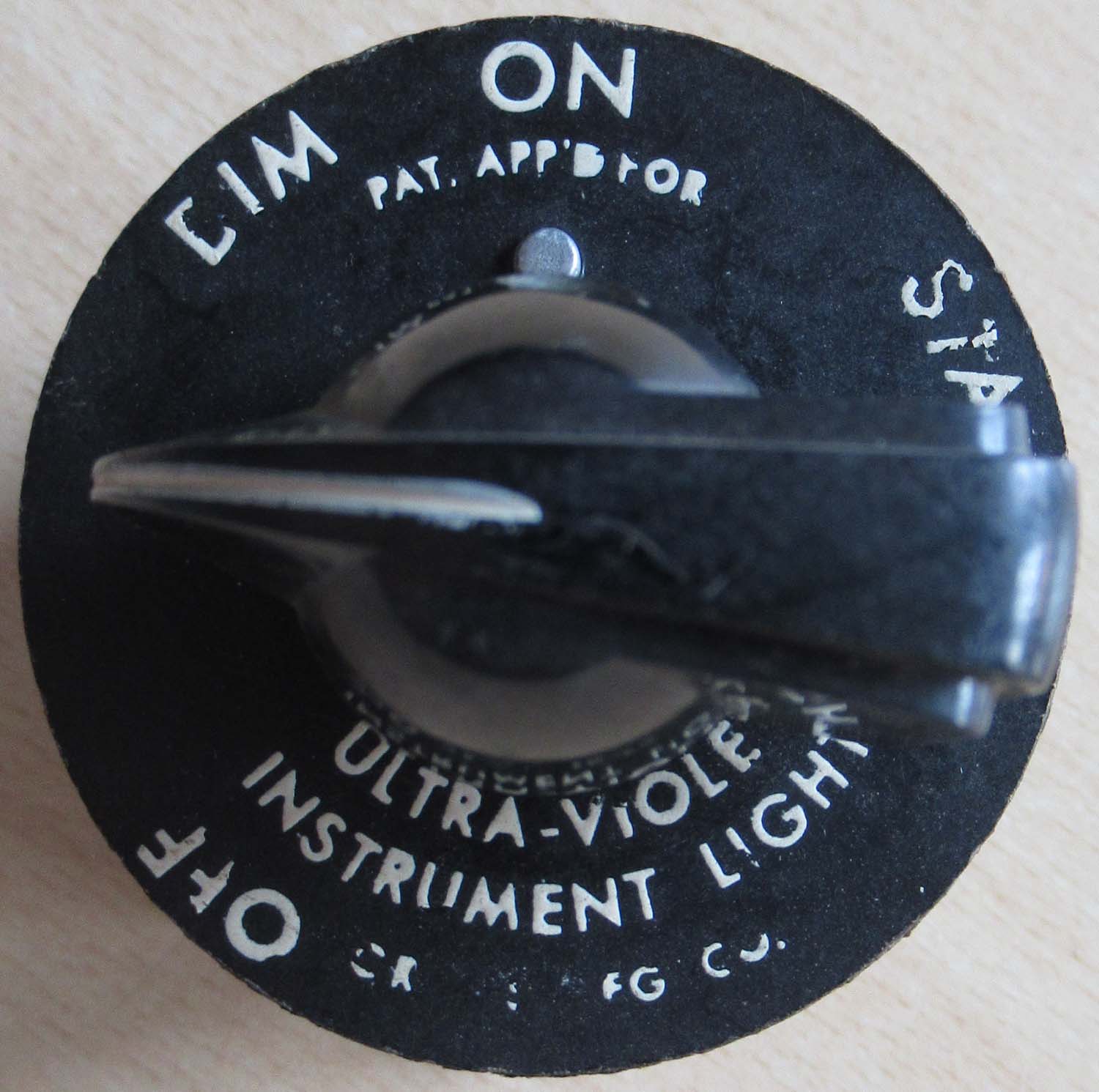

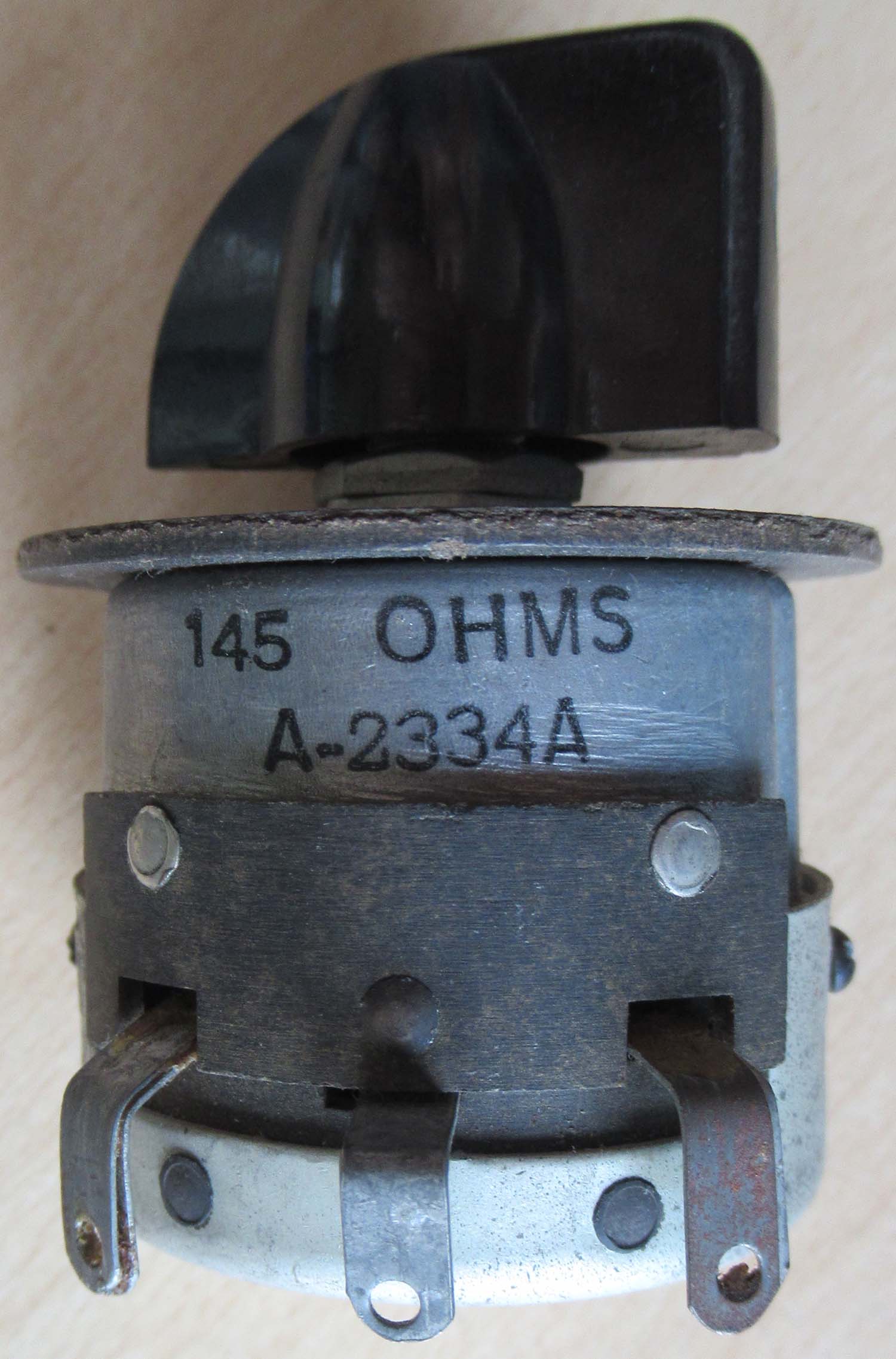

Ultra Violet Cockpit
Light Dimmer Switch (No 65 pg1 Light)
Grimes MFG Co ultra violet
light dimmer switch.
Used to control cockpit lights in
aircraft fitted with UV gauges.
A-2334A
Click on
pictures to enlarge
£35
|
|
Click on
pictures to enlarge
 |

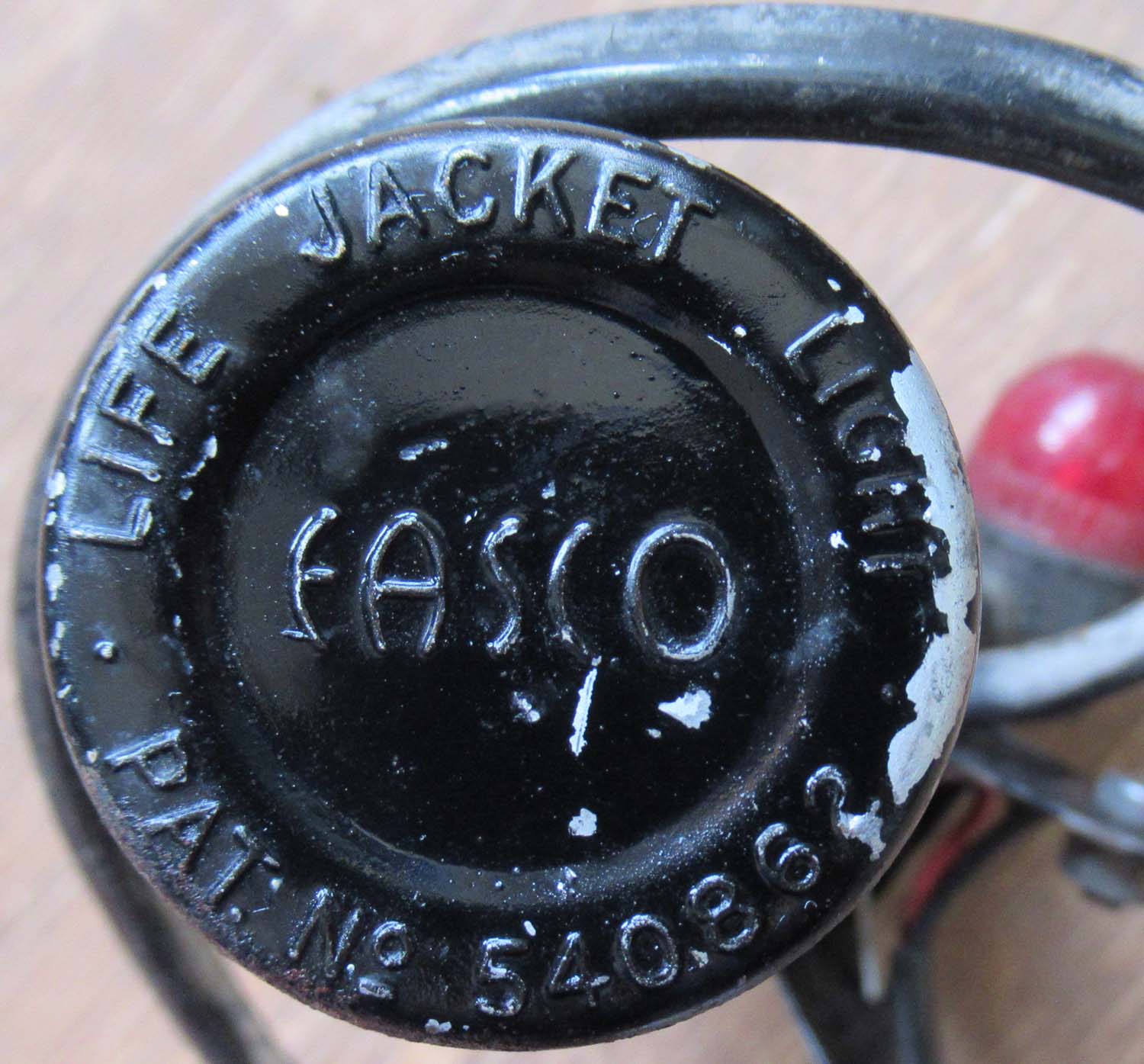

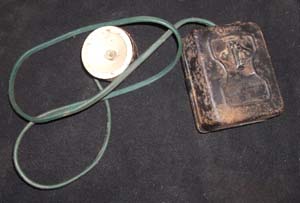

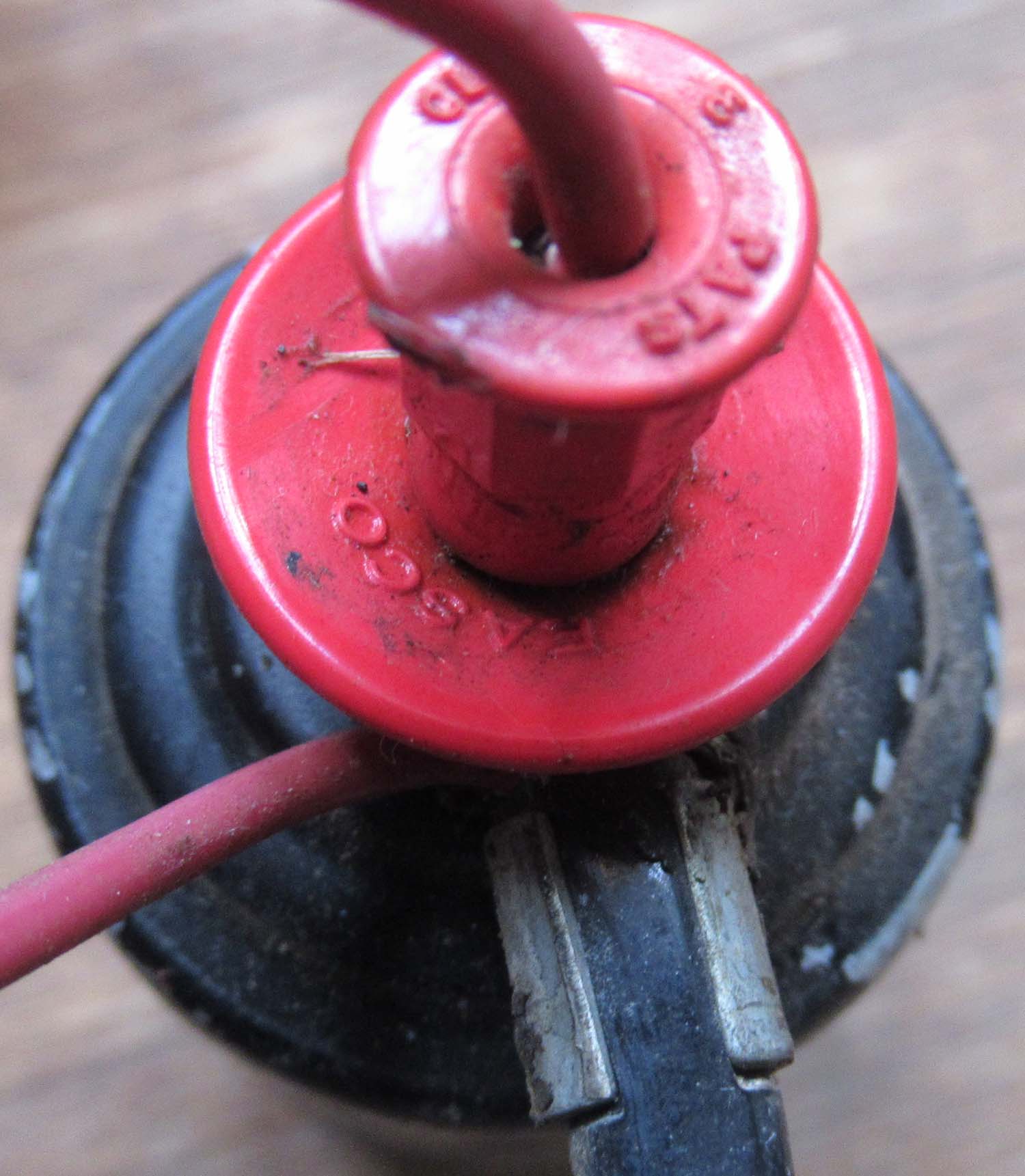

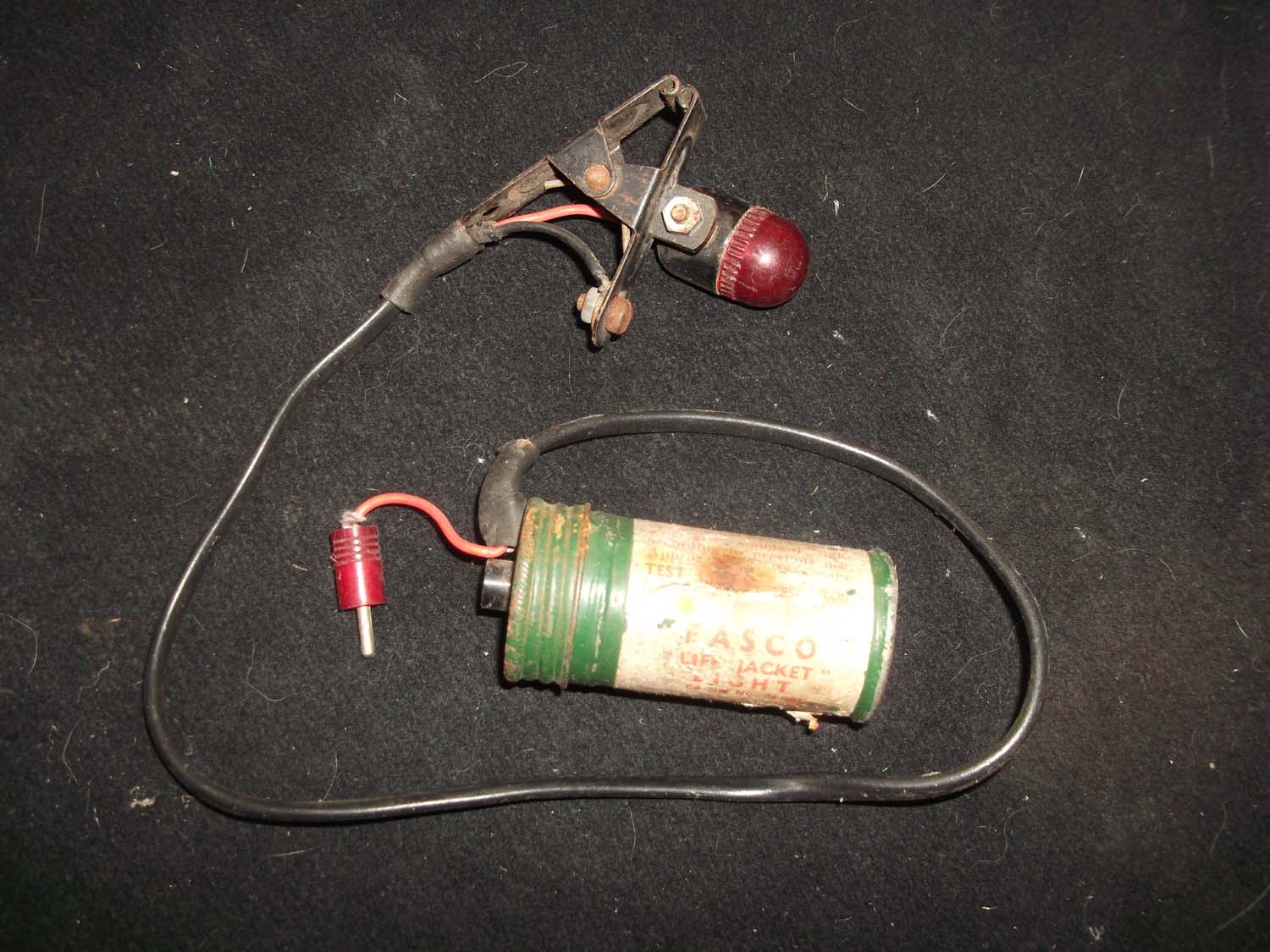

RAF WW2 Life
Jacket Light (No 62 pg1 Light)
Here we have a Easco life jacket
light.
This was used by British airman and would attach to the
life jacket.
PAT No:
540862
Click on
pictures to enlarge
£40
|
Click on
pictures to enlarge £25
|
Lamp Instrument 5CX/7904 (No 61 pg1 Light)
In original
condition in packet.
5CX/7904
RV No
818803362
Click on pictures to enlarge
|
|
Click on
the pictures to enlarge.
 |

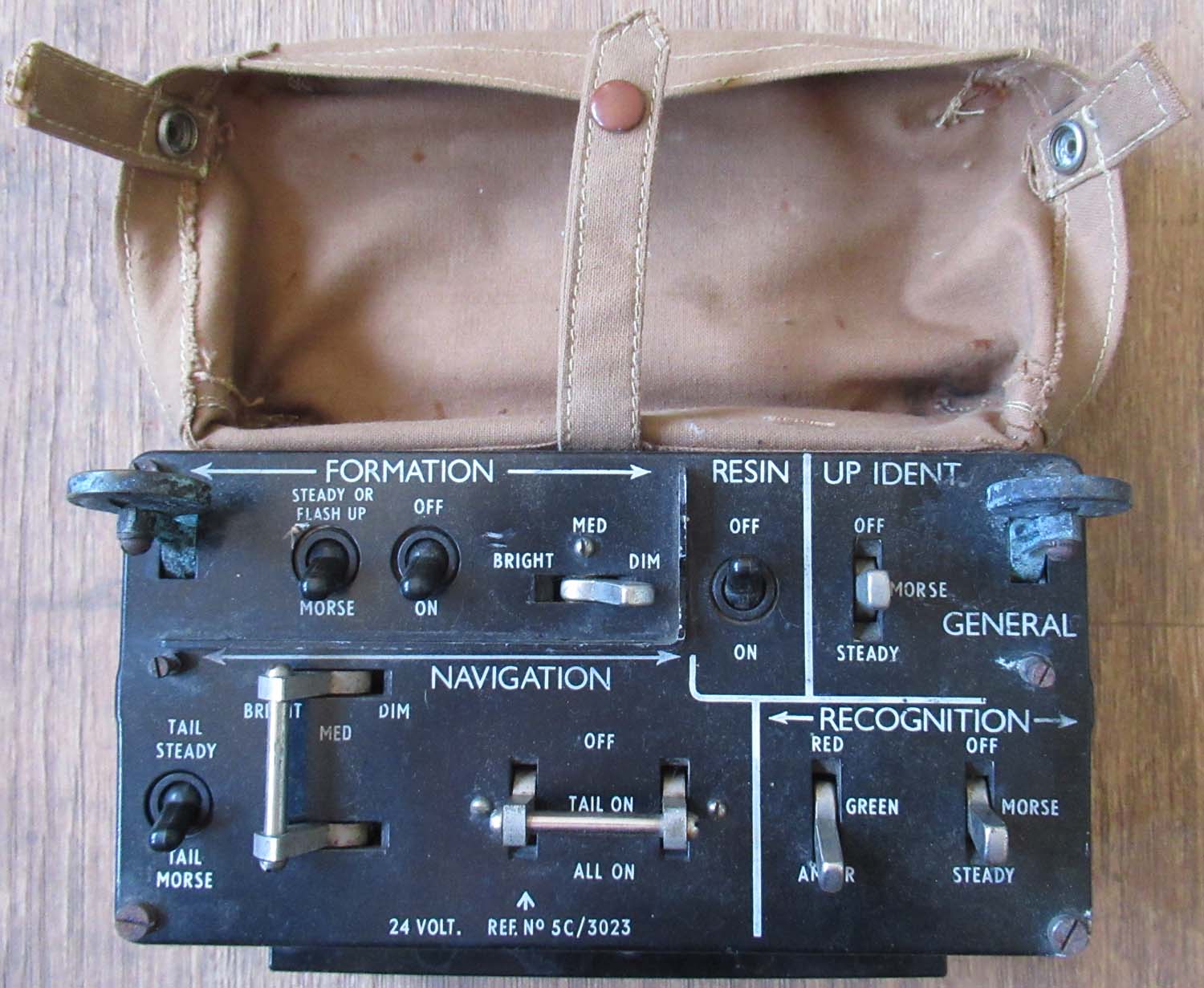

Lighting Control Panel (No 60 pg1 Light)
Fitted to the Fairy Firefly
and probably other FAA aircraft.
Click on
the pictures to enlarge.
External lights control panel. It
is for control and mode selection of Navigation, Formation and
Recognition Lights. If you read the legends on the various
controls I am sure you will see the logic of this.
The
references to Morse are actually for light-signaled Morse not
for radio.
When flying a mission in formation with other aircraft,
signaling by light amongst the formation would assist in
maintaining radio silence.
Dim/Med/Bright, Off/Morse/Steady, Green/Red/Amber all
refer to lamp statLamp Instrument 5CX/7904 (pg1 light)
Navigation/Formation/Identification are each a functional
lamp or group of lamps on the exterior of the aircraft.
£155
|
|
Click on
pictures to enlarge
|

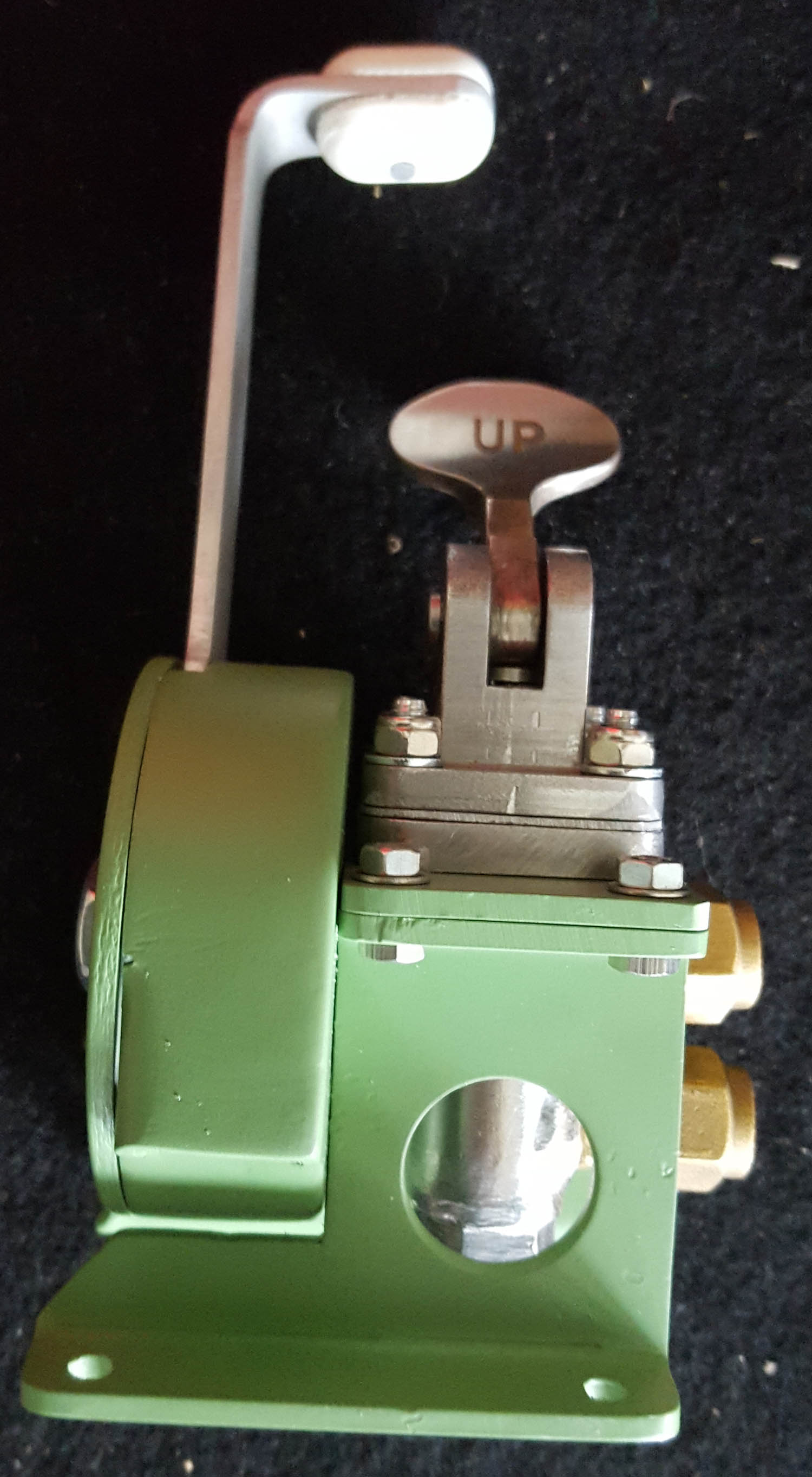

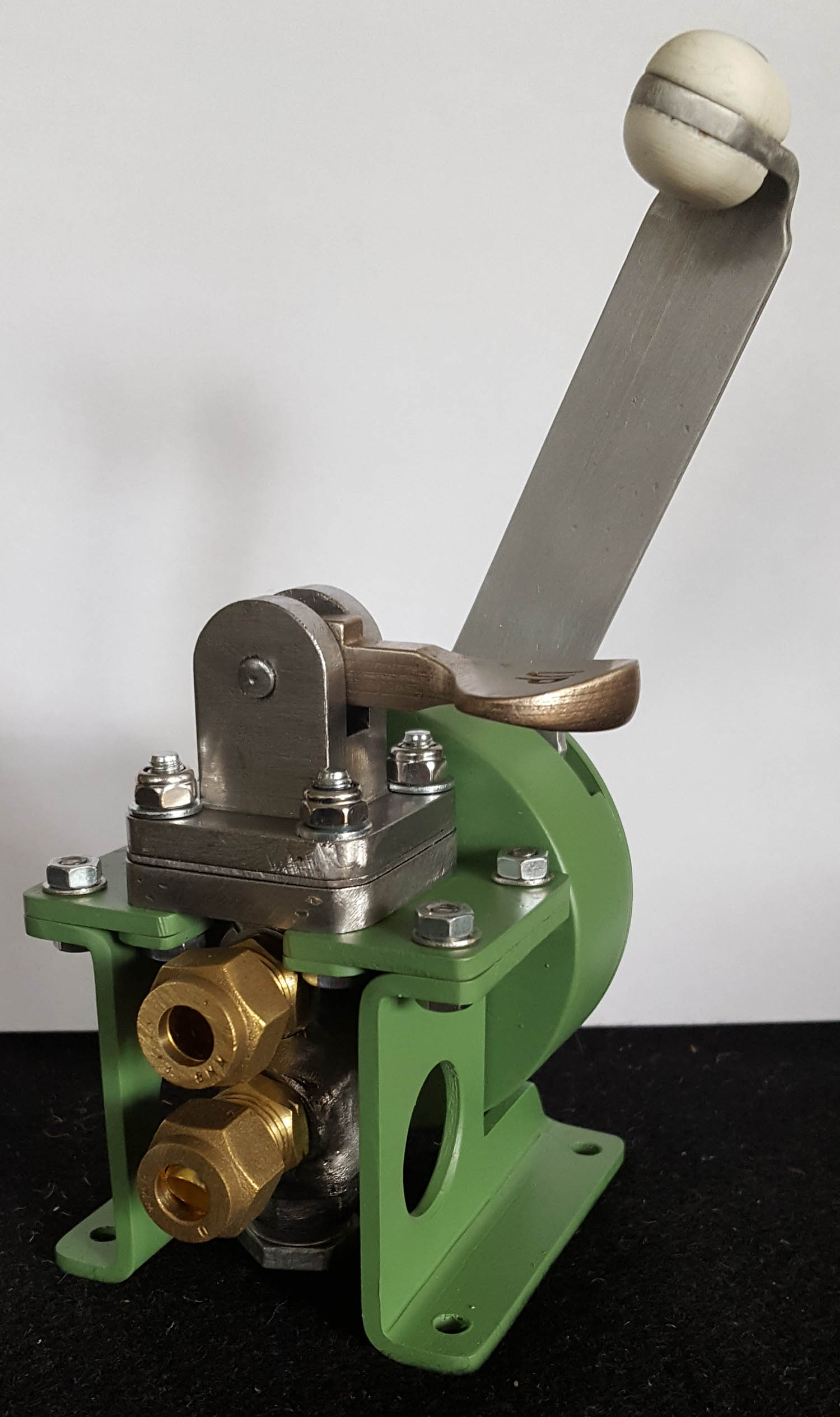

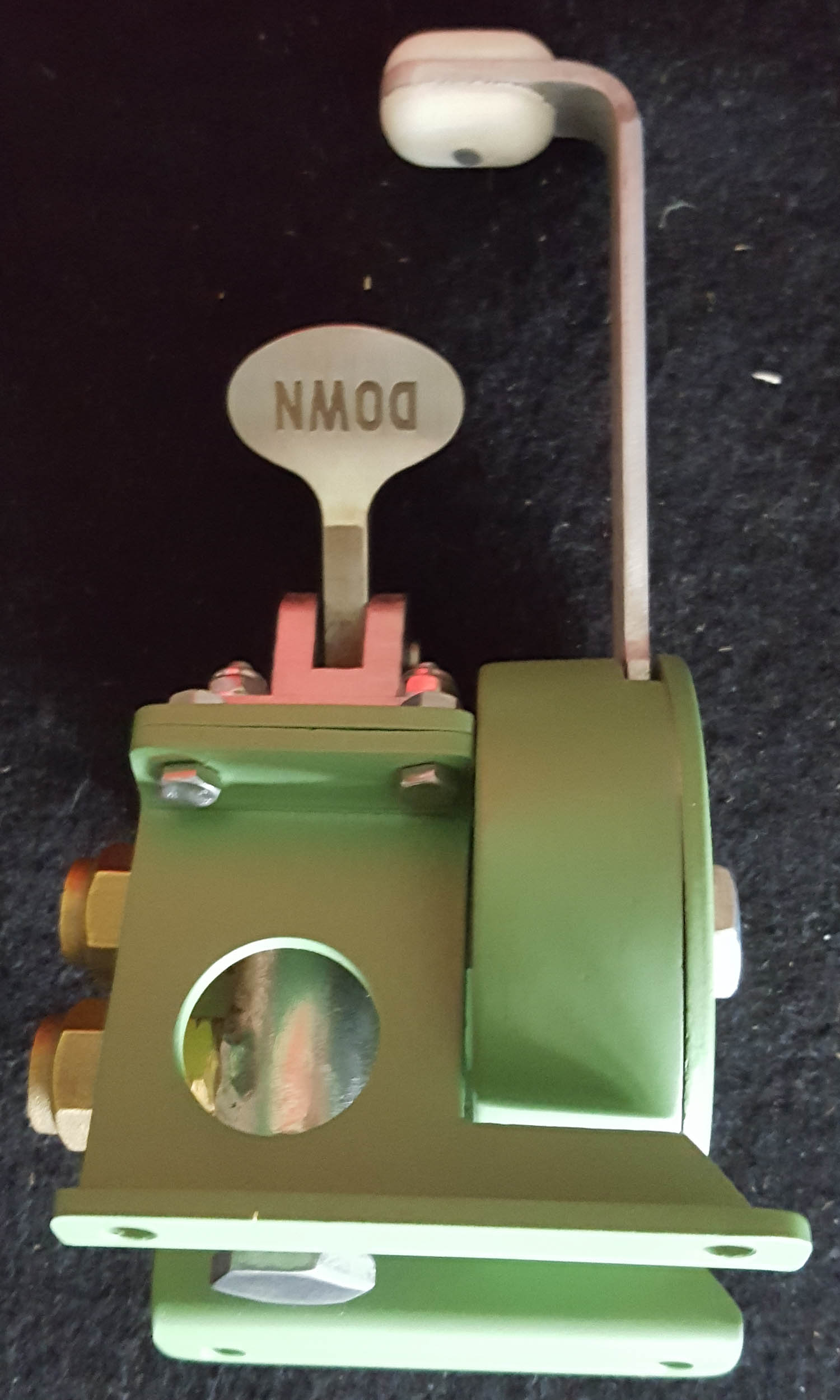

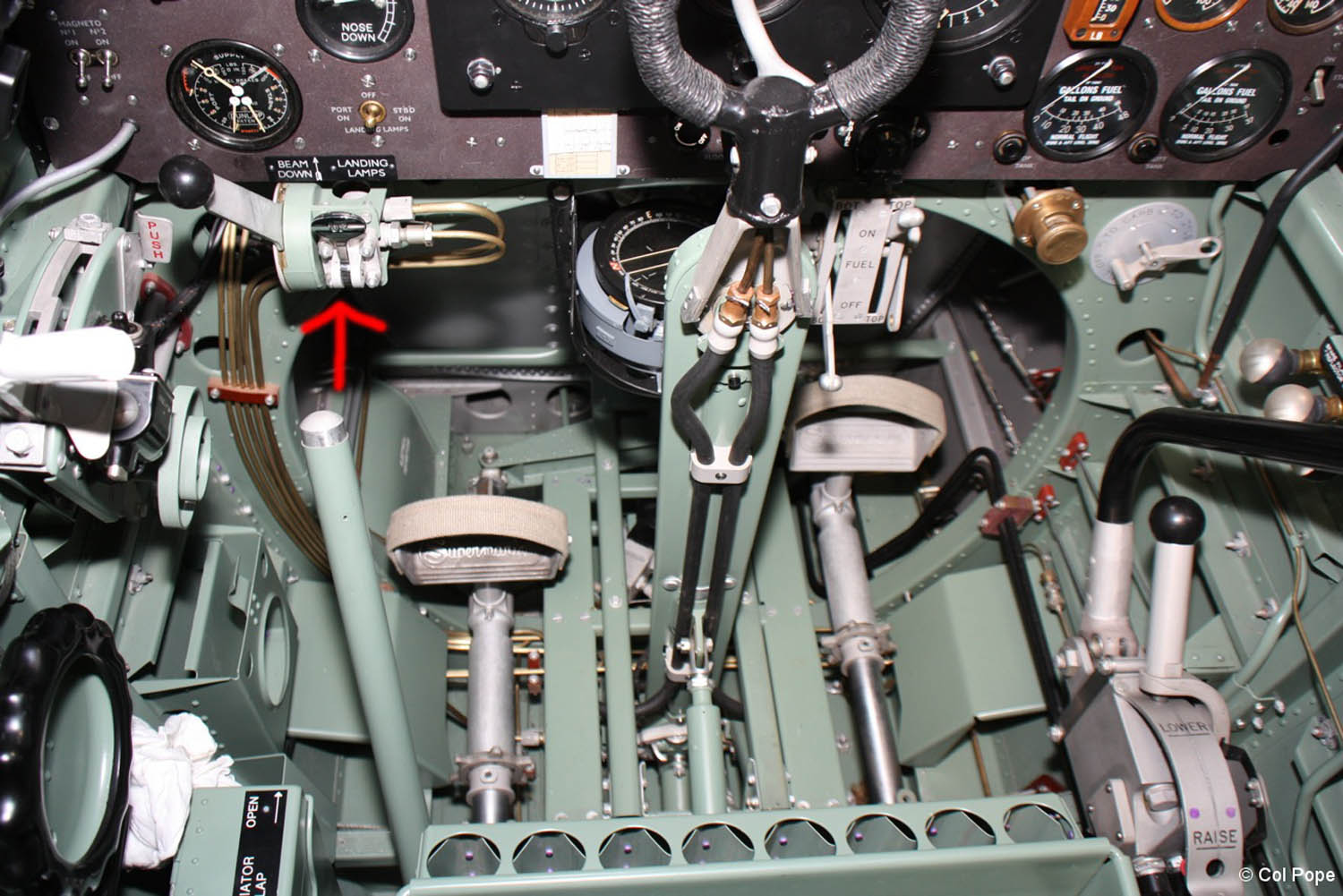

Spitfire Mk I/II Landing
Light Control (No 59 pg1 Light)
This superb piece is an exact copy of
the control used to operate the landing lights on the MK
I/II Spitfire.
This part is a reproduction and is not
functional. This is made from metal from original drawings.
Click on
pictures to enlarge

£795
|
|
Click on pictures to enlarge
 |

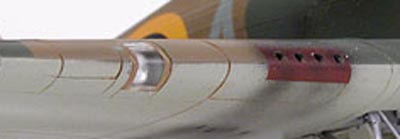

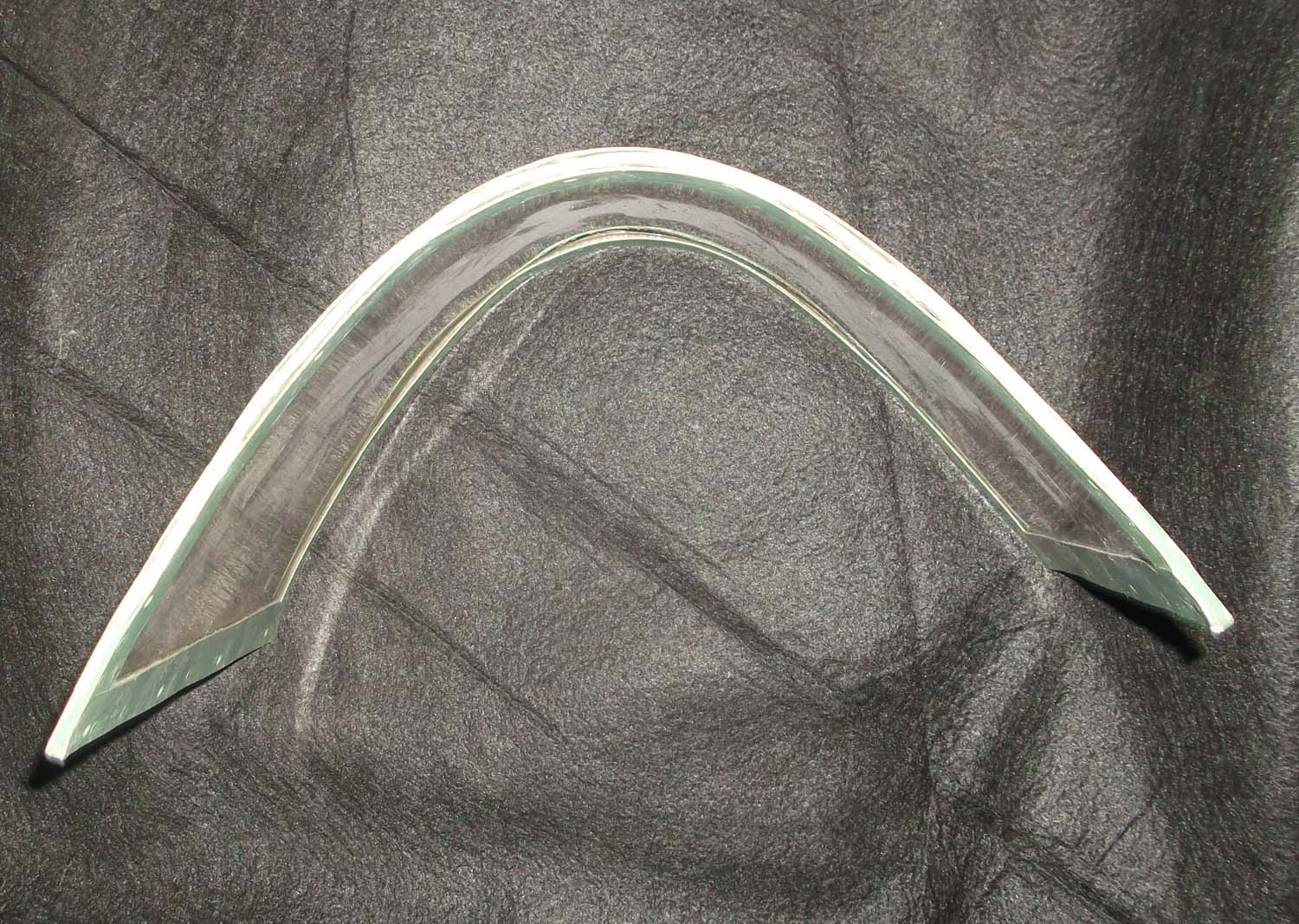

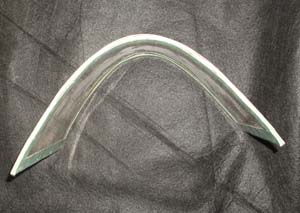

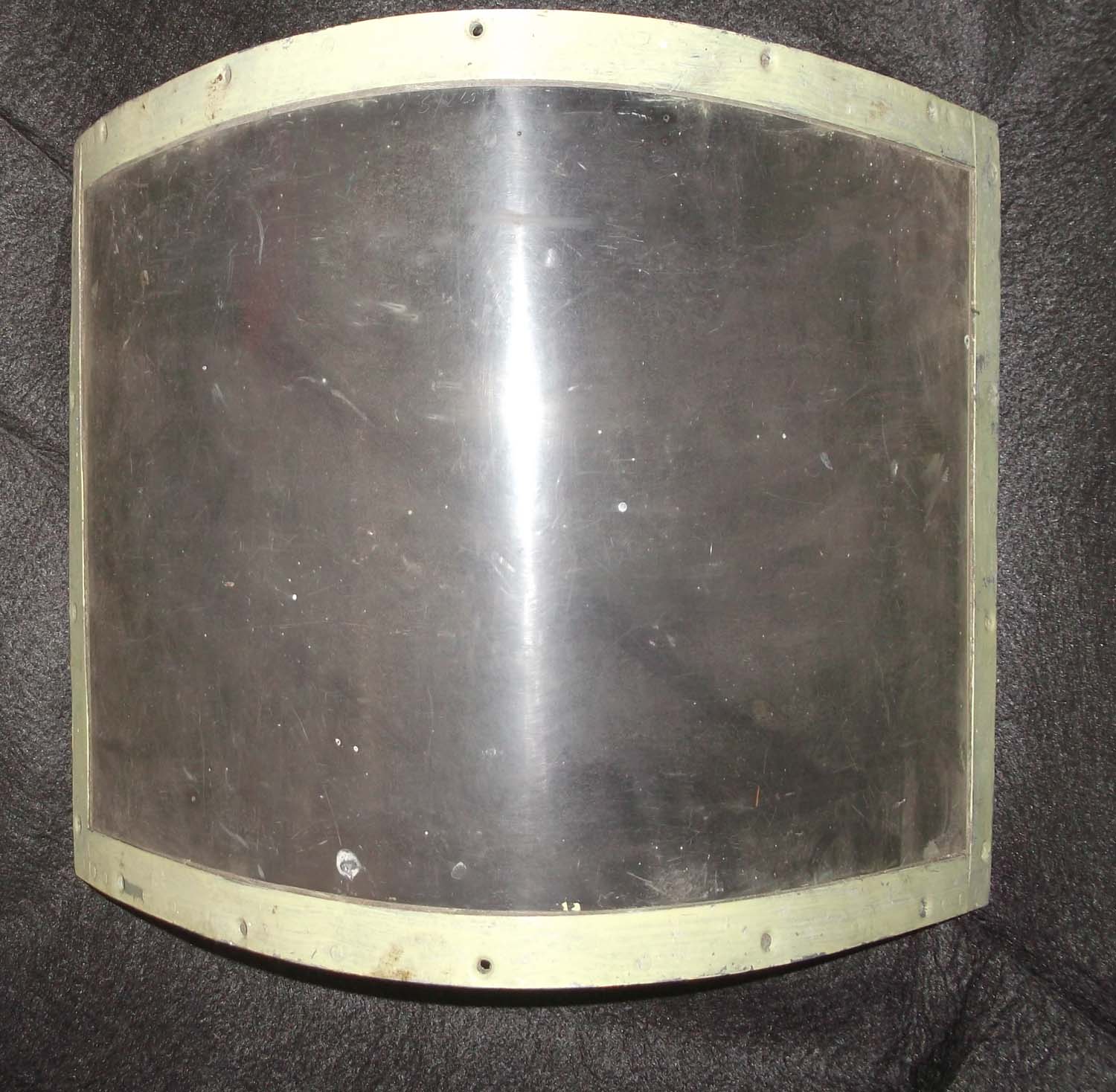

Hurricane Landing
Light Lens and Frame
(No 58 pg1 Light)
This superb piece is an original
corrosion free landing light frame and lens. Fitted on the
leading edge, it protected the Hurricanes landing
light.
It is stainless steel. A stunning piece of original Hurricane.

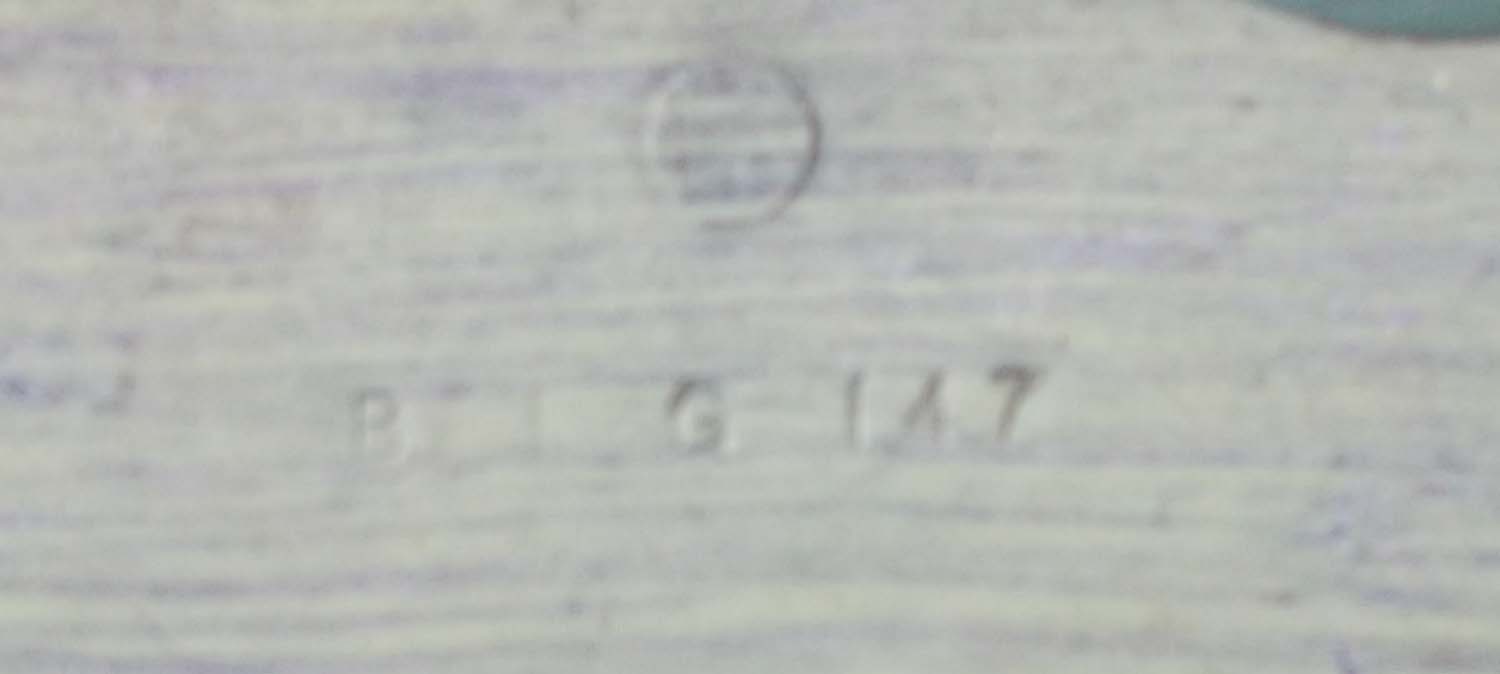

There are a lot of part numbers as follows, and some are
hard to read:
C 84078 BG
147 G 84678
BIG147
Inspectors Stamp
0TL7
£399
|
|
Click on pictures to enlarge
An alloy
panel is also available in the airframe section link. |

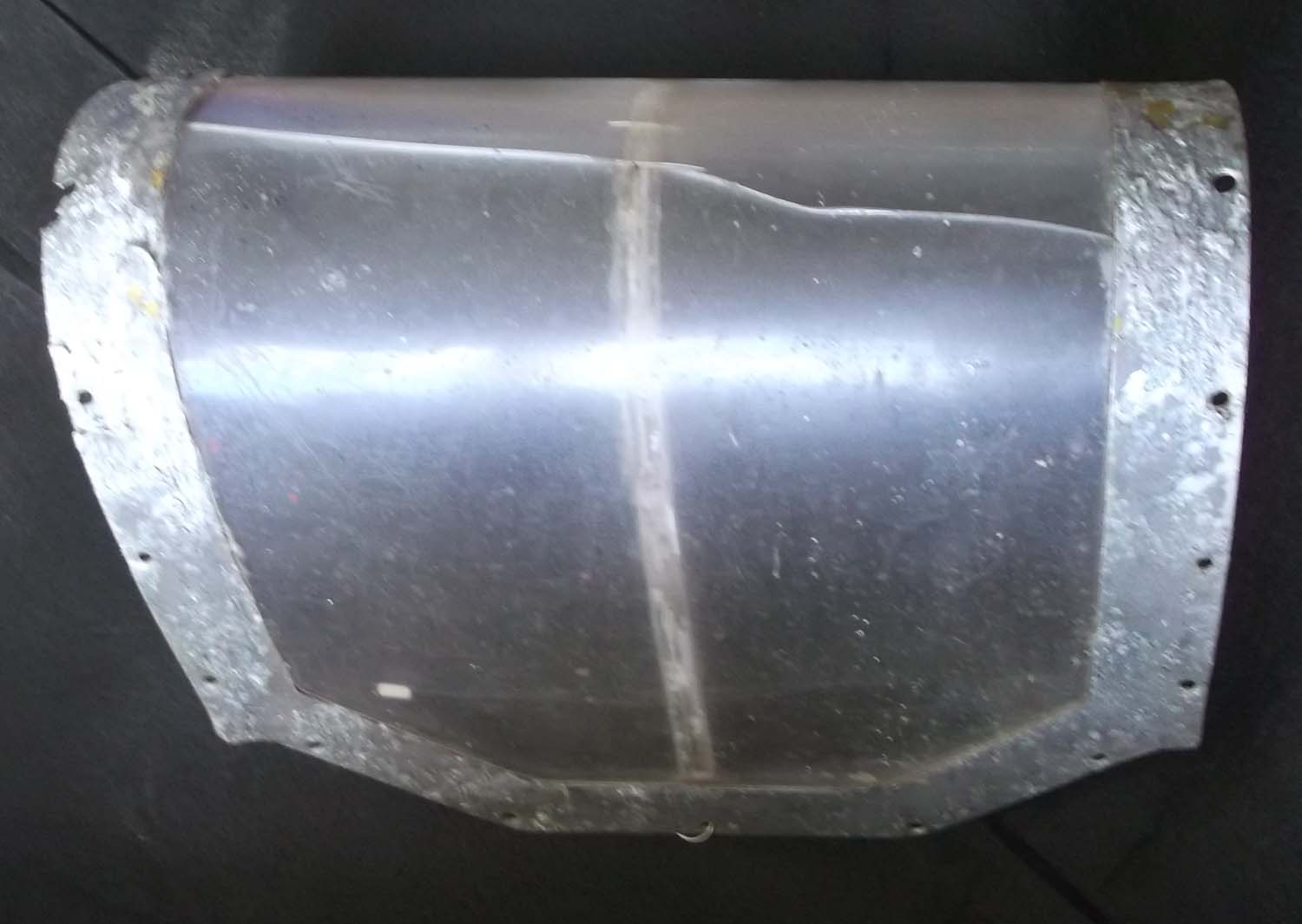

Hawker Typhoon Leading
Edge Light Cover
3 (No 57 pg1 Light)

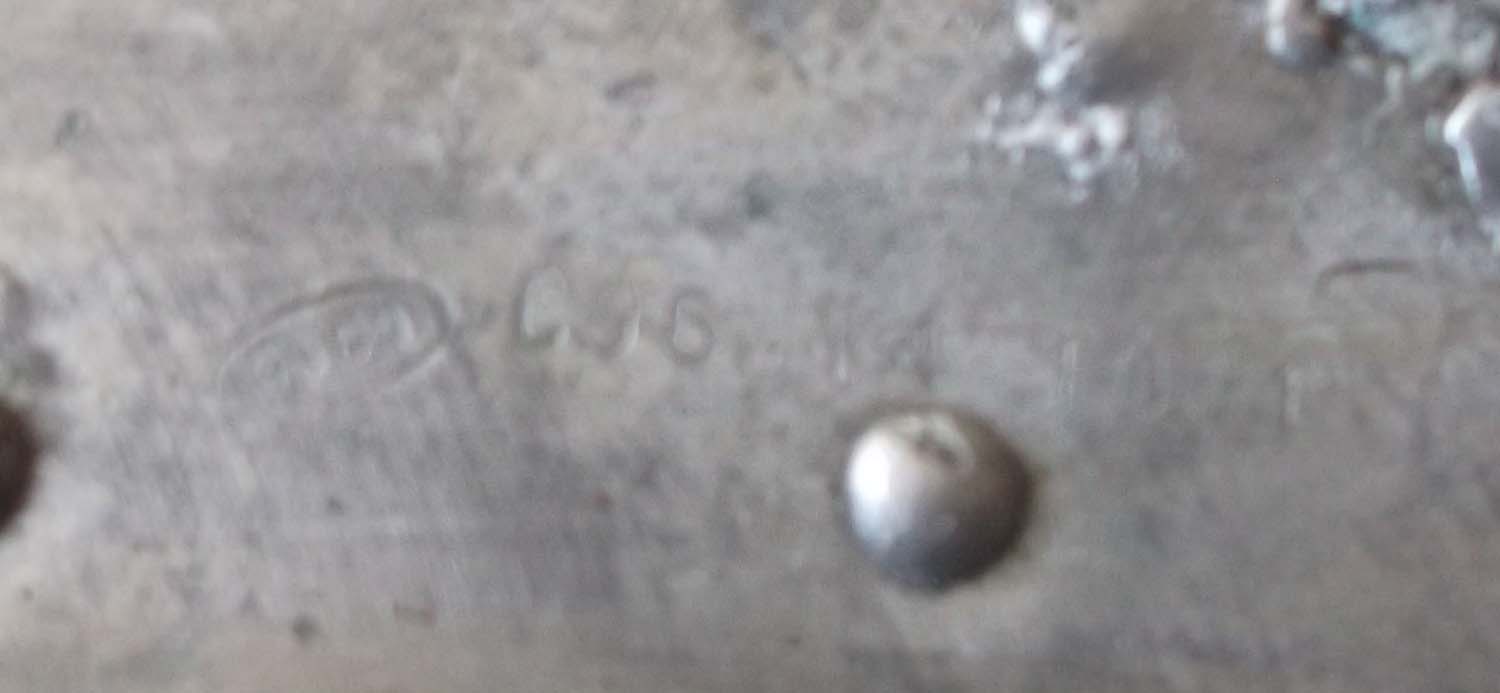

This is an original Hawker Typhoon
leading edge light cover.
This piece fits where the over
landing lights.
100% original with complete perspex
This were purchased on
our trip to
Arnhem
and almost
certainly saw action in a ground attack role.
It was
excavated from an airfield dump in Holland. Has
some corrosion and a crack in the perspex.
You can see the position they fit to the right of the RHS
cannon.
£2 75
|
|
Click on picture to enlarge
Several available
£35 each
|

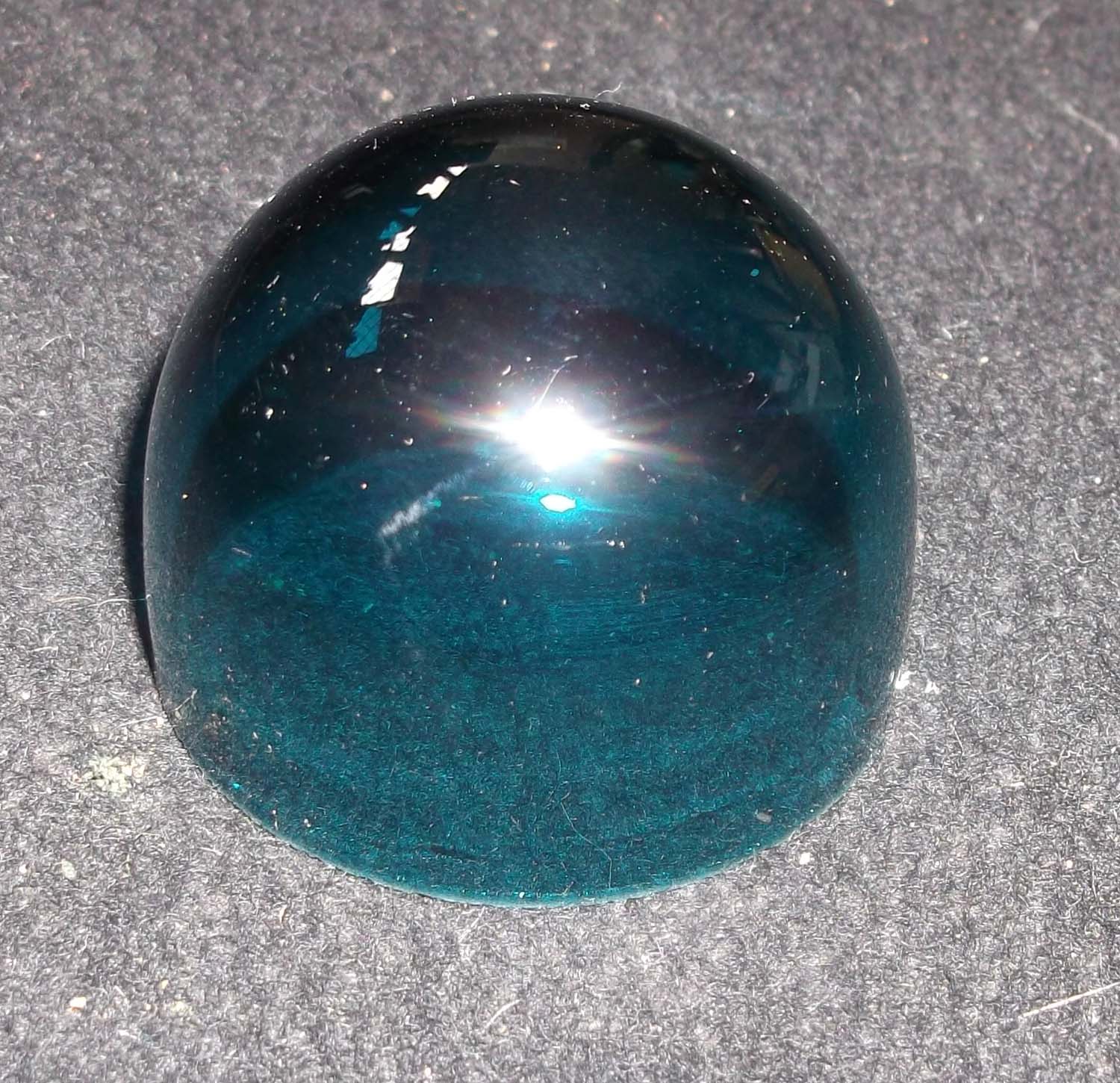

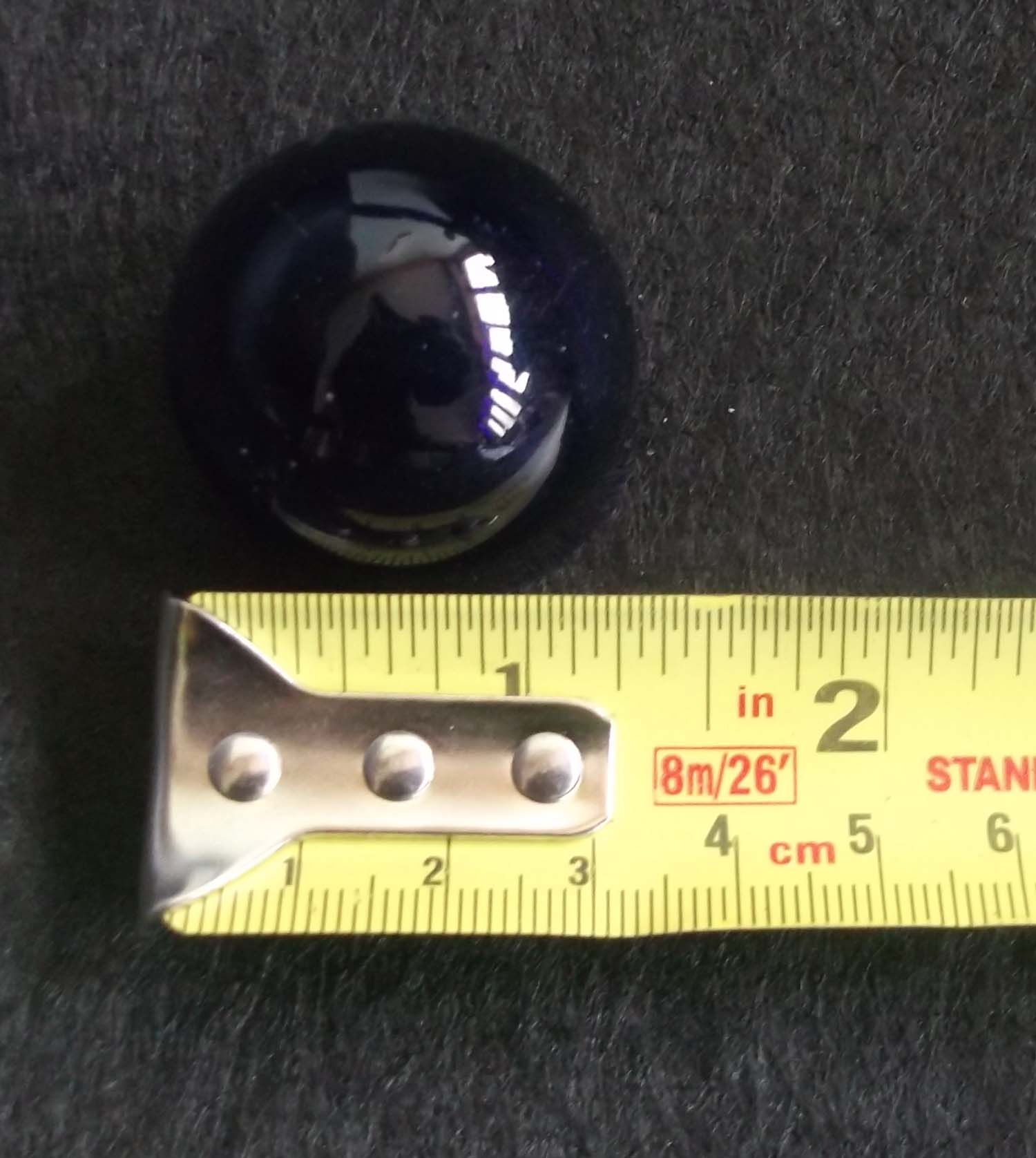

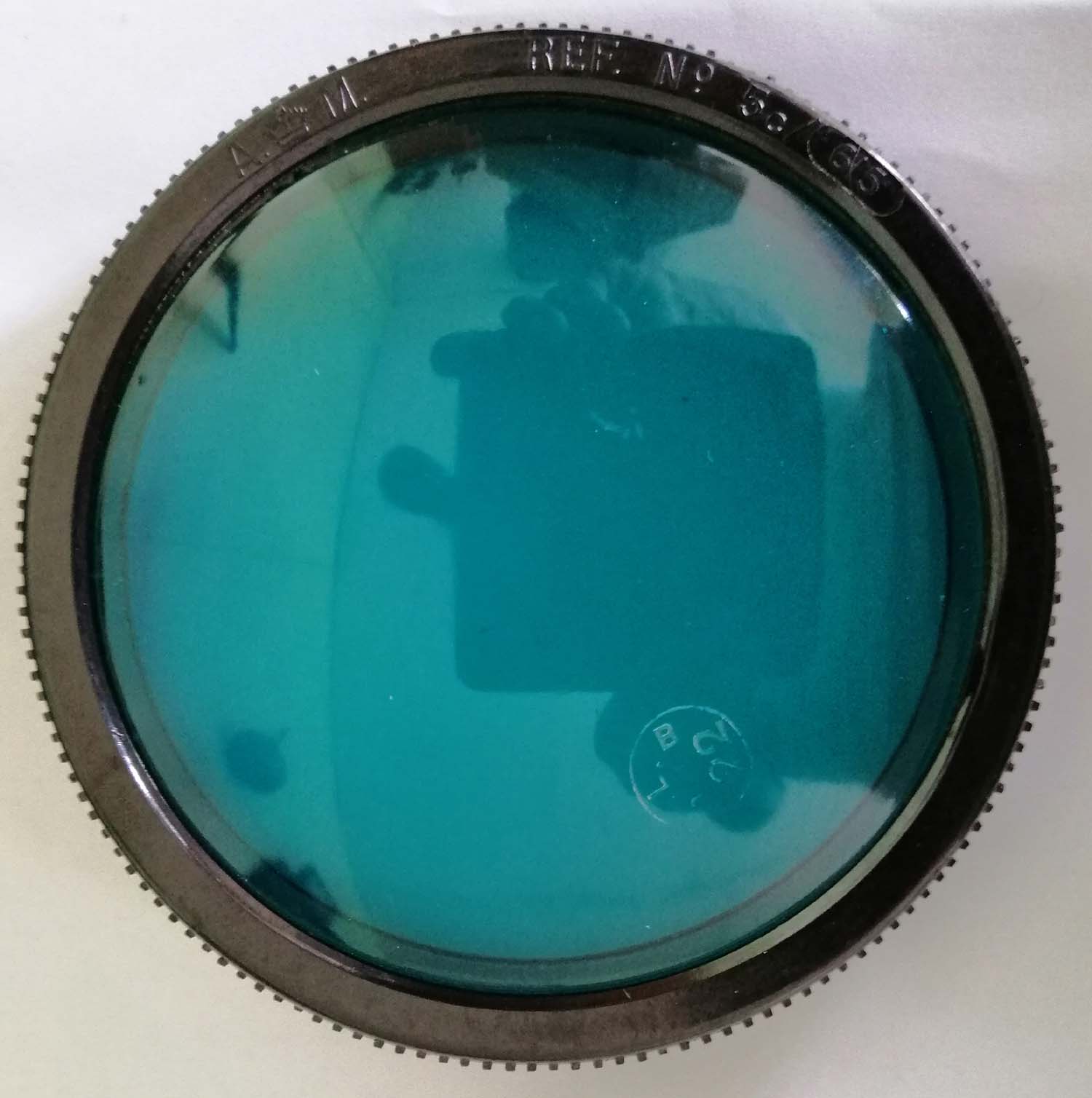

Navigation Light
Spare Lens
Green/Blue (No 56 pg1 Light)
Here we have
green/blue spare
navigation light lenses for the unit advertised above and
below. Also used in Spitfires .
|
Click on picture below
to enlarge

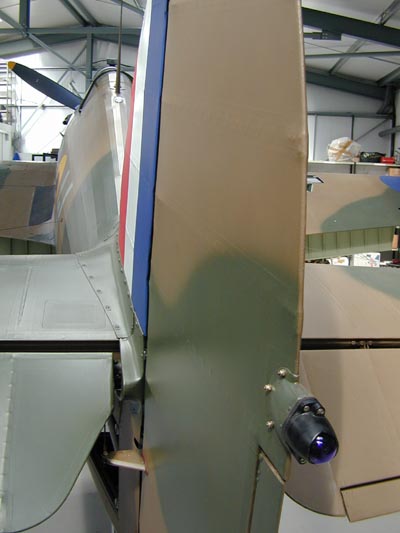

Seen fitted to the
Hurricane under and right
 |

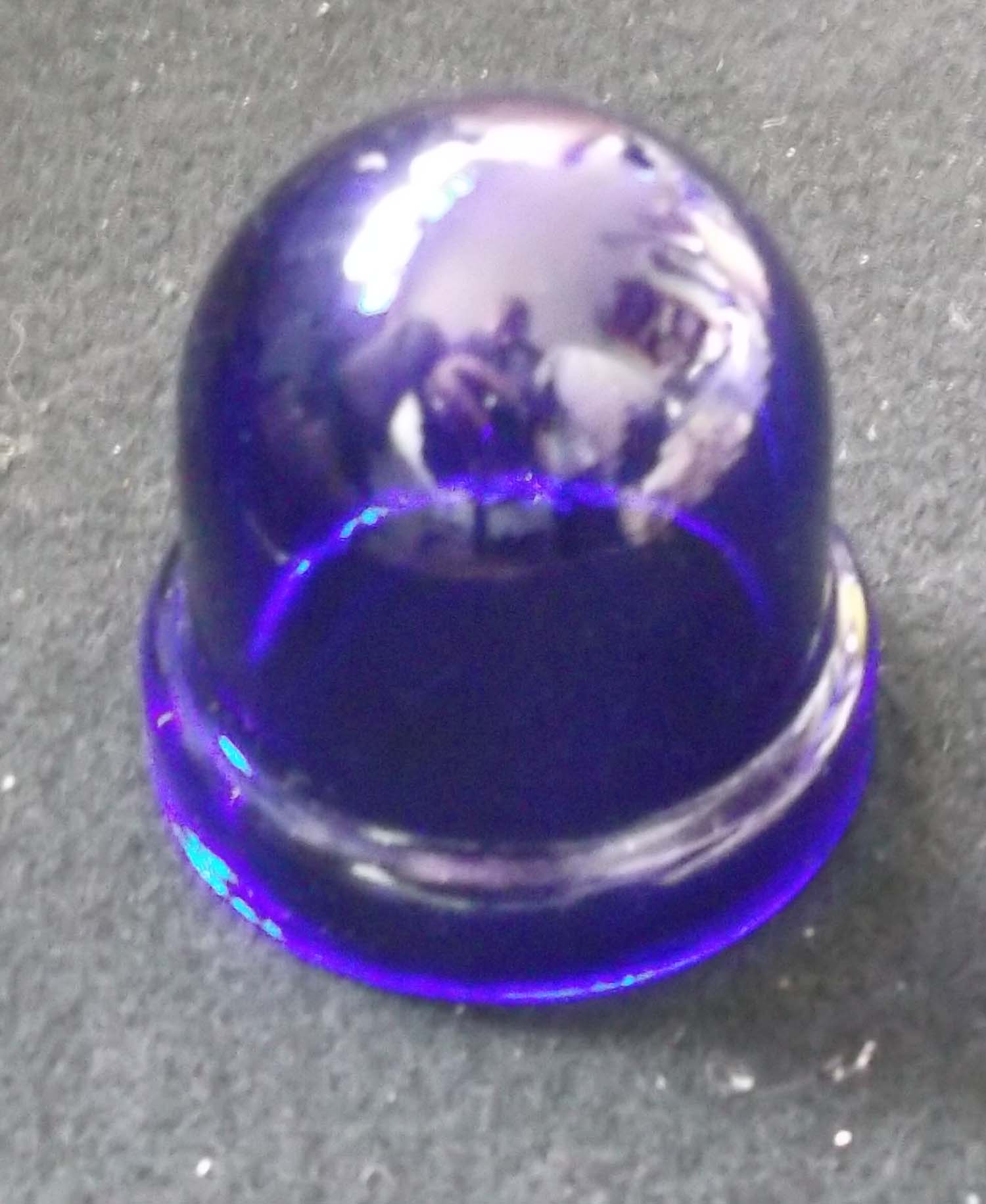

Hurricane Tail Light Lens (No 53 pg1 Light)
Here is a tail light
lens for the Hurricane and probably other
RAF Wartime aircraft.
Measures 45mm across the base.
Recently supplied
and fitted to Peter Vacher's superb MK I Battle of Britain
Hurricane.
Three available
£75 each
|
|
Click on
pictures to enlarge
 |

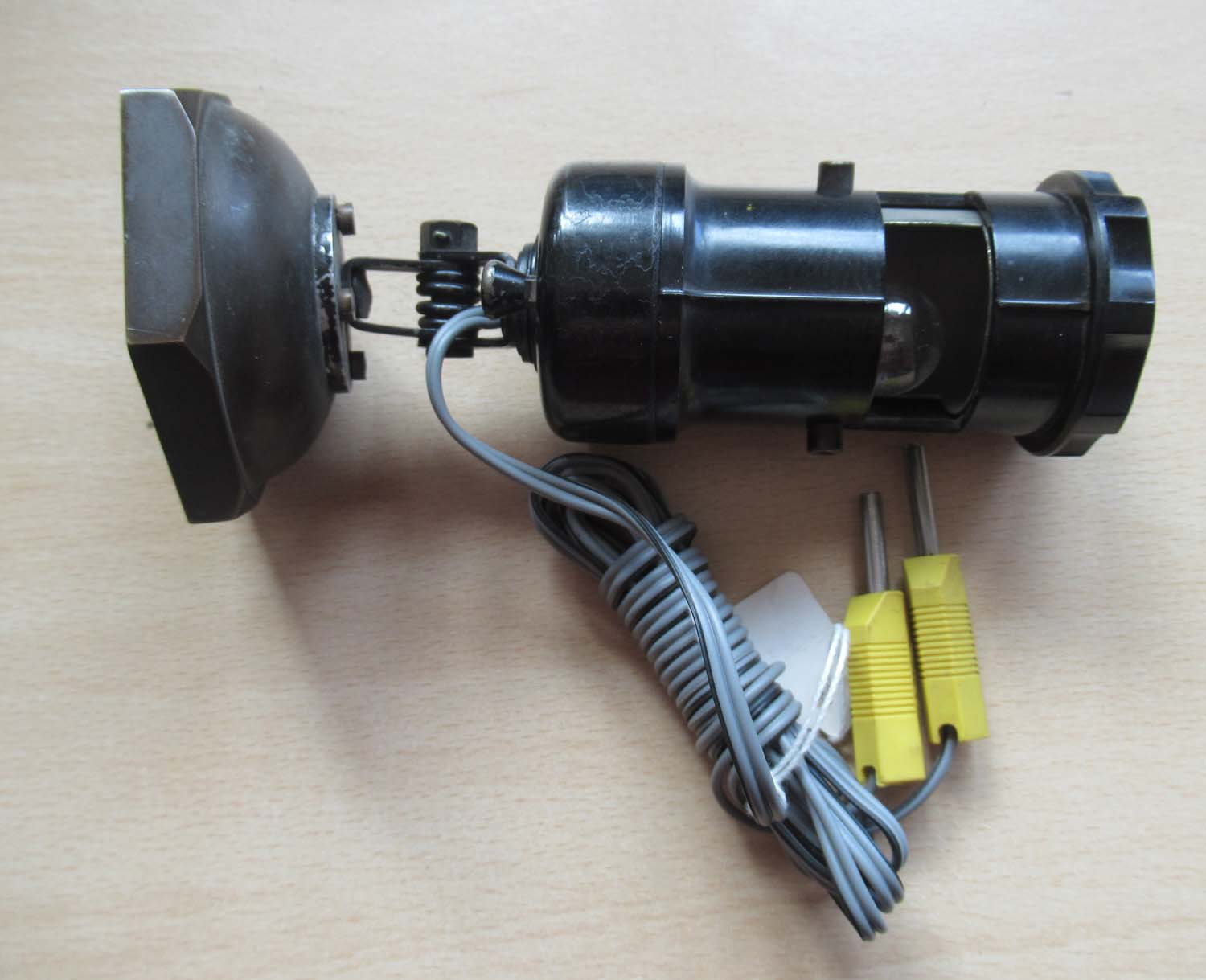

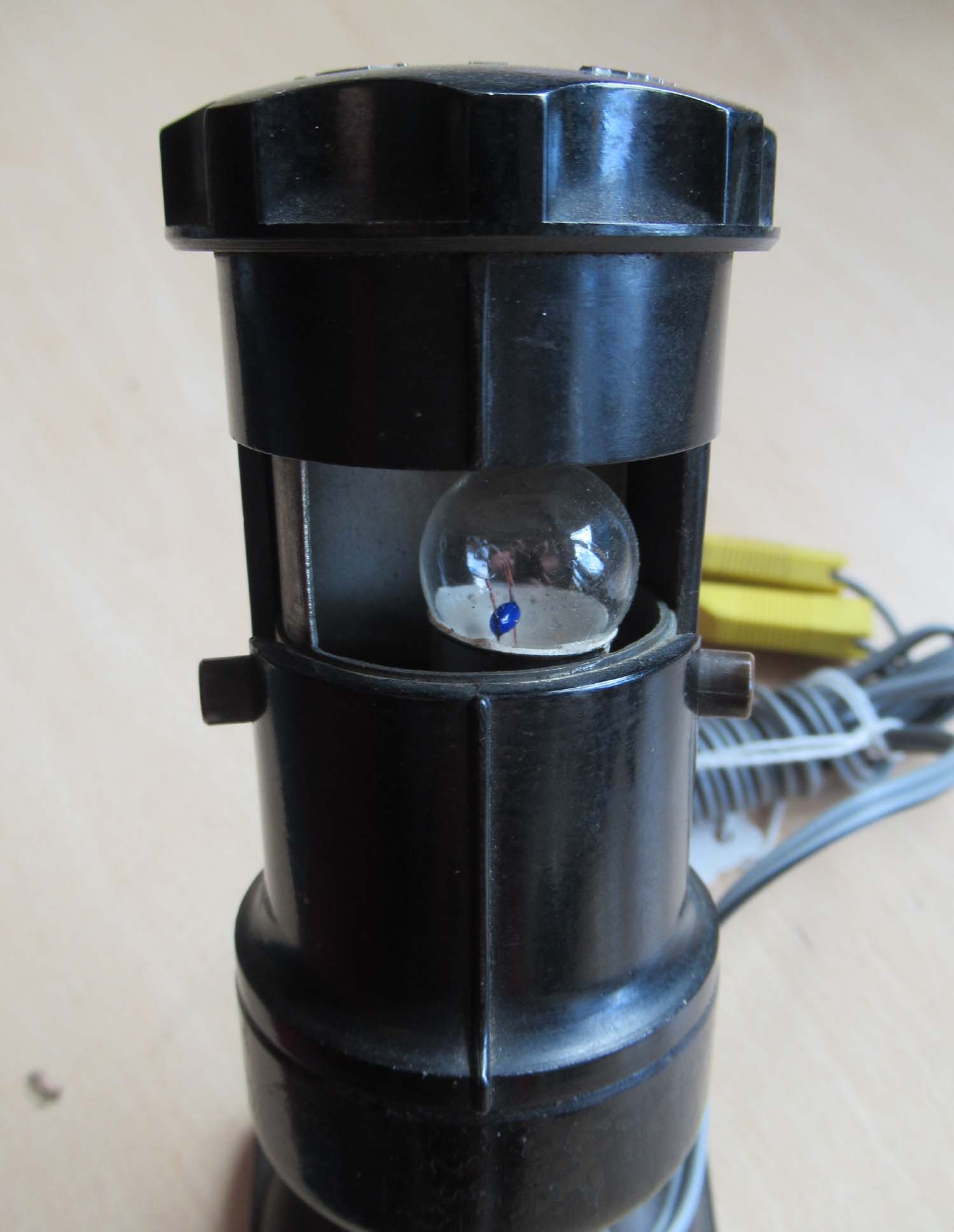

Lancaster Crew Light
Table Lamp (No 51 pg1 Light)
This is a really nice example
of the internal crew lights fitted to the Lancaster
and other heavy aircraft. Fitted in several places around
the Lancaster notably the flight engineers panel and the
bomb aimers panel. This one has a really nice custom made
stand to use as a table lamp.
Seen in situ
above.
£125
|
|
Click on pictures to enlarge
 |

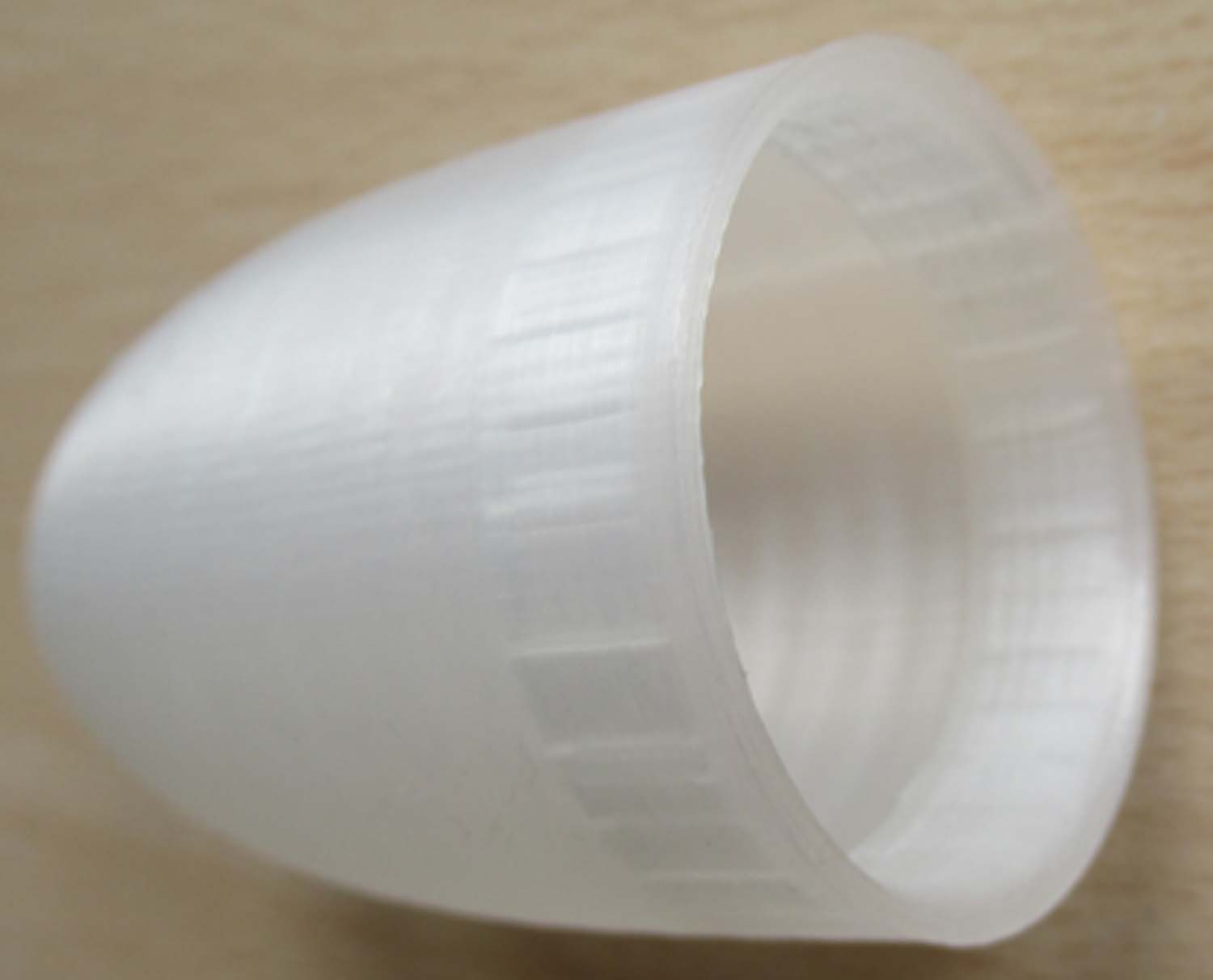

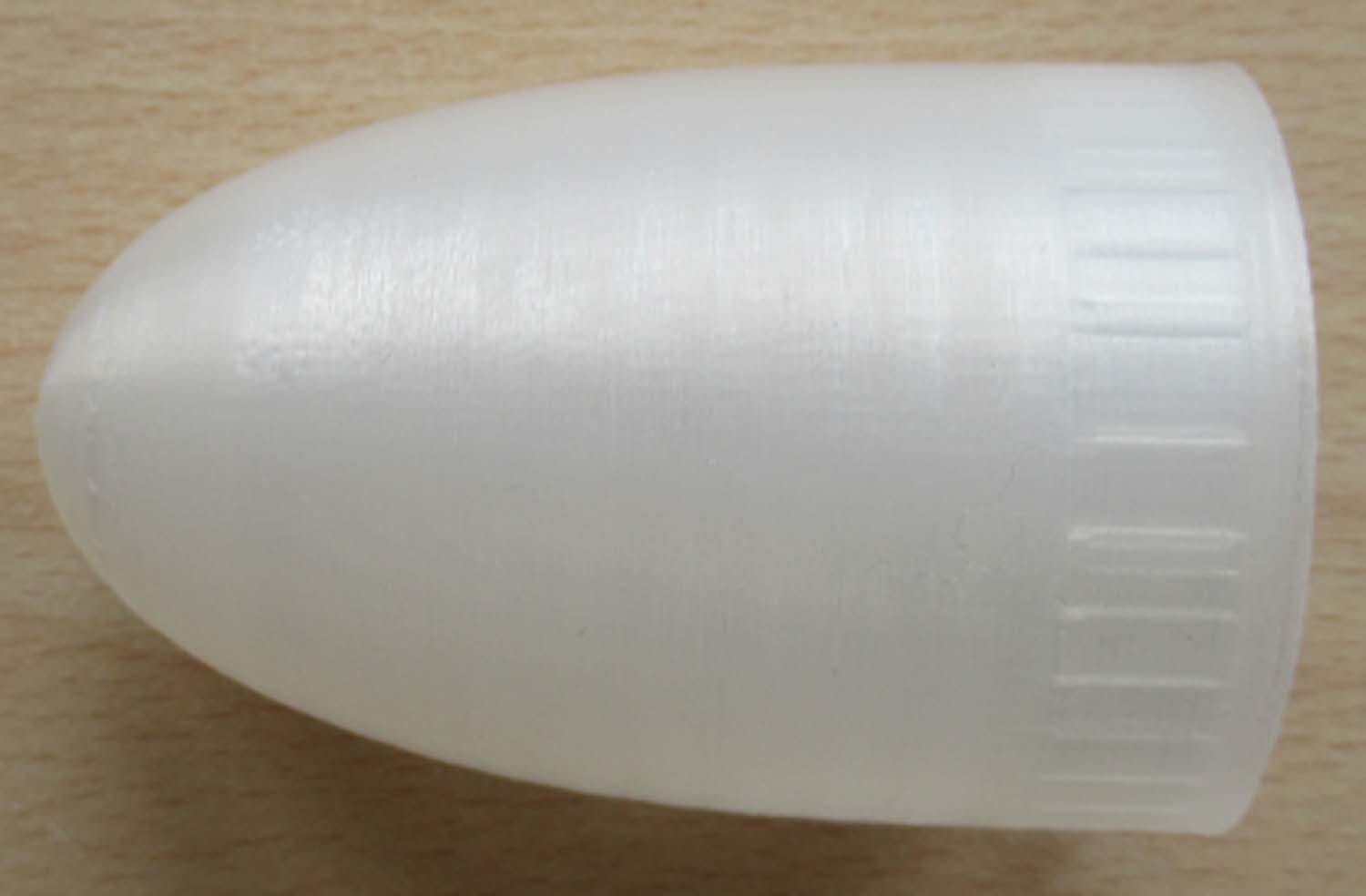

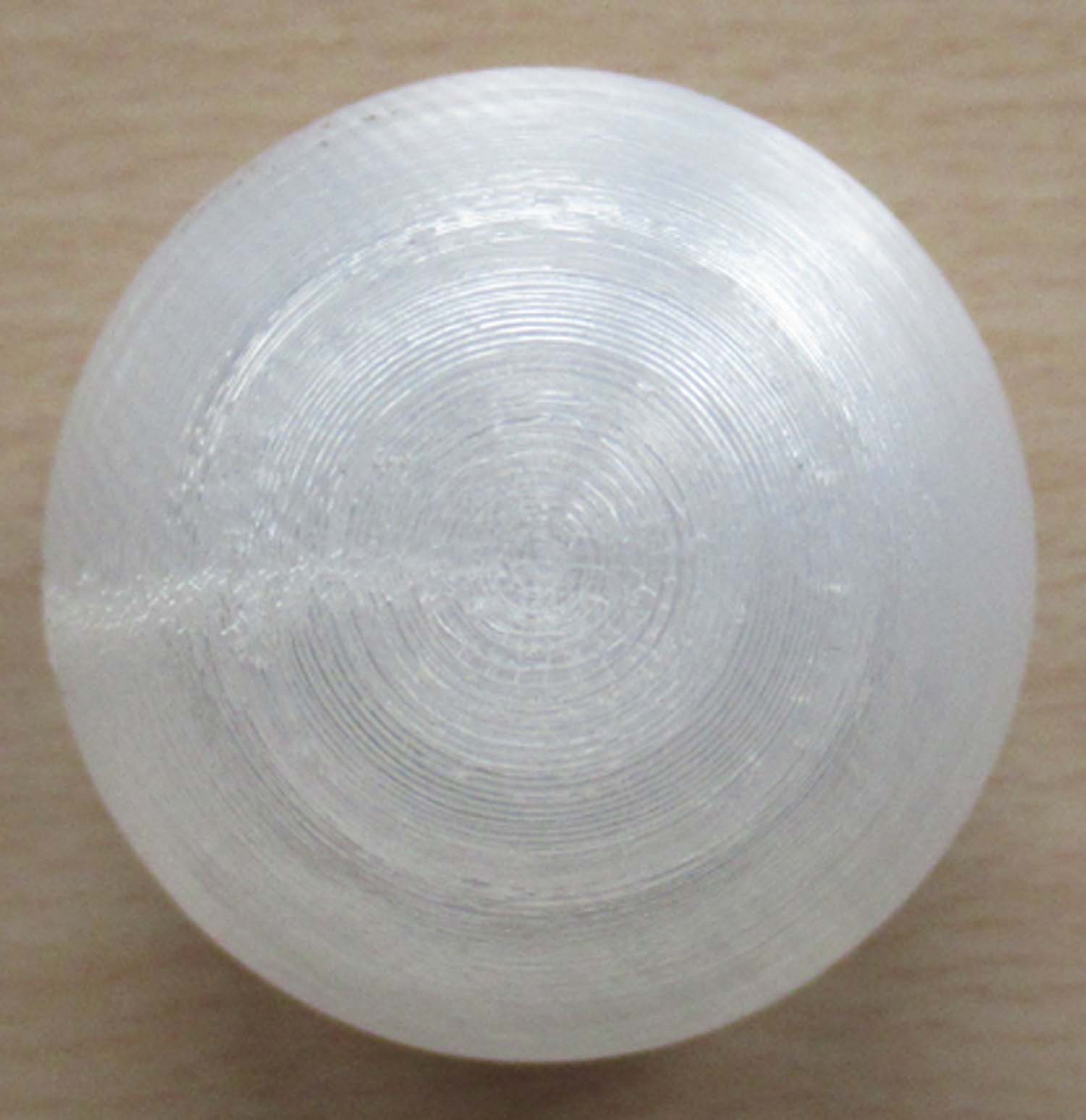

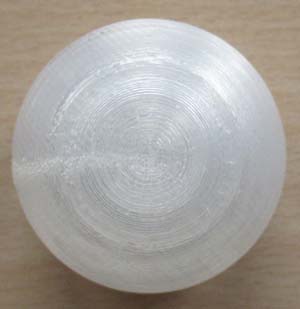

Reproduction Spitfire
Tail Light Lens (No 50 pg1 Light)
We have now reproduced this super rare
part. It is exactly the same as the original dimensionally.
The hard part was the internal thread I
managed to get a tool made to replicate the exact thread as
the original and so this will screw on to the original
Spitfire tail light fitting.
Click on pictures to enlarge

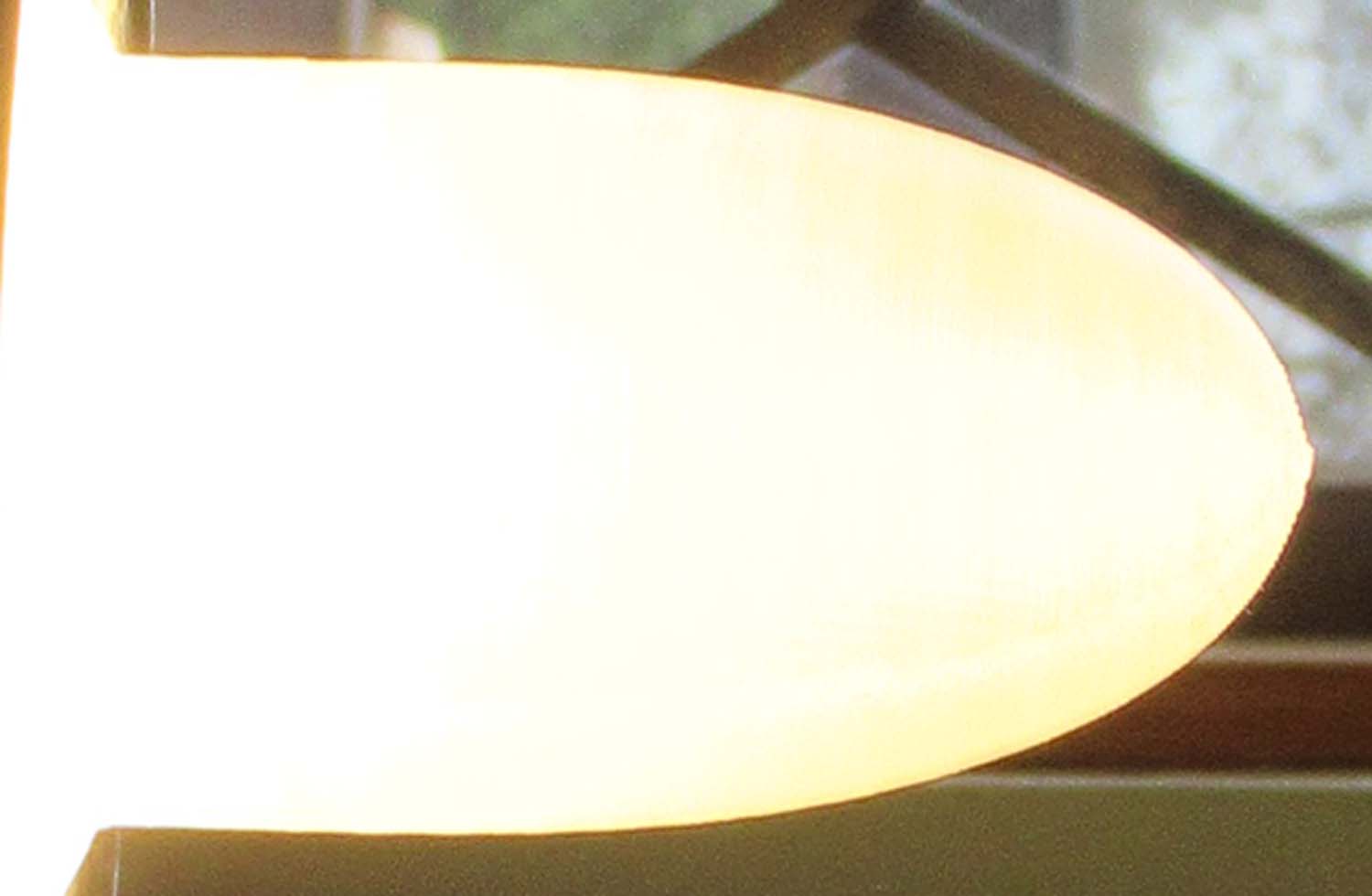

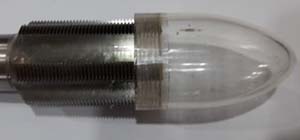

Above left is the
cutting tool I had made fitted to the original to prove the
thread is correct. The picture to the right shows the light
diffusing effect of our reproduction.
The lens is frosted as apposed to the
clear original but light will still shine through and it has
the effect of diffusing the light so most likely will be
more visible than original. Its made of a very tough plastic
and will not crack or break easily.
£75
|
|
Click on pictures to enlarge
 |

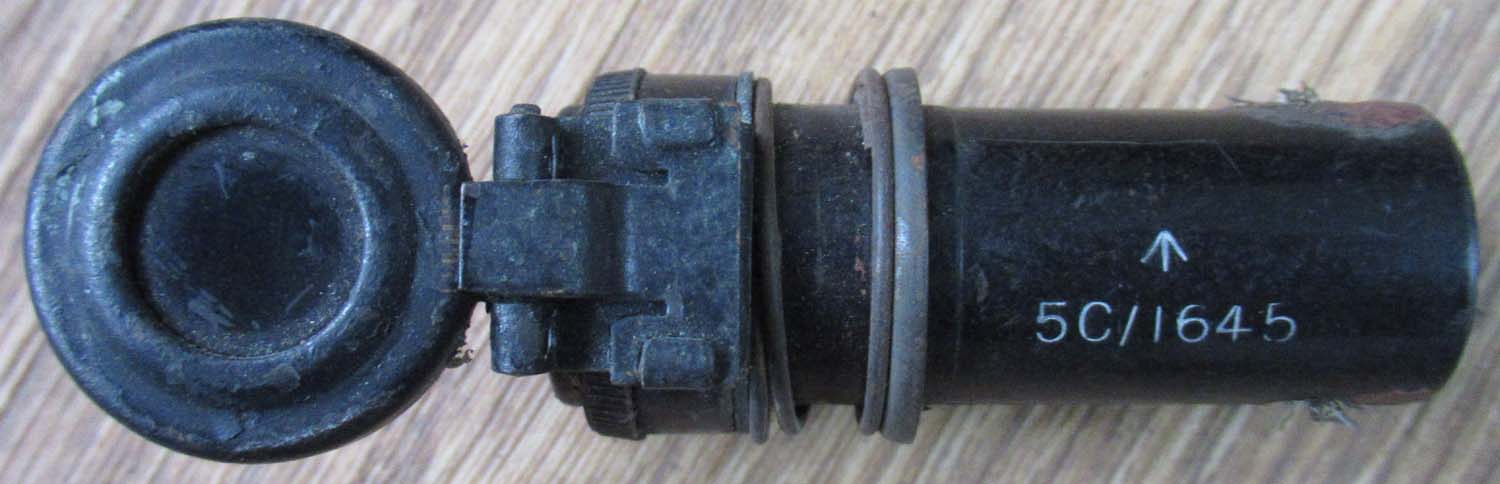

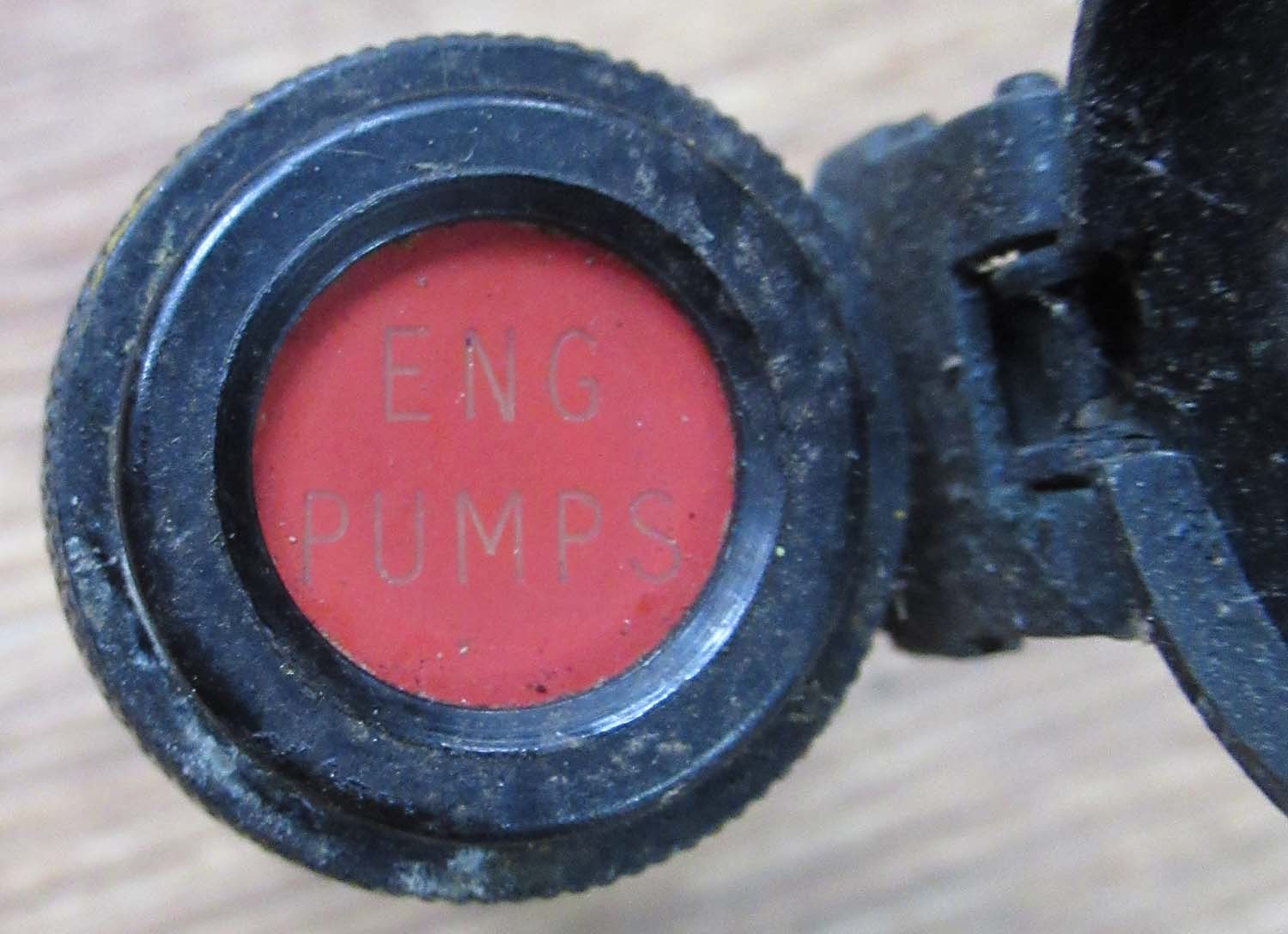

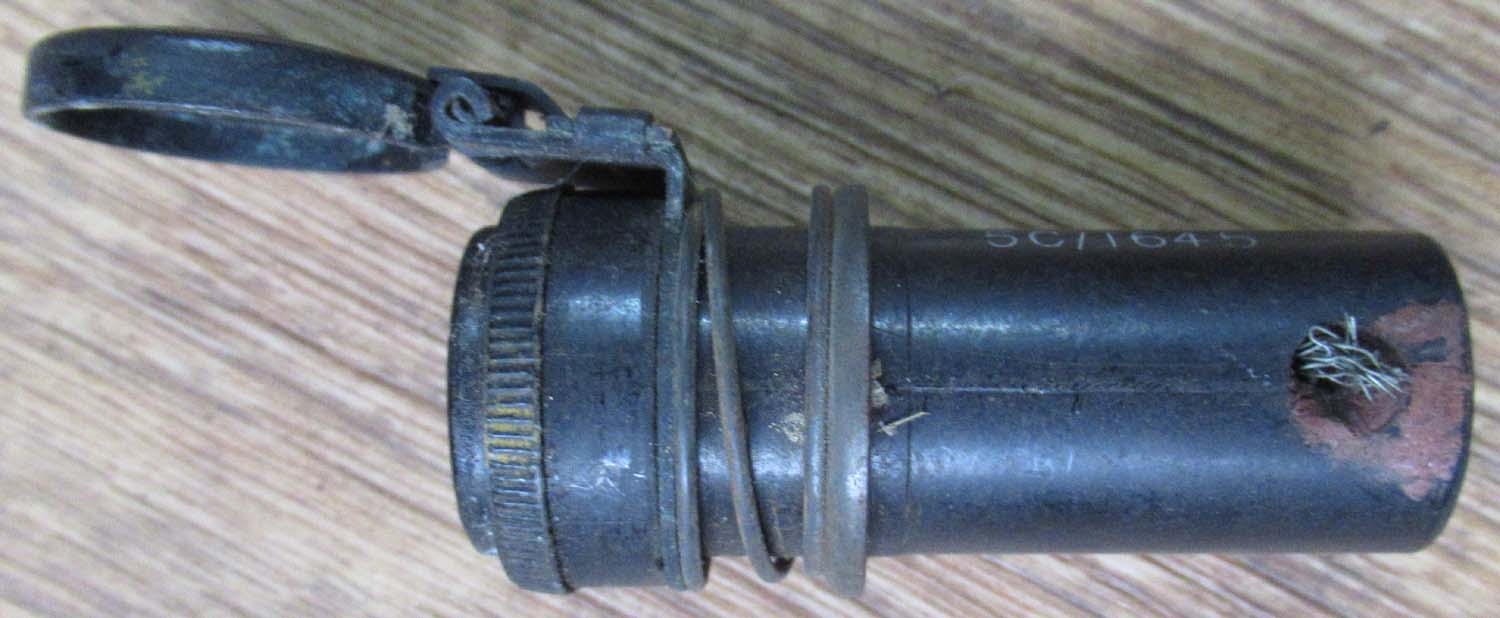

ENG PUMPS Red Warning Light
5CX/1645 (No 49 pg1 Light)
This is a red warning light used in the main panel of Spitfires for fuel pressure,
supercharger boost warning.
These lights were used
extensively throughout RAF wartime aircraft in including
heavy bombers including the Lancaster.
Ref No: 5CX/1645
Click on pictures to enlarge
£30 each
|
£20 each
|

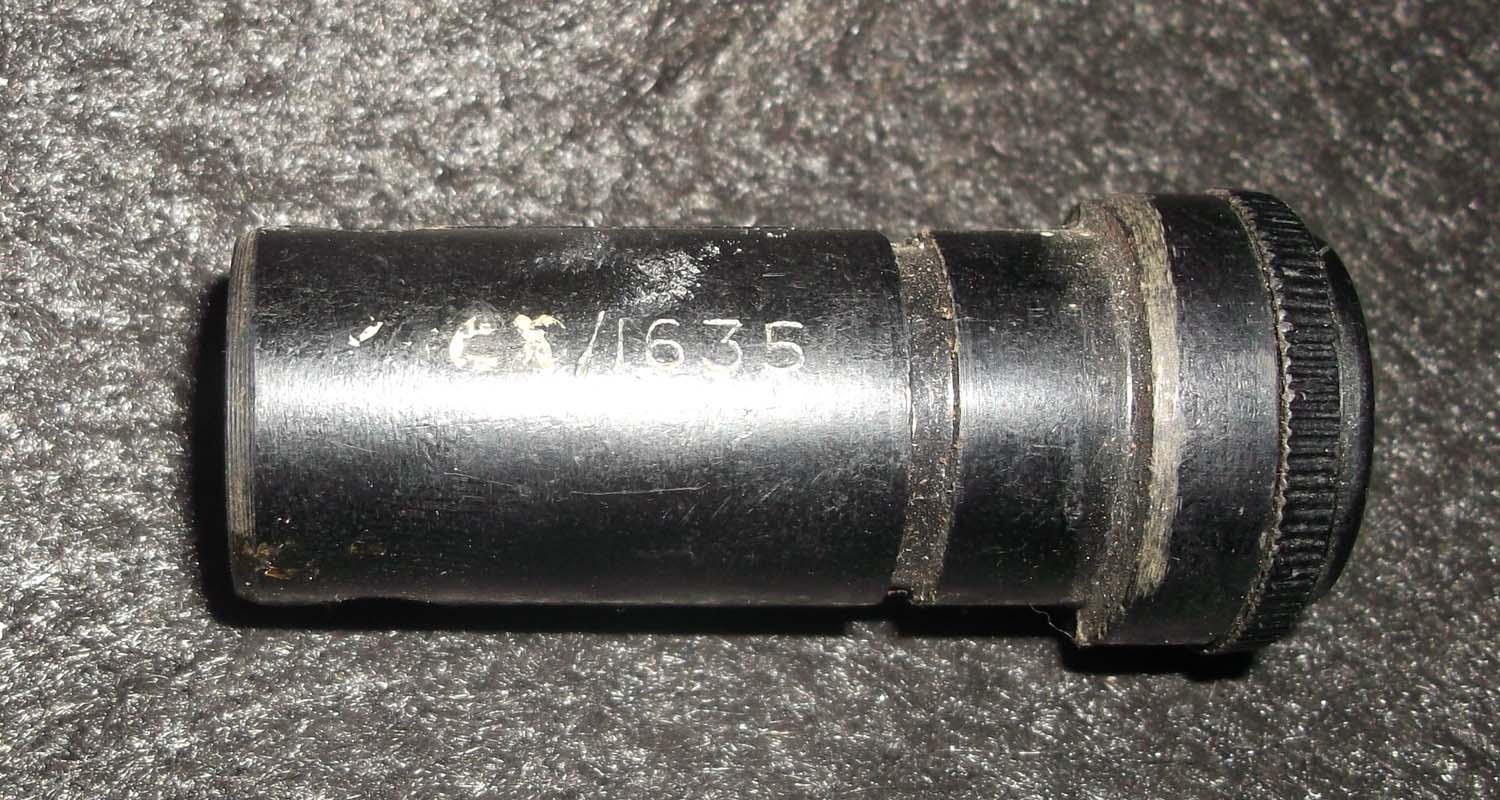

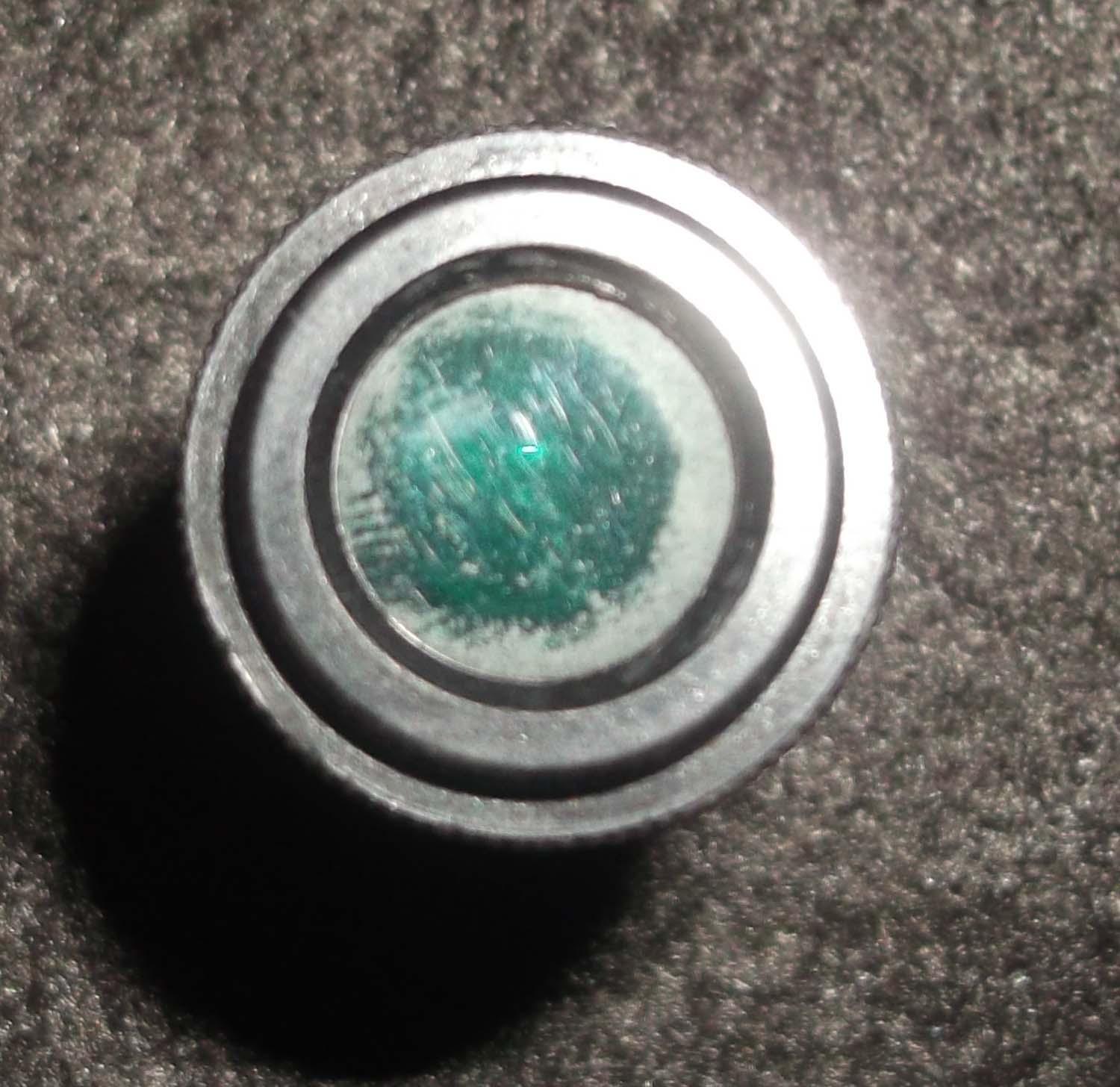

Green Warning Light
(No 48 pg1 Light)
Here we
have a RAF warning light. Similar to the ones listed
above however these have a green lens,
These
lights were used extensively throughout RAF wartime aircraft including
heavy bombers like the Lancaster.
Ref No: 5CX/1635
|
|
Click on
pictures to enlarge
|

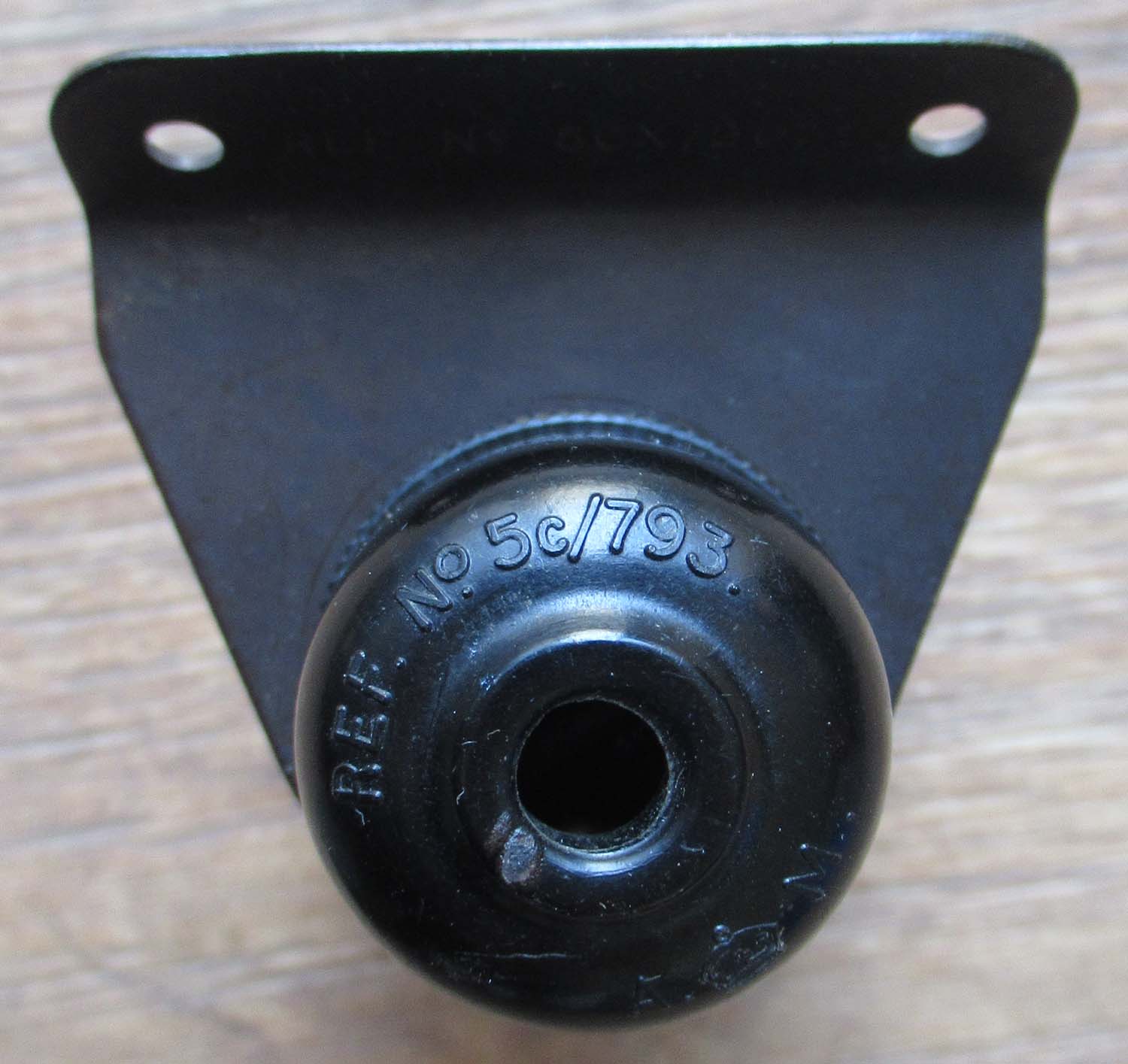

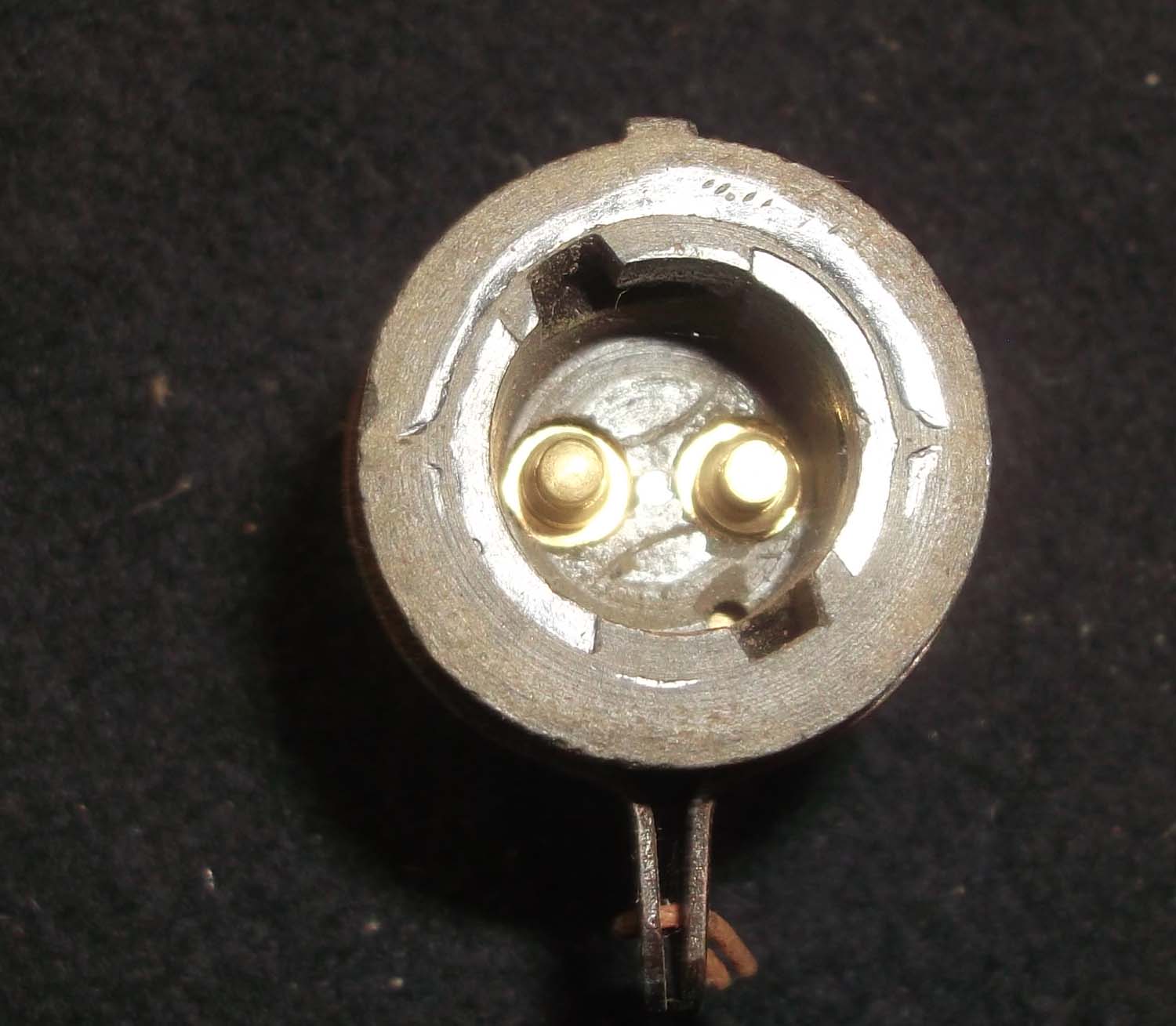

Cockpit Bulb Holder 5C/793
(No 47 pg1 Light)
Here we have a standard
cockpit bulb holder. Air Ministry marked.
Used in Spitfires as cockpit
lights and most
other types of RAF wartime aircraft.
Ref No: 5C/793
Several available
£25 each
|
|
Click on
the picture to enlarge
 |

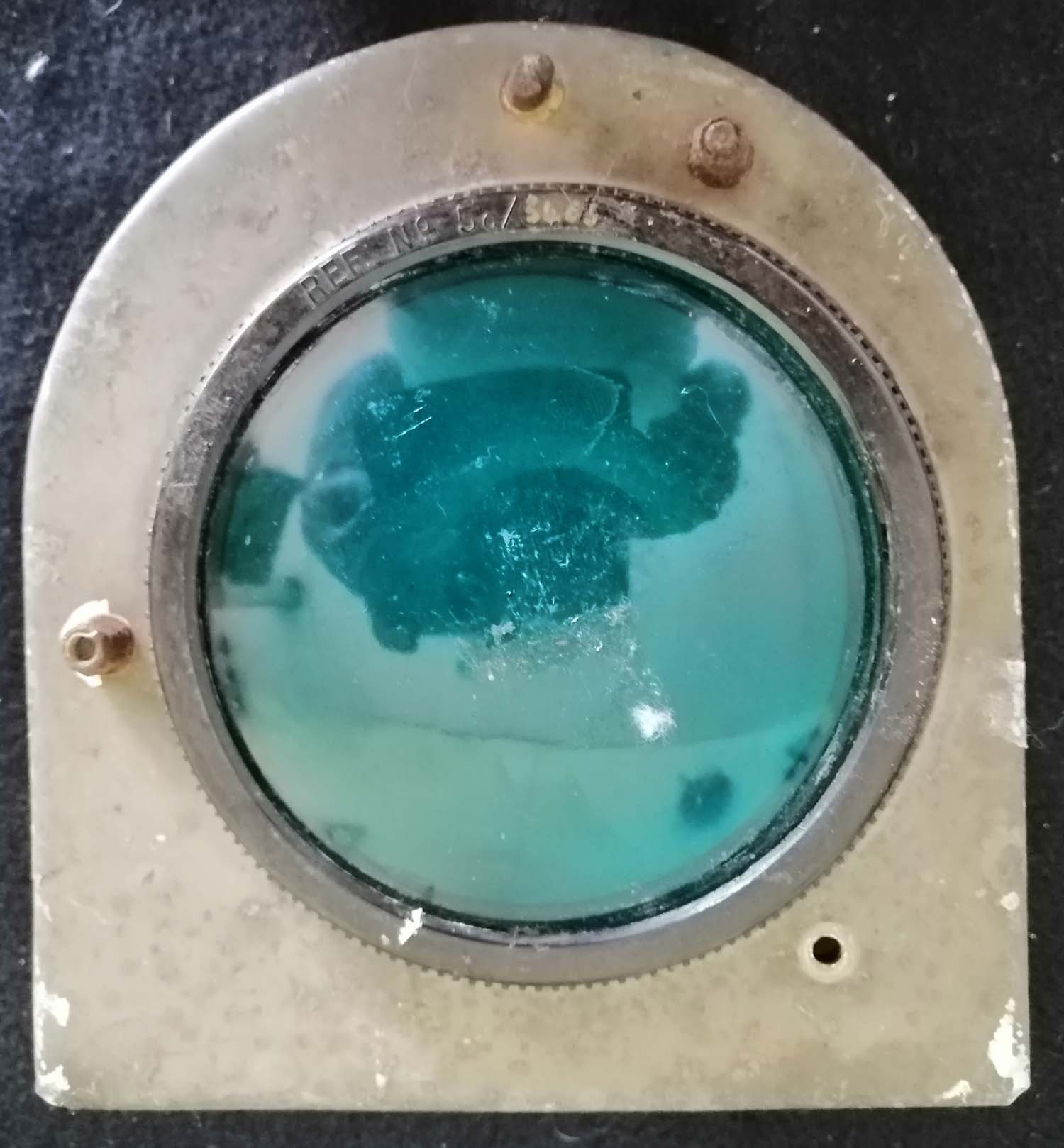

Downward ID Lamp
Green Lens & Bezel (No 46 pg1 Light)
Here we have a green lens
and bezel for a Downward
Identification Lamp.
This was used in
Spitfires, Mosquitoes (which had three) and many other RAF
Wartime aircraft. In good original condition.
Ref No:
5C/615
A few available
£40 each
|
|
Click on
the picture to enlarge
 |

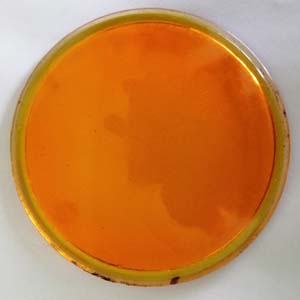

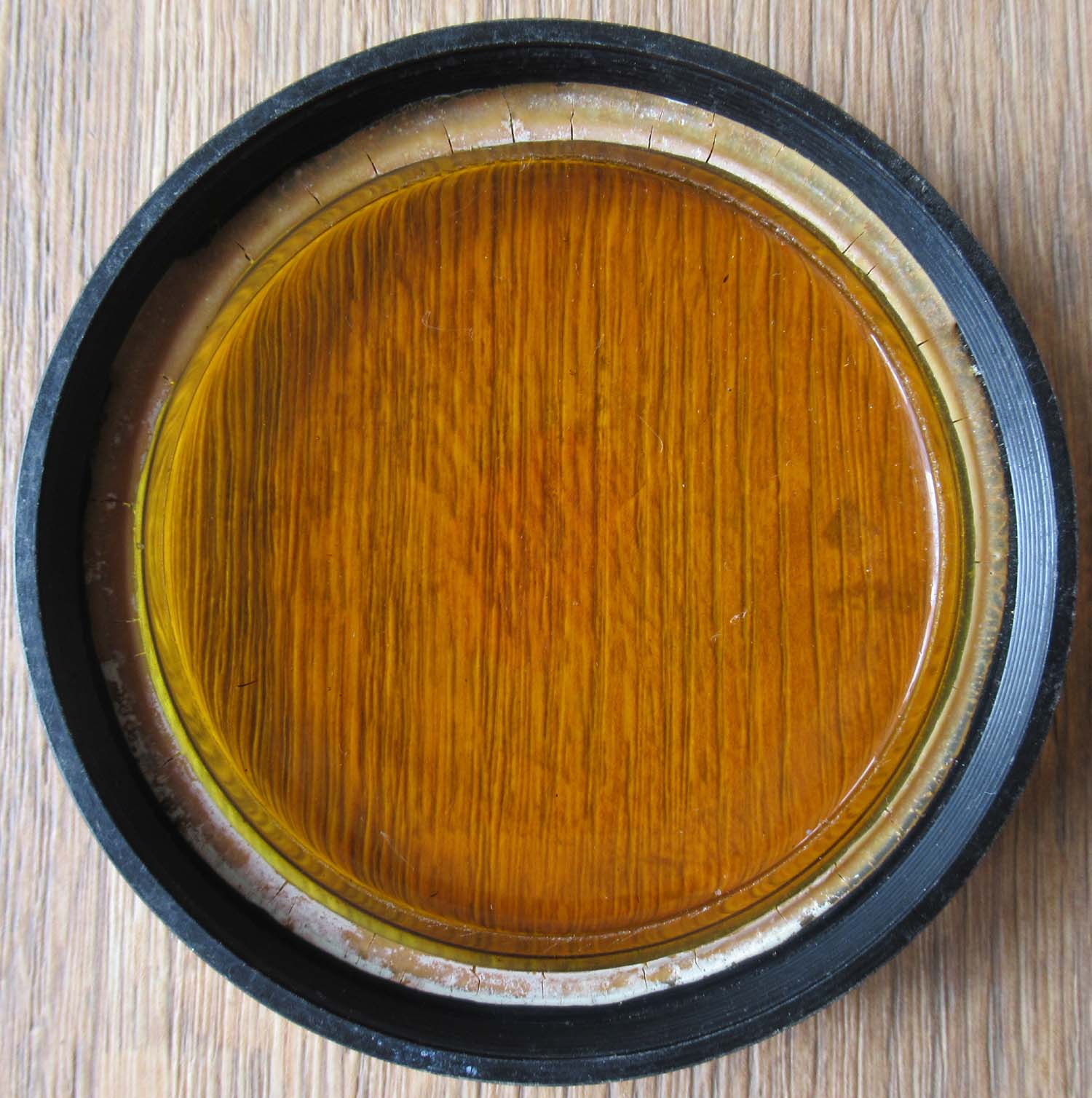

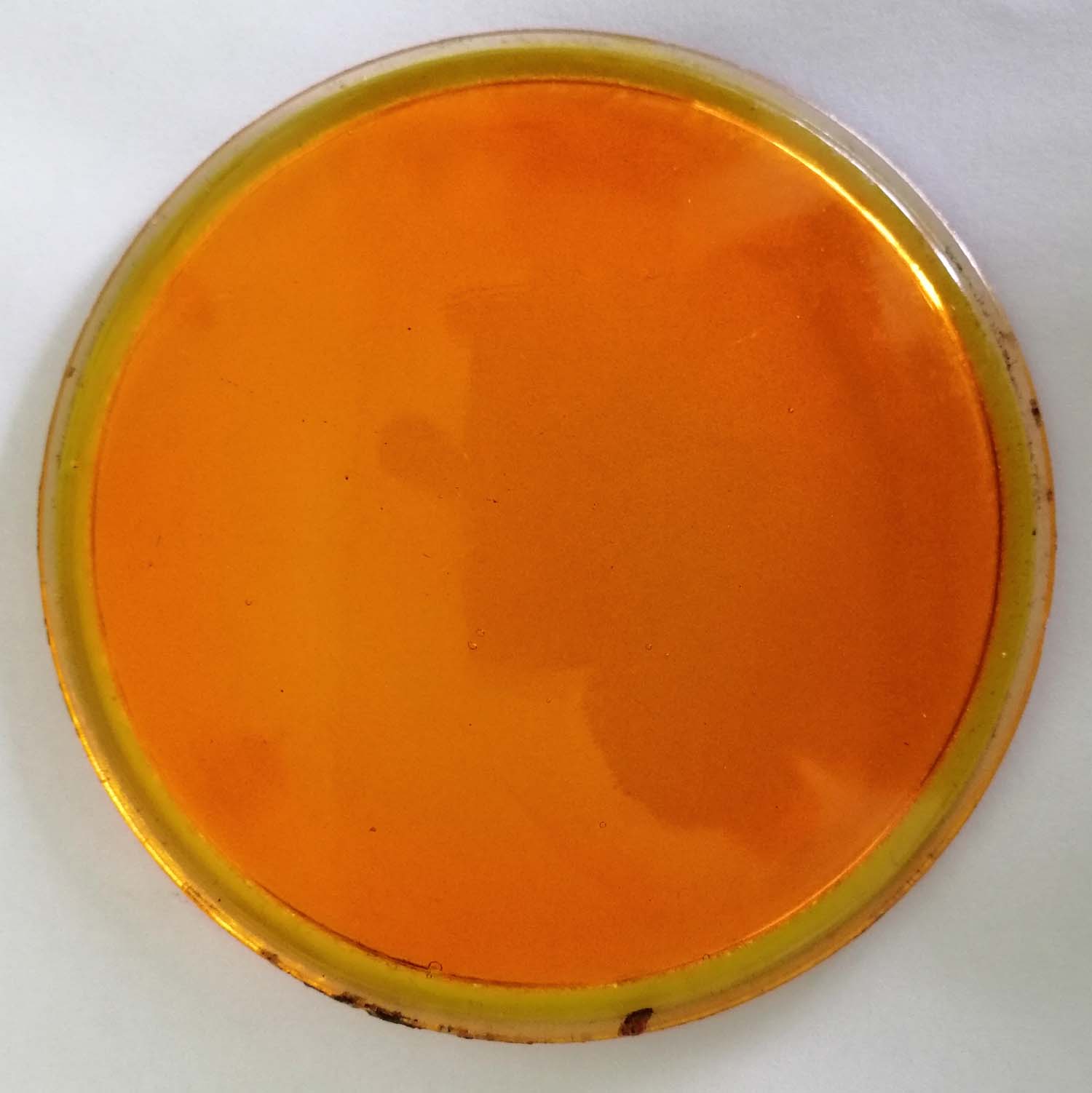

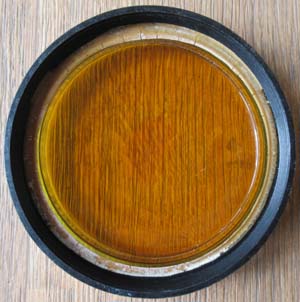

Downward ID Lamp
Orange Lens (No 45 pg1 Light)
Here we have an orange lens
for a Downward
Identification Lamp.
This was used in
Spitfires, Mosquitoes (which had three) and many other RAF
Wartime aircraft. In good original condition.
£25
|
|
Click on
the picture to enlarge
 |

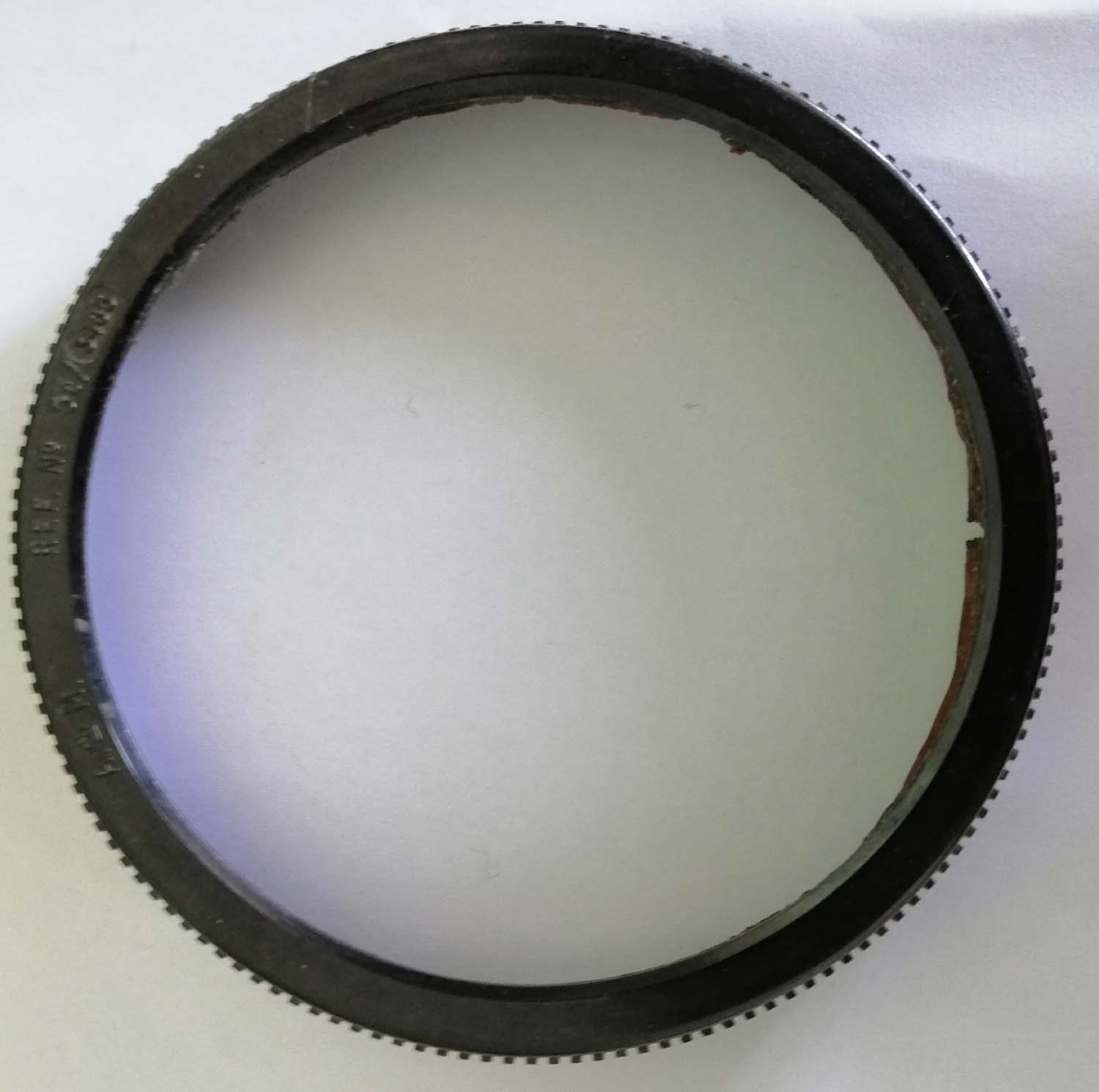

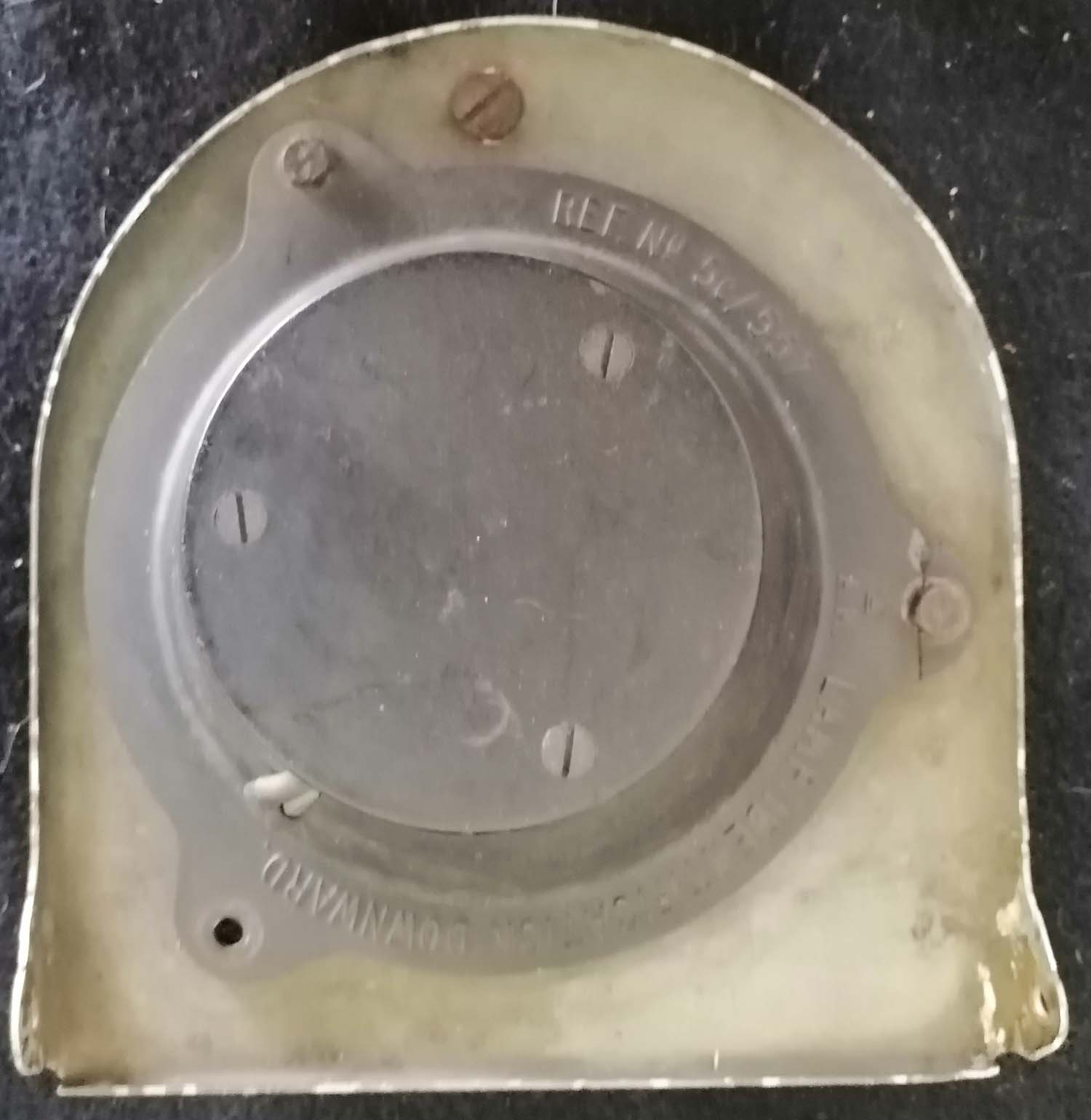

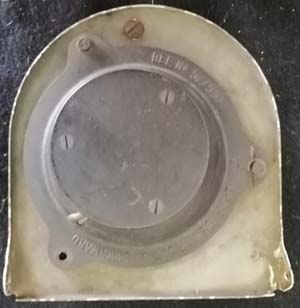

Downward ID Lamp
Bezel (No 44 pg1 Light)
Here we have a bezel
for a Downward
Identification Lamp.
This was used in
Spitfires, Mosquitoes (which had three) and many other RAF
Wartime aircraft. In good original condition.
Ref No:
5C/3465
£20
|
|
Click on
the pictures to enlarge
 |

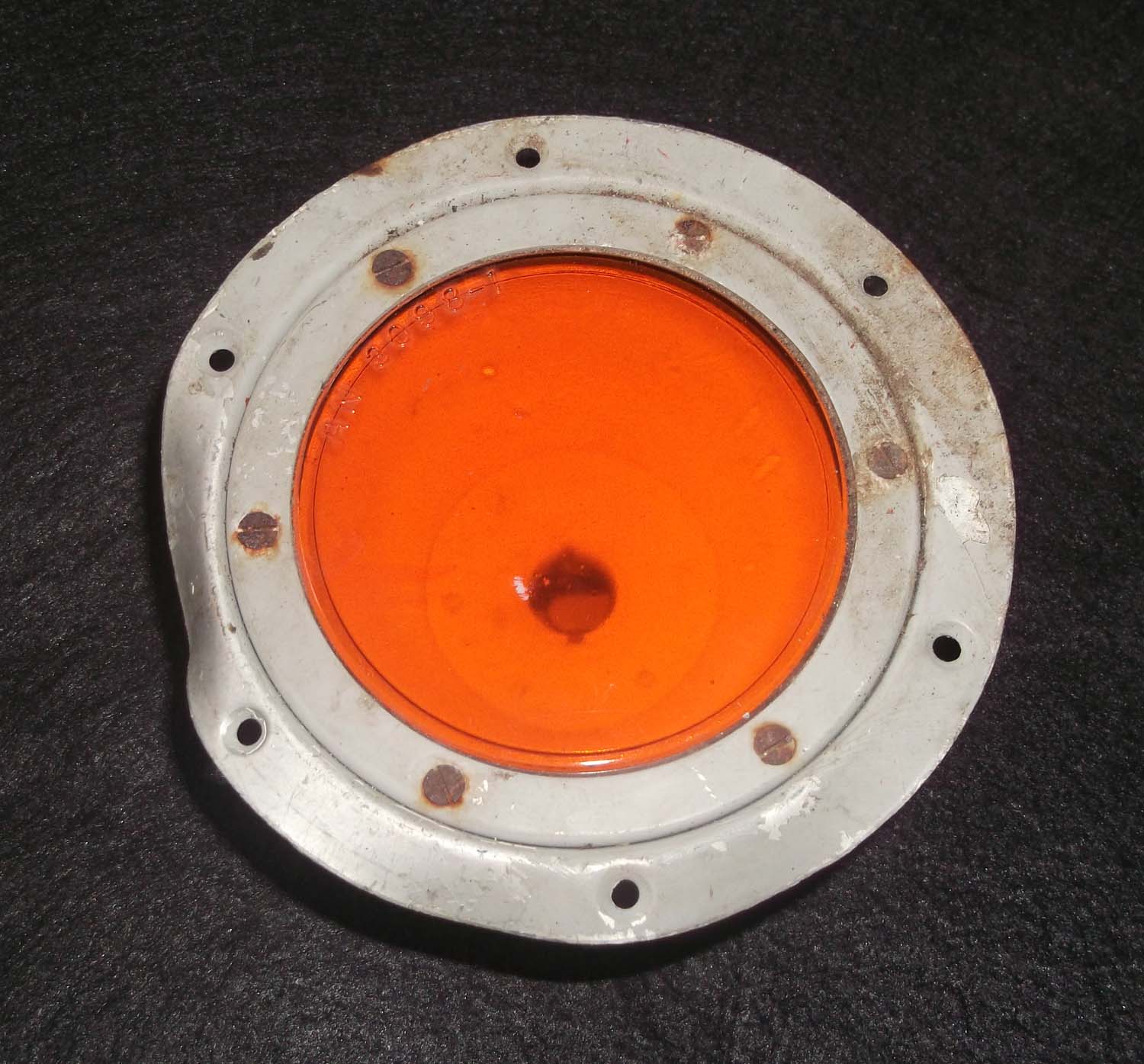

Downward ID Lamp
Orange Lens & Bezel (No 43 pg1 Light)
Here we have an orange lens
and bezel
for a Downward
Identification Lamp.
This was used in
Spitfires, Mosquitoes (which had three) and many other RAF
Wartime aircraft.
In good original condition.
Ref No:
5C/3465
Several available
£40 each
|
|
Click on
the pictures to enlarge
 |
Hurricane Downward ID Lamp with Bracket Green
(No 42 pg1 Light)
Here is a green downward ID
complete with its original Hurricane mounting bracket. The
ID light case has a broken lug you can see see this clearly
in the picture which expands.
Inspection
stamp on bracket: HA 213
Part
number: X58548
£285
|
|
Click on the
picture to enlarge
£75 each
|

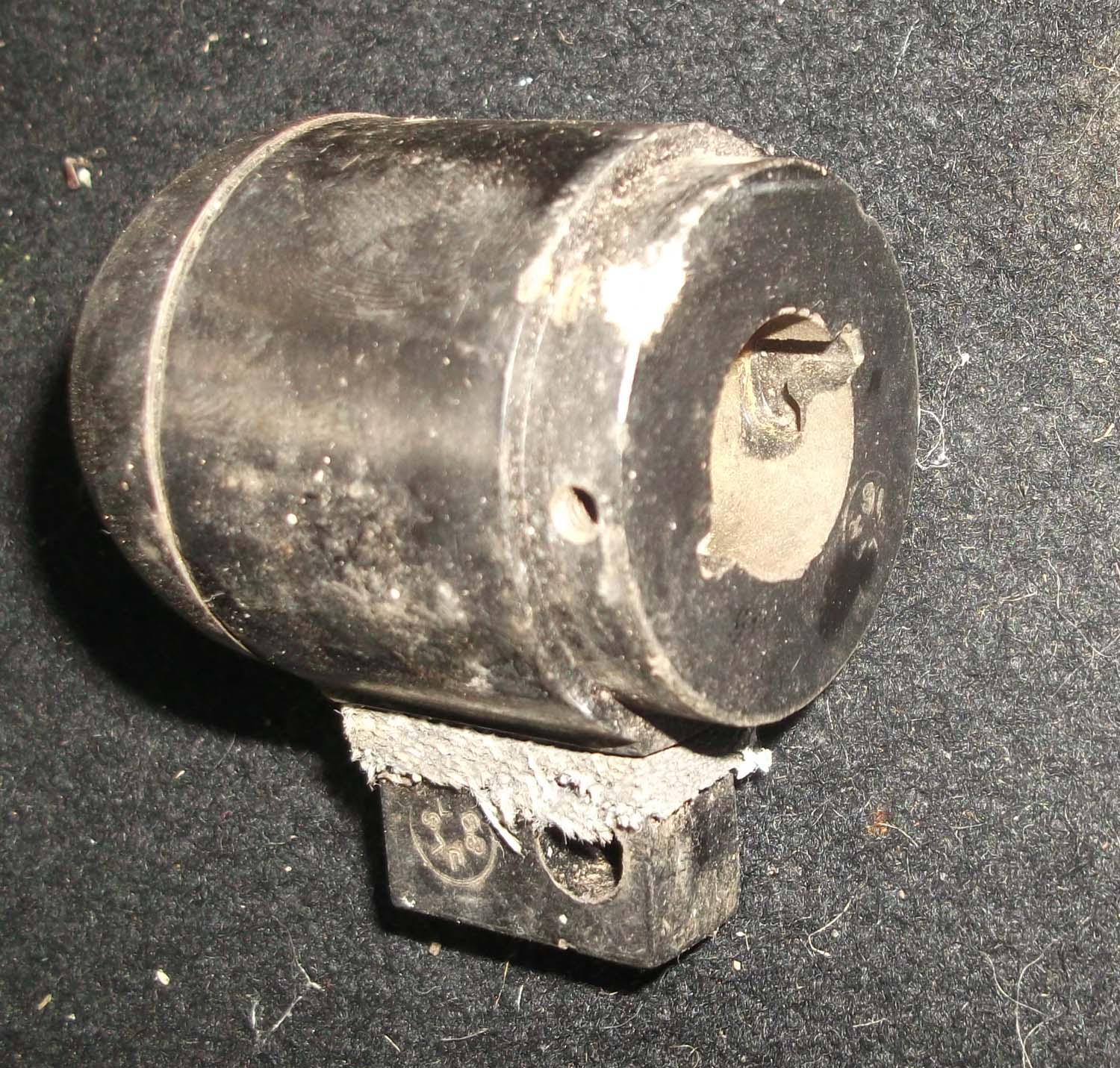

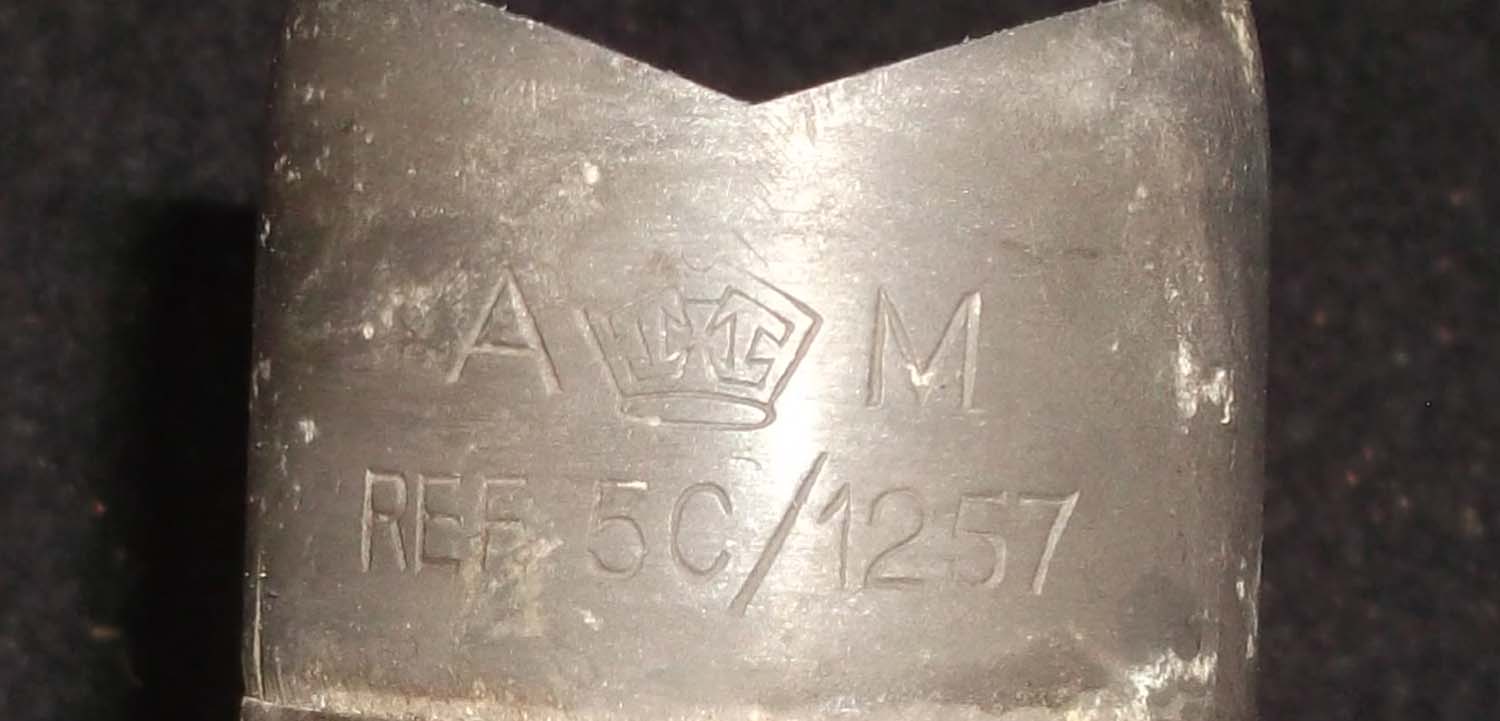

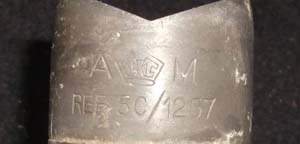

Type C Tail
Light
(No 41 pg1 Light)
Here we have a Type C tail
light. Air Ministry marked.
Ref
No: 5C/1257
Click on the
picture to enlarge
|
|
Click on the
picture to enlarge
£25
|

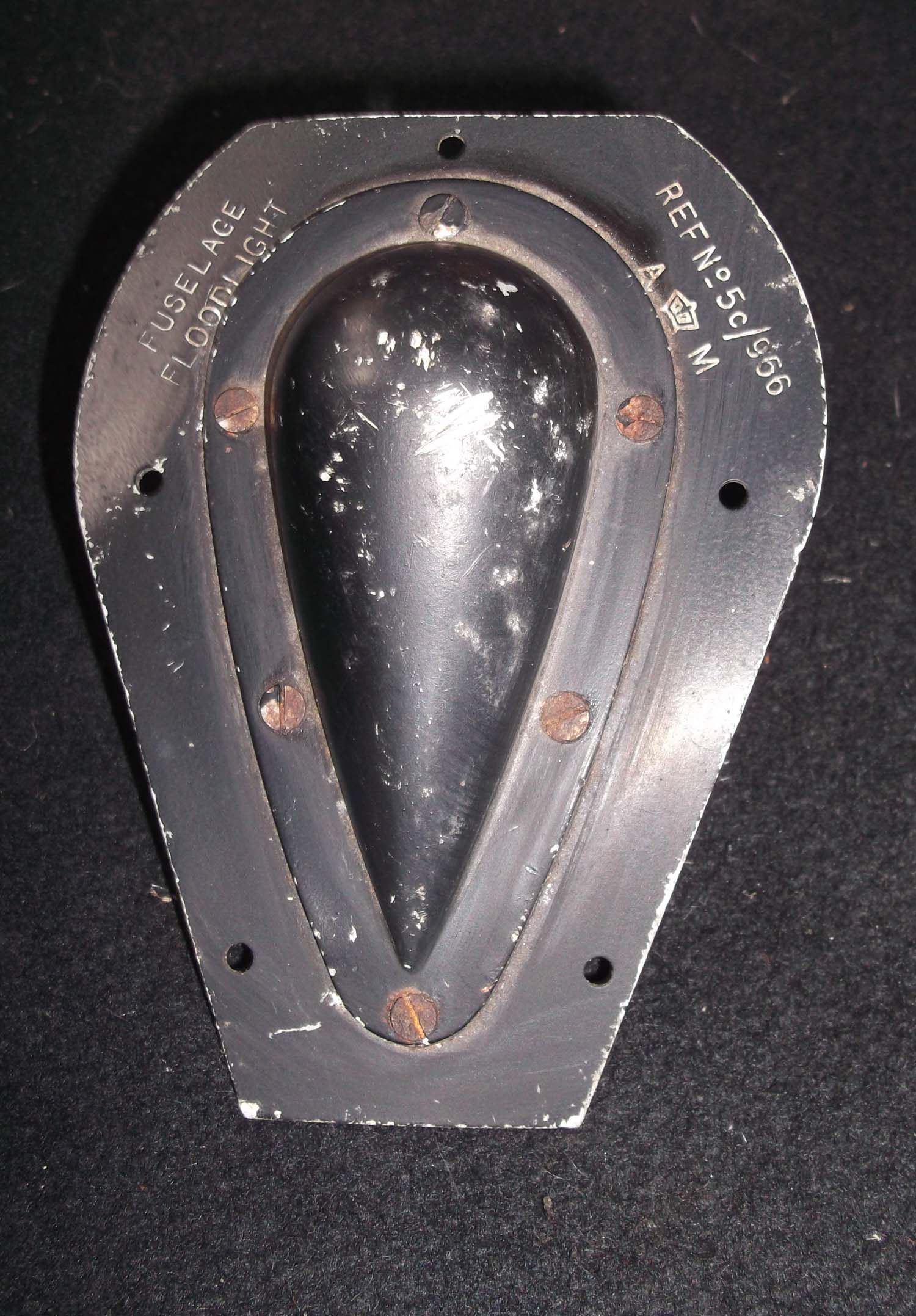

Fuselage
Floodlight
(No 40 pg1 Light)
Here is a nice wartime fuselage light with
protective cover.
It is Air Ministry Marked.
Ref No: 5C/966
Click on the
picture to enlarge
|
|
Click on the
picture to enlarge
 |
Tail Light (No
39 pg1 Light)
Tail light used in a variety
of wartime RAF aircraft.
Four available
£25 each
|
|
Click on the
picture to enlarge
 |
Lancaster Call Button
Light (No 38 pg1 Light)
Used by crew of Lancaster to communicate if intercom
failed.
Ref No: 5C/780
Several available
£25 each
|
|
Click on the
pictures to enlarge
|
Aldis Signalling Light (No 37 pg1 Light)
This is a beautiful piece. One of the best for conditions I
have seen. This lamps is complete with its original bulb,
both the lens tilt, and bulb flashing work perfectly. It is a well made piece. The targeting lens is clear with
its grid pattern intact.
Used in Bombers and larger aircraft for communicating with
morse when radio silence need to be maintained.
Ref No: 5A/760
Click on the
picture to enlarge
£275
|
|
Click on
the pictures to enlarge
 |
Signal Light (No
36 pg1 Light)
Here we have an Air
Ministry marked signal
lamp.
Used in bombers to signal each other and maintain radio
silence.
Ref
No: 5A/2334
Click on
the picture to enlarge
£95
|
|
Click on
the picture to enlarge
 £225
|
RAF Signal Light
2 (No 35 pg1
Light)
Here is an RAF signal lamp in
excellent complete condition with blue lens.
Ref No:
5A/1151
Click on
the picture to enlarge
|
|
Click on
the pictures to enlarge
 |
Hotspur Navigation
Lights
(No 34 pg1
Light)
Here we have navigation
lights for a Hotspur Glider.
Uses a standard wartime
bulb holder attached.
Air Ministry marked.
Ref
No: 5C/1676
£80
|
|
Click on
the pictures to enlarge
|
Landing Light 2
(No 33 pg1 Light)
This landing light is
large and may be a bomber or larger aircraft version
appears in great condition apart from a crack in the glass
see the picture.
These open and close powered
by the motor shown below.
Click on
the picture to enlarge
£195
|
|
Click on
the picture to enlarge
 |
Battery Box and
Lamp (No 32 pg1 Light)
Rare and unusual Air Ministry crown
marked battery box and light.
The lens is missing
from the Lamp
Ref
No: 5A/1968
£40
|
|
Click on
the picture to enlarge
£95
|
Cockpit Light MK
II (No 31 pg1
Light)
Here we have a Mk.II cockpit
light.
Used in a variety of
multi-engined RAF aircraft .
This is in a good condition
in its original box.
Click on
the picture to enlarge
|
|
Click on
the picture to enlarge
 |
Inspection Light
(No 30 pg1
Light)
A nice small RAF
Wartime inspection light.
It has original
retractable cable however the plug is missing
£35
|
|
Click on
the pictures to enlarge
 |
Inspection Light
2 (No 29 pg1 Light)
Here is another variation
of the inspection light.
Nicely marked with Air Ministry
crown.
The attached plugs are
the standard type designed to plug into the aircrafts 12 or
24 volt electrical system.
Ref No: 5C/369
£35
|
|
Click on
the pictures to enlarge
|
Wartime Morse Light
(No 28 pg1 Light)
This was
fitted behind the cockpit on the top fuselage of the
Spitfire, probably lots of other applications.
Nice air ministry crown denotes that this part was manufactured
before the end of 1943.
These were used to flash Morse to
other Fighters in the squadron operating from the Morsekey
in the cockpit thus allowing communication whilst retaining
radio silence.
Ref No: 5C/909
£55
|
Click on
the pictures to enlarge
|
Ultra Violet Cockpit
Light
(No 27 pg1 Light)
Ultra violet lighting was
intended to overcome the disadvantages associated with
luminous cockpit dials i.e. blurring, no dimming potential
and reflection onto the cockpit windscreen.
Fitted to late Lancaster's and many other RAF wartime aircraft.
Ref No: 5C/1878
£75
|
|
Click on the
picture to enlarge
Seen under Peter's superb
Battle of Britain MK I Hurricane R4118 which He rescued from
India and restored to its present superb flying condition.
|
Upward ID Lamp Base
(No 26 pg1 Light)
This is an upward ID Lamp base, fitted to the Hurricane and
Spitfire and probably many other RAF wartime aircraft.
One
of these was supplied for
Peter Vacher's MK 1 Hurricane so they are in good
serviceable condition. Air Ministry marked.
We desperately need lenses for these
so
contact us if you have any available.
Ref
No: 5C/645
Ref No:
5C/599
Four available
£25 each
|
|
Click on
picture to enlarge
 |
Bristol Blenheim Gunsight
Bulb Holder (No 25 pg1 Light)
Here is the spare bulb holder
for the Bristol Blenheim.
You can still make out the words
on the item "spare lamps gun sight".
£55
|
|
Click on
picture to enlarge
 |
Cockpit Light 1
(No 24 pg1 Light) This is a cockpit light
used in various wartime aircraft complete with bracket
£125
|
|
Click on
picture to enlarge
£95
|
Cockpit Light 2
(No 23 pg1 Light) This is a cockpit light
used in various wartime aircraft.
Click on
picture to enlarge
|
|
Click on
picture to enlarge
£95
|
Cockpit Light 3
(No 22 pg1 Light) This is a cockpit light used in various wartime aircraft.
Click on
picture to enlarge
|
|
Click on
picture to enlarge
£95
|
Cockpit Light 5
(No 21 pg1 Light) This is a cockpit light used in various wartime aircraft, complete with bracket.
This one differs from the
ones above as this has an amber lens.
Click on
picture to enlarge
|
|
Click on
pictures to enlarge
£45
|
Cockpit Light 6
(No 20 pg1 Light)
Here we have a type C-5 US Air Corp
cockpit light. 28 volt.
Manufactured by Grimes MFG
Company.
D-2332
Click on
picture to enlarge
|
|
Click on
picture to enlarge
 |
Drone Station Receiver
Box (No 19 pg1 Light)
Here we have a drone station
receiver box.
As fitted to Sunderlands.
Air Ministry marked.
Ref: 5C/779
Two
available
£65 each
|
|
Click on
pictures to enlarge
 |
RAF Bomber Landing
Lamp
Type H (No 18 pg1 Light)
This is a type H type landing
lamp and can be adjusted between 20-45 degrees.
It is
fitted in pairs to the Halifax, Stirling, Sunderland and
Wellington. This listing is for one lamp. Air Ministry
marked.
Ref No: 5C/773
£175
|
|
Click on
pictures to enlarge
£399
|
Hawker Hurricane
Type G Landing Lamp (No 17 pg1 Light) This is a near mint
unused G Type landing lamp as fitted to the Hawker
Hurricane and the Boulton Paul Defiant.
In original box.
Ref No:
5C/722
Click on
pictures to enlarge
 |
|
Click on
picture to enlarge
 |
Landing Light
Motor Control
(No 16 pg1 Light)
Here we have a motor used to
tilt the landing lights.
Ref
No: 5UD/1517
Click on
picture to enlarge
£75
|
|
Click on
picture to enlarge
Four available
£35 each
|
Clear Receiver Box
(No 15 pg1 Light)
AM Ref:
5C/781
Click on
picture to enlarge
|
|
Click on
picture to enlarge
£40
|
RAF WW2 Life Jacket Lamp
(No 14 pg1 Light)
Here we have a Easco life jacket
light.
This was used by British
Airman and was found attached to the life jacket.
I have plugged in the
battery and it still turns on the light.
Ref No:
540862
Click on
picture to enlarge
 |
|
Click on
pictures to enlarge
£25
|
Light Bulb
Adaptor (No 13 pg1 Light)
Here we have a light bulb
adaptor.
It adapts screw cap lights
to take bayonet bulbs.
 |
|
Click on
pictures to enlarge
 |
Dinghy Signal
Light (No 12 pg1 Light)
Here we a light that attached to
the dinghy of ditched airman to help locate them.
It is in good condition
and in the original box.
This was used by both the
RAF and the USAAF.
This carries the reference
number 5CX/5410
£60
|
|
Click on
pictures to enlarge
Two available
£30 each
|
Red Lens For
Signal Lamp (No 11 pg1 Light)
Here we have a lens as used on RAF
signal lamp.
The condition of the lens
has some surface rust.
Ref No:
5A/2337
Click on
pictures to enlarge
|
|
Click on
pictures to enlarge
|
Circuit Tester
Bulbs (No 10 pg1 Light)
Here we a case of circuit
tester bulbs.
The box carries the
ref no: 5G/310
The bulbs
carry a
ref no: 5G/308
Click on
picture to enlarge
£80
|
|
Click on
picture to enlarge
 |
Aldis Lamp Bulb (No 9 pg1 Light)
Genuine bulb for the Aldis signal lamp. 24v 30w
Ref: X954402
Multiples available
£15 each
|
|
Click on
picture to enlarge
 |
WW2 Aerial Flash Bulb (No 8 pg1 Light)
Here we have a flash bulb as used on
RAF bombers.
It was used
to illuminate the target as all bomb aimers were
expected to take a picture after their bombs were released.
£25
|
|
Click on
pictures to enlarge
|
Blue Lens Cover (No 7 pg1 Light)
Here we have LARGE blue lens cover with a 17.5 cm
diameter.
Ref No: 5A/3554
£25
|
|
Click on
picture to enlarge
|
Grimes Amber Downward ID Light (No 6 pg1
Light)
Here we have a amber downward ID light.
26volt.
The lens is in good condition, however
the edge is slightly bent but looks like it could be straightened.
Manufactured by Grimes.
Ref No: B-2389
£45
|
|
Click on
picture to enlarge
 |
Grimes Type A-8 Fluorescent Light (No 5
pg1 Light)
Here we have a florescent light as used by the
United States Army Air Corp.
Used in aircraft of the USAAC.
Ref No: B-1856
Click on
picture to enlarge
£55
|
|
Click on
picture to enlarge
|
Harrier Light Cover (No 4 pg1 Light)
Here we have light cover as used on the
Harrier Jump Jet.
Ref No: A246476
Two available
£125 each
|
|
Click on
pictures to enlarge
|
KC MFP Clip-On Light (No 3 pg1 Light)
Here we have an interesting clip-on
light.
It has two bulbs and is controlled by
what appears to be a dimmer switch on the side of the case.
It is marked with a Kings Crown with MFP
stamped inside.
It has no other markings or numbers to
identify it.
£125
|
|
Click on
pictures to enlarge
|
RAF Test Lamp 5G/2217 (No 2 pg1 Light)
Here we have an test lamp as used by
the RAF.
Ref: 5G/2217
Three available
£25 each
|
|
Click on
pictures to enlarge
£20
|
Small Blue Tail Light Lens (No 1 pg1 Light)
Here we have a blue navigation light
lens.
It is small; measuring 1 1/2 inches.
I am unsure as to the aircraft this
would have been used on.
Click on
pictures to enlarge
|
|
|
Cockpit dimmer switch
(Nos 7 Electrical switches page 2 ele)
AM Ref: 5C/1181
Used on Lancaster Bomb
aimers panels and other applications such as navigators
lamps ect mainly in Heavy bombers. Some are solid
brass and can be polished.
Click Here to See
this on Our Electrical Page
|
|
Click on
pictures to enlarge
 |
OSRAM Gunsight Bulb
(No 2 pg2 Gun)
Here we have gunsight bulbs. These are unopened and in
their original packet.
22V 12W M.C.C
GUNSIGHT X951260
Click on
pictures to enlarge
Several available
£10 each
Follow link to order on our
Gunsight page two
|
|
Click on
pictures to enlarge
|
24V Reflector Gunsight Bulbs (No 1 pg2
Gun)
Here we have a genuine 24 volt wartime bulb for the
standard MKII reflector gunsight
In working order to bring
that gunsight back to life.
Click on
pictures to enlarge
£15
Follow link to order on our
Gunsight page two |
