Aircraft reference and information.
This is for information, with contributions from
Spitfire spares members.
Pictures of members panels and info
for the Warbird enthusiast.
1) Fairey flycatcher
(repro) S1287 By OS
2&3 ) Supermarine
Seafire S17 SX137 by OC
Obviously Spitfire variant, but not
a lot to go
on. You can just make out the small late type fuel gauge, but the giveaway
is the cylinder priming pump bottom right, making it a Griffon powered type.

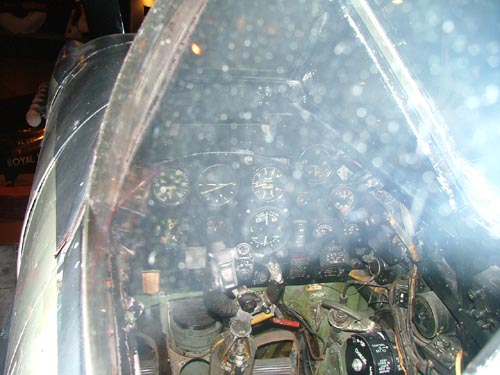

SUPERMARINE SEAFIRE COCKPIT By BT

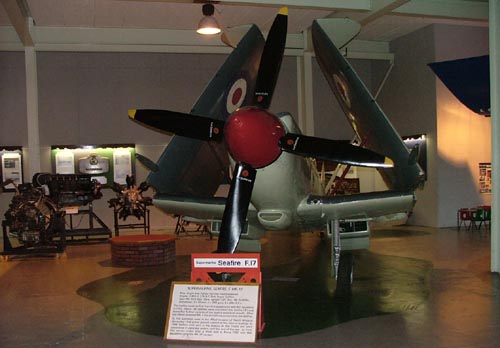

3. The airframe presumably of the above cockpit. A Griffon powered
Seafire with a four blade prop must be F.15 or F.17, and the bubble canopy
as above makes it F.17 (Mk XV11)
SUPERMARINE SEAFIRE F.17 SX137 By BT

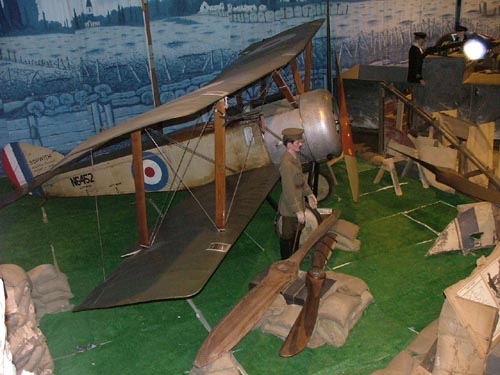

4) Sopwith Pup (repro) N6452 by OC
Dihedral on the top wing, so it's not a
Camel, it's
SOPWITH PUP N6452 BY BT

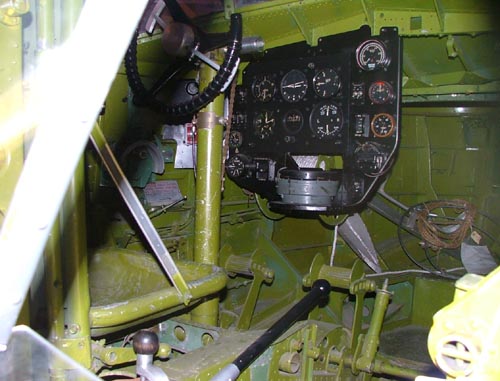

Supermarine Walrus
I cockpit L2301 By OC

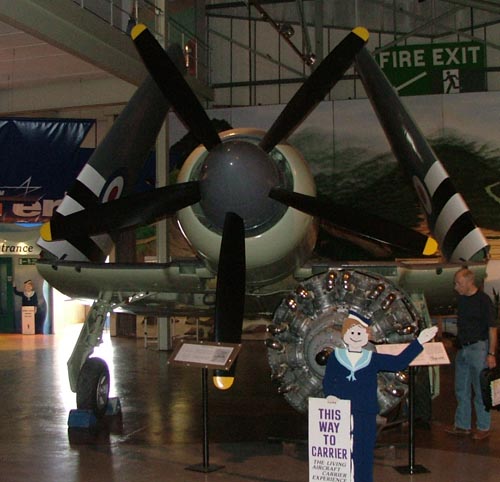

6) Hawker sea fury
FB-11 WJ231 By OC

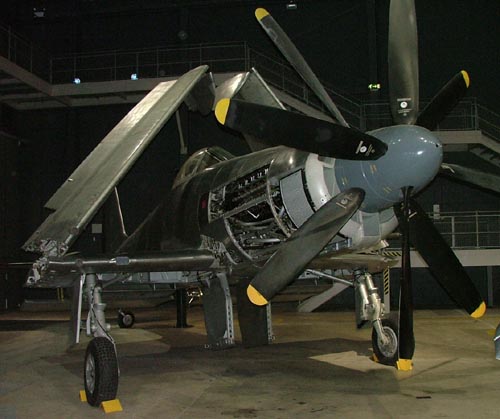

7&8) Westland Wyvern
TF-1 VR137 + Rolls-Royce Eagle engine By OC
An interesting type although not really successful. This
is the
early version; only about ten built of a total of 127.

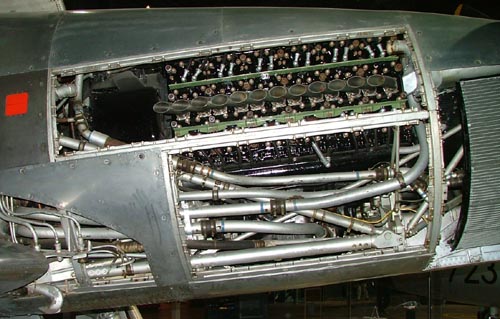

8. A close up of the reason for the demise of the TF1. A twenty four
cylinder sleeve valve engine driving contra rotating props, quickly replaced by the turboprop Armstrong Siddeley Python of
the TF.2
ROLLS ROYCE EAGLE 3550 HP ENGINE

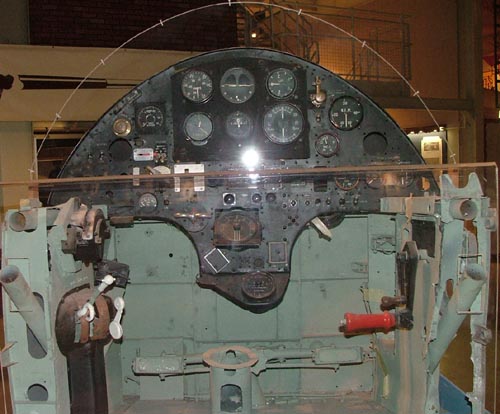

9) Fairey Barracuda II DP872 Cockpit By OC

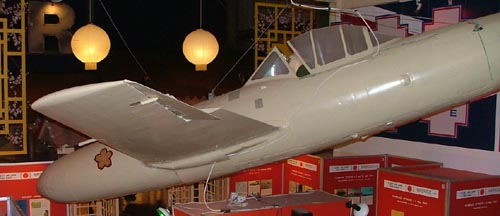

10)Yokosuka Ohka 11-
15-1585 By OC
Japanese suicide aircraft.

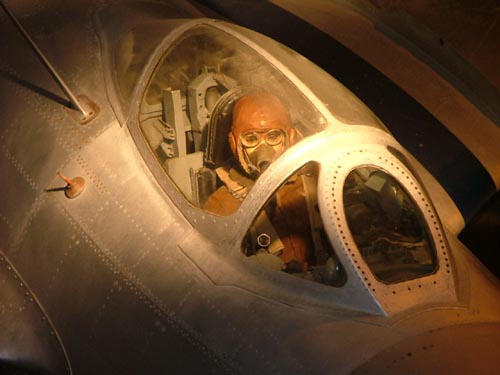

11)Mikoyan MIG-15 bis (Lim-2) 01420
by OC
One of the types the Fleet Air Arm were up
against in Korea.
